Front Fold Grain Carts

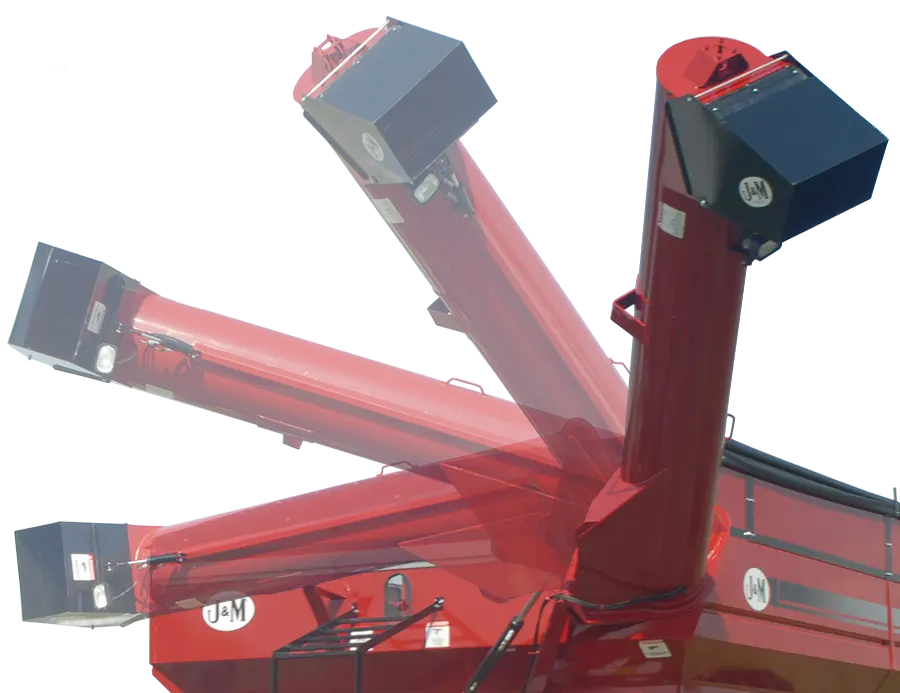

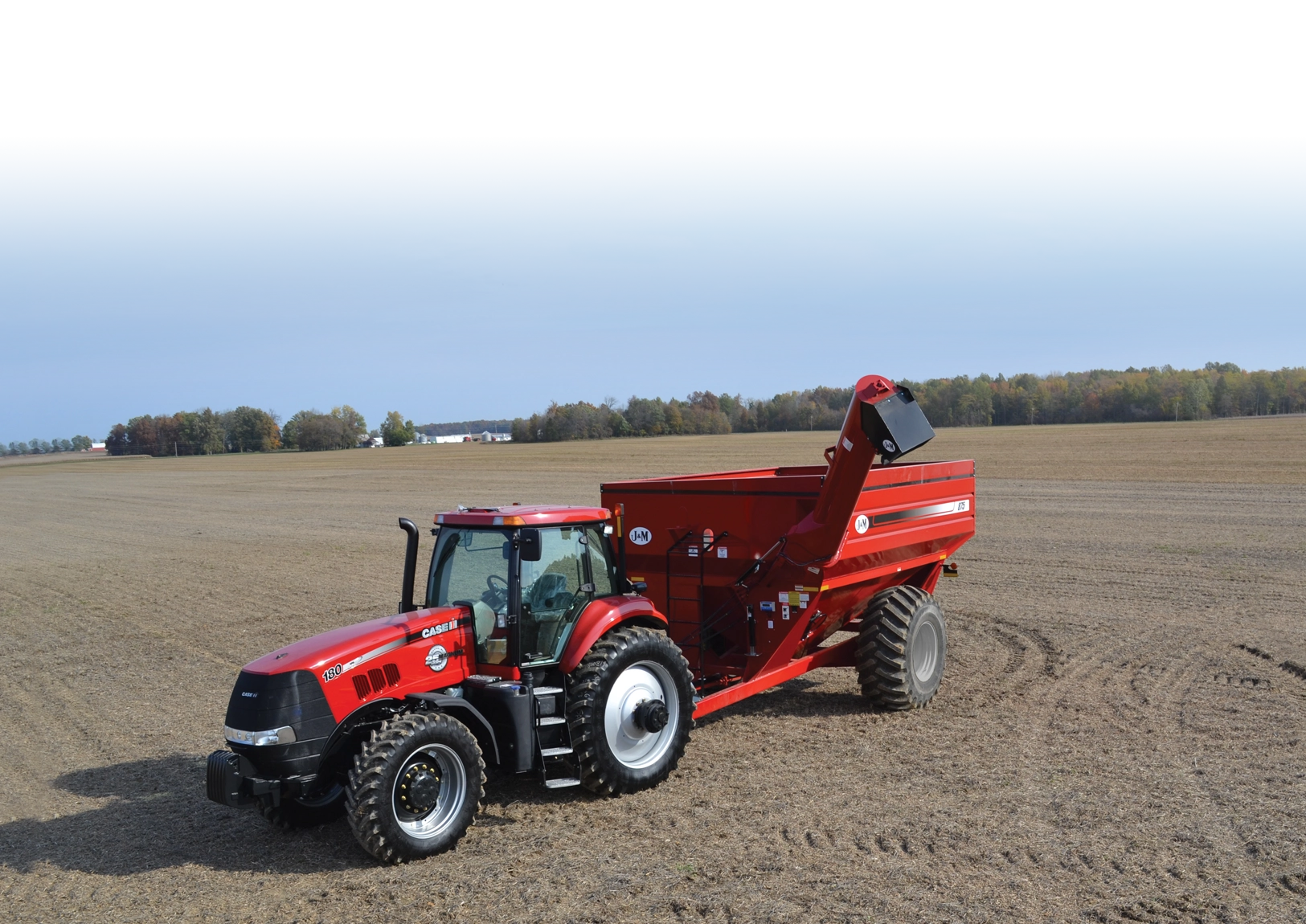

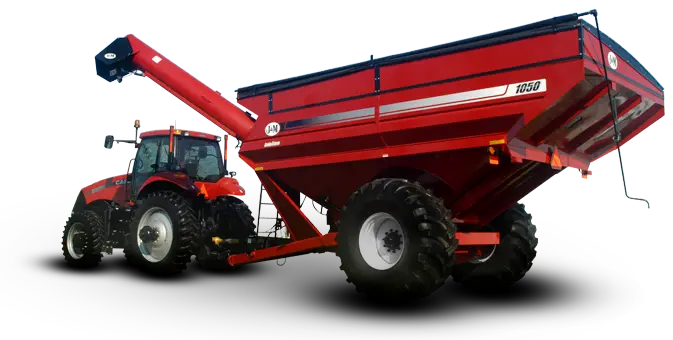

Only J&M’s Unique Front Folding Auger Design Offers Total Visibility
Designed with the operator in mind, the upper auger is positioned in the corner and extends toward the tractor cab, creating a closer, clearer view when unloading grain. The front‑folding auger features a unique design that provides 100% visibility during unloading AND equally important 100% visibility during the folding sequence. Other carts try to use words “corner-like” and "100% visibility" to appear the same, but they don’t compare.

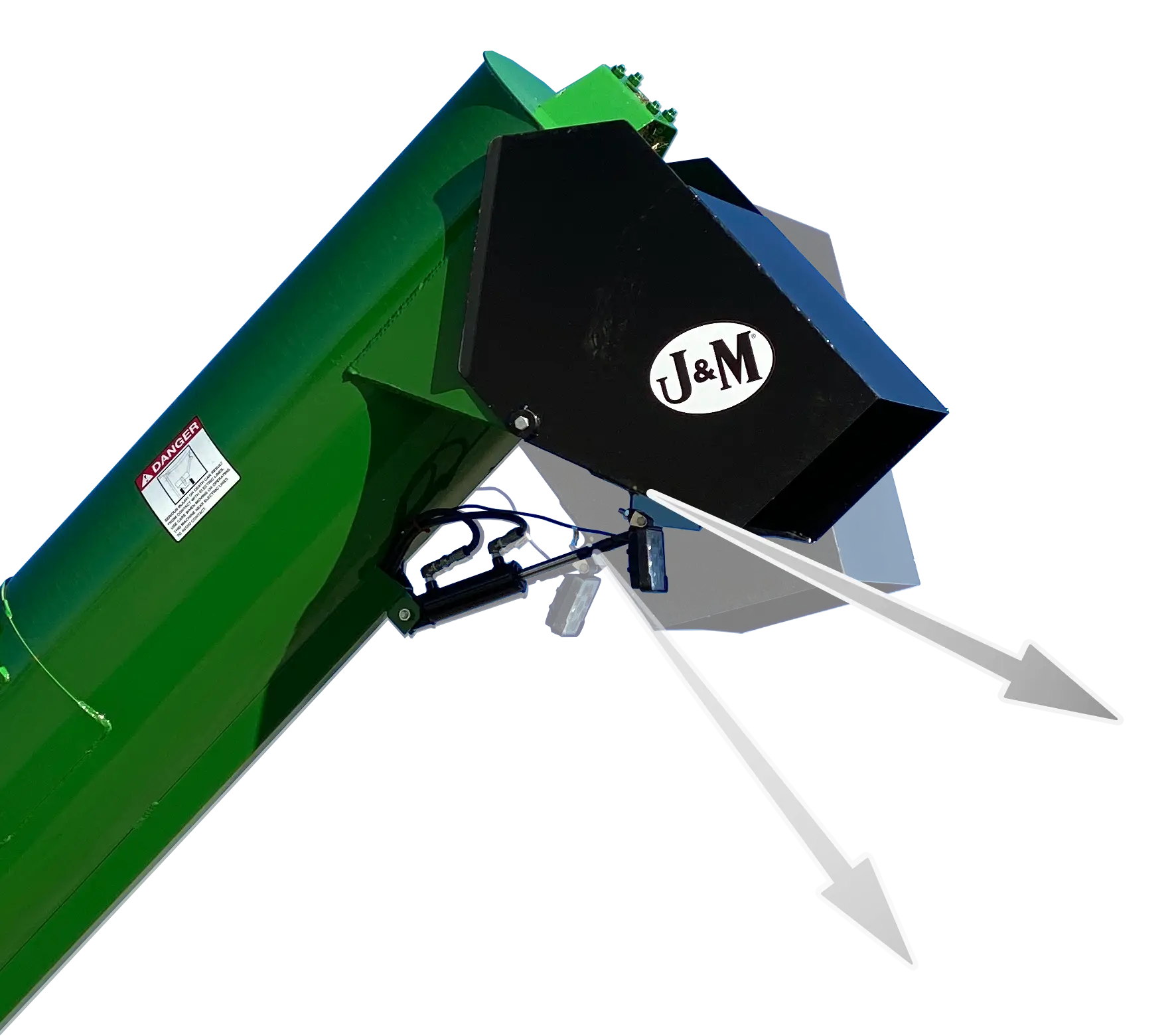

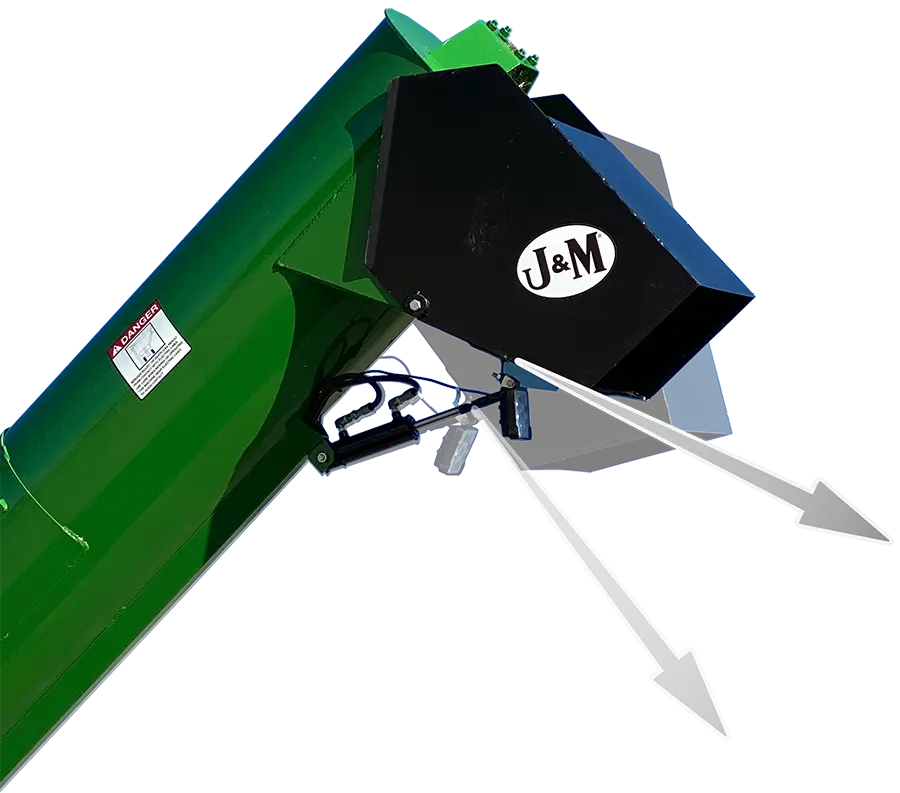

Hydraulic Flow Control Spout

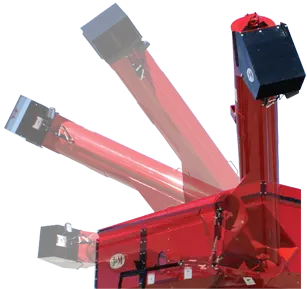

Maximum Upward, Outward and Forward Auger Reach
The patented Hydraulic Flow Control Spout easily corrects auger position on too close or too far away approaches, all from inside the tractor cab. The Hydraulic Flow Control Spout makes topping off the trailer quick and easy for even the most novice operators, allowing you to get back to the field faster and keep the combine rolling.

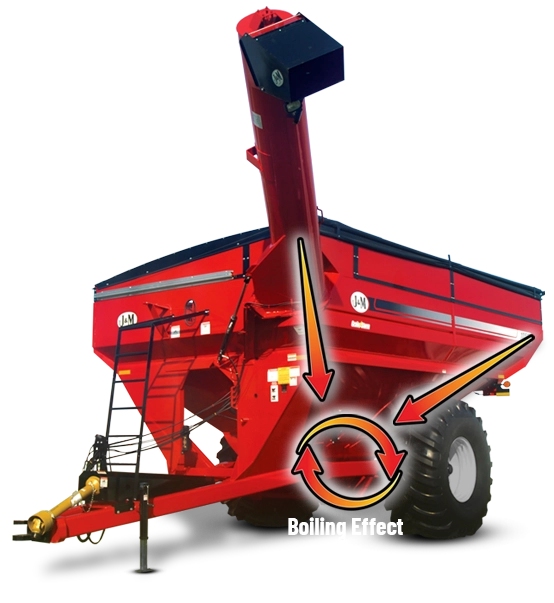

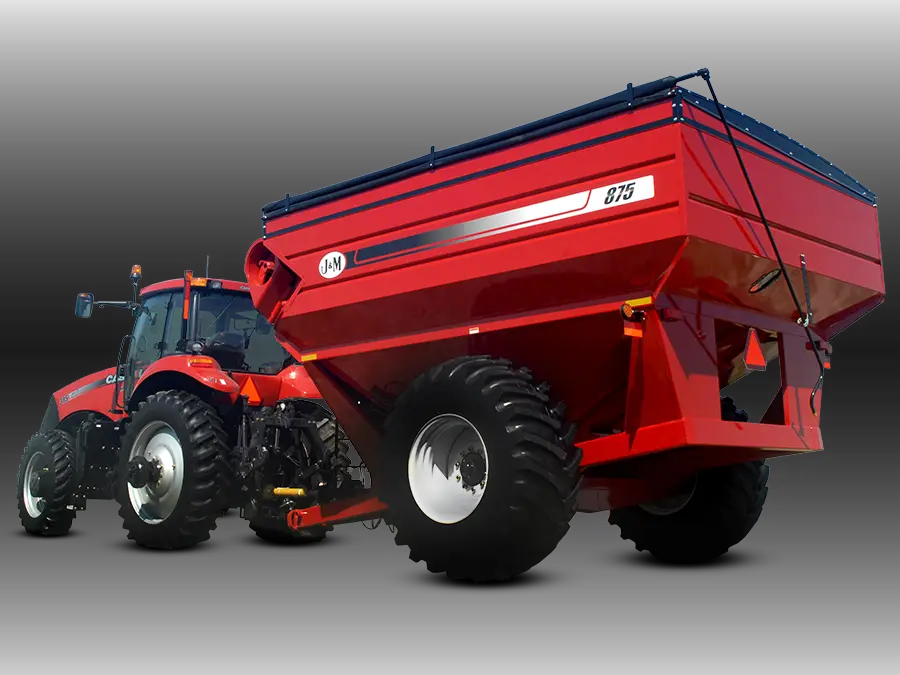

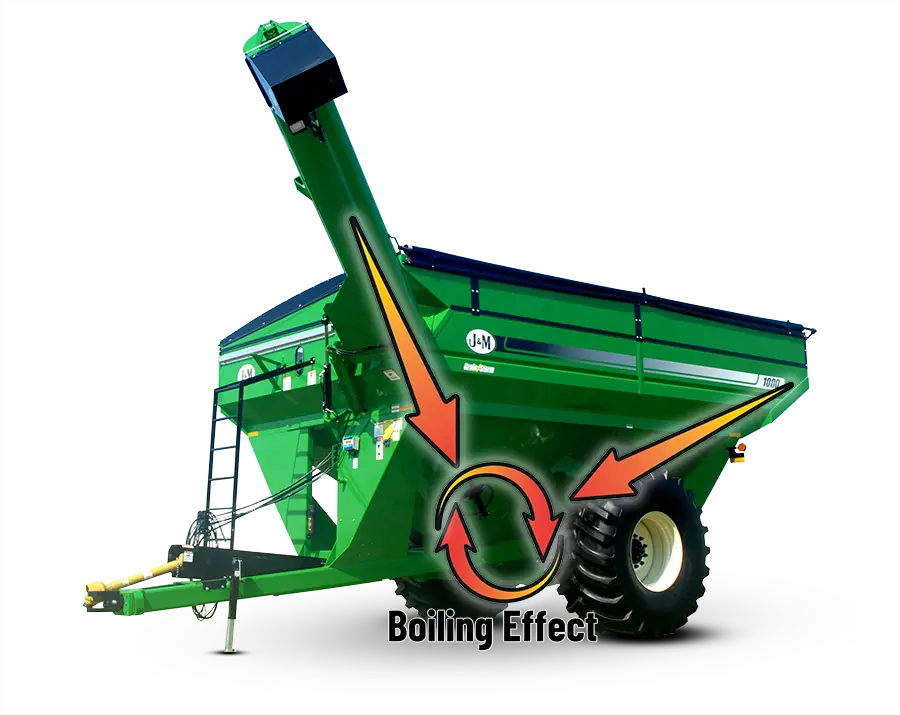

Excellent Cleanout
All J&M grain carts have built a solid reputation for excellent cleanout... even in high moisture grain. The secret is in the tank design, allowing the grain to enter the sump at different speeds. This creates a boiling effect that prevents bridging in high moisture grains.
Standard Features
Computer Balanced Auger

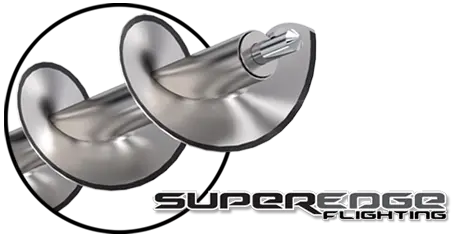

Super-Edge Flighting Balanced to Within One Ounce
All J&M grain carts feature thick flighting with a patented Super-Edge that puts more material where it is needed, on the outer edge. In addition, we reinforce the flighting at critical wear points to increase life and durability.
All augers are balanced to within ONE Ounce. Precision manufacturing ensures a quiet running system that extends overall auger life and performance by reducing vibration to the drive system.

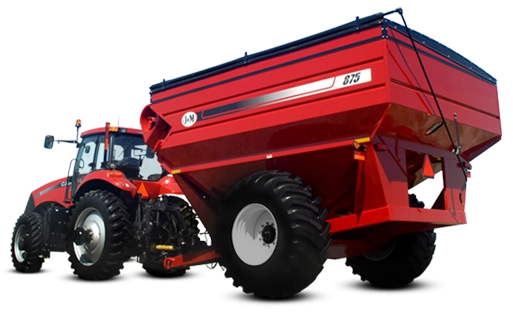

Balanced Tongue Weight
The weight distribution of J&M grain carts are superb compared to competitive carts. The undercarriage axle is positioned to produce a properly balanced tongue weight, reducing the stress and upgrade costs on your tractor draw bar.
V-Truss Axle
Added Strength Prevents Twisting or Bending
Competitor grain cart axles feature small tubular steel that is prone to bending or I-beam designs that are prone to twisting, which puts premature stress on the rest of the cart. J&M’s exclusive V-Truss axles are engineered using heavy-duty tubular steel with a reinforced V-Truss design to resist both bending and twisting, protecting the cart from premature wear and tear. Standard on all single wheel carts.
Heavy-Duty Components
J&M grain carts use only the highest quality, heavy-duty components to keep you on the go, even in the most extreme conditions, year after year.
Miscellaneous Standard Features
- Graphite-coated interior for efficient unload and excellent cleanout
- Hydraulic hose and electric cable organizer
- Bolt-on bottom tang hitch
- Balanced tongue weight
- Jack stand assembly
Front Fold Grain Cart Options
Swivel Ball Hitch New
The tight articulation on a J&M swivel ball hitch eliminates grain cart “slam” which reduces the shock loads on the tractor and grain cart, providing smoother operation for the farmer.
Additional benefits of changing to a J&M swivel ball hitch:
- The large contact area and tight connection increase the life of the tractor drawbar/drawpin, implement hitch and hitch scale bar
- Industry-leading 45° of articulation
- Easy maintenance
- Grease zerks are protected inside of hitch ring
- Ball is removed out of the bottom of the hitch ring by simply rotating a half turn and aligning with installation slot
Scale Options
J&M scale systems allow you to accurately track your crops, safely load the semi within legal limits, and quickly document crop sharing and insurance records. A scale system can also help plan future soil preparations, plantings, and fertilizing needs, ensuring you spend only what you need to reduce your input costs and maximize your bottom line.
Learn more about scale options
Scale Add-on Options
- Auto-Gate Shut-Off Kit for predetermined weight. For use with Digi‑Star GT 560 indicator.
- Thermal Printer for Digi‑Star indicator (Indicator must have serial port)
- Moisture Sensor Kit for J&M iFarm System
- Auto-Gate Shut Off Kit for J&M iFarm System
Patriotic Farmer Edition
To honor the patriotism of the American farmer, upgrade to the Patriotic Farmer Edition with an American flag stripe. A portion of the proceeds generated from the American flag decal will be donated to national nonprofit organizations that provide assistance to farm families who have experienced a major injury, illness or disaster, or mobilize veterans to transition them from military service to farming.
Learn more about Patriotic Farmer Edition grain carts
Roll Tarp Kit
During harvest time, the weather is unpredictable. Keep your valuable commodities safe from the weather by adding an 18 oz. roll tarp. The Glide Right roll tarp system features grooved rollers that roll along the edge of the end caps for consistent tracking and reduced misalignment. Front and rear return springs apply even tension to each end of the tarp to reduce binding and prevent uneven rolling compared to designs that only utilize one spring and cable assembly. An optional electric roll tarp allows you to remotely open and close.
Learn more about roll tarp options
LCD Camera Kit
An LCD camera kit can give you maximum visibility to safely transport from field to field and efficiently receive grain from the combine or unload in the trailer.
Hydraulic Drive Kits In Place of PTO
For tractors without a PTO, a hydraulic drive kit will supply the power to operate the grain cart. Depending on your need, J&M offers a 19 or 21 cu. in. motor.
Miscellaneous Options
- 1⅜"-21 Spline PTO in place of standard 1¾" PTO.
- Safety Chain (one chain) for grain cart.
Classic Front Fold Grain Cart Specs and Dimensions
SPECIFICATIONS
| 525 | 620 | 750 | 875 | 1000 | 1051 | 1151 | 1326 | 1401 | |
|---|---|---|---|---|---|---|---|---|---|
| Vertical Auger | 14" | 14" | 18" | 18" | 20" | 22" | 22" | 22" | 22" |
| Unload Time | 185+ bu/min | 185+ bu/min | 400+ bu/min | 400+ bu/min | 500+ bu/min | 600+ bu/min | 600+ bu/min | 600+ bu/min | 600+ bu/min |

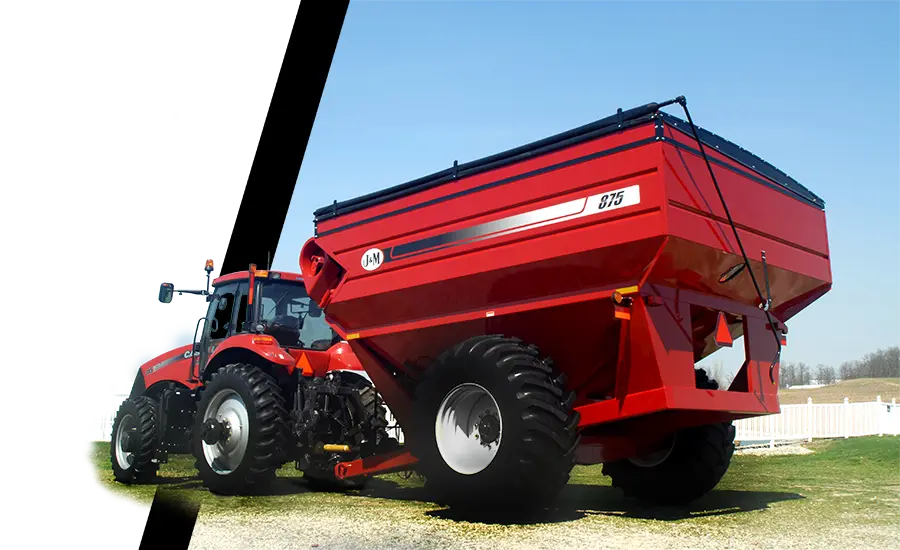

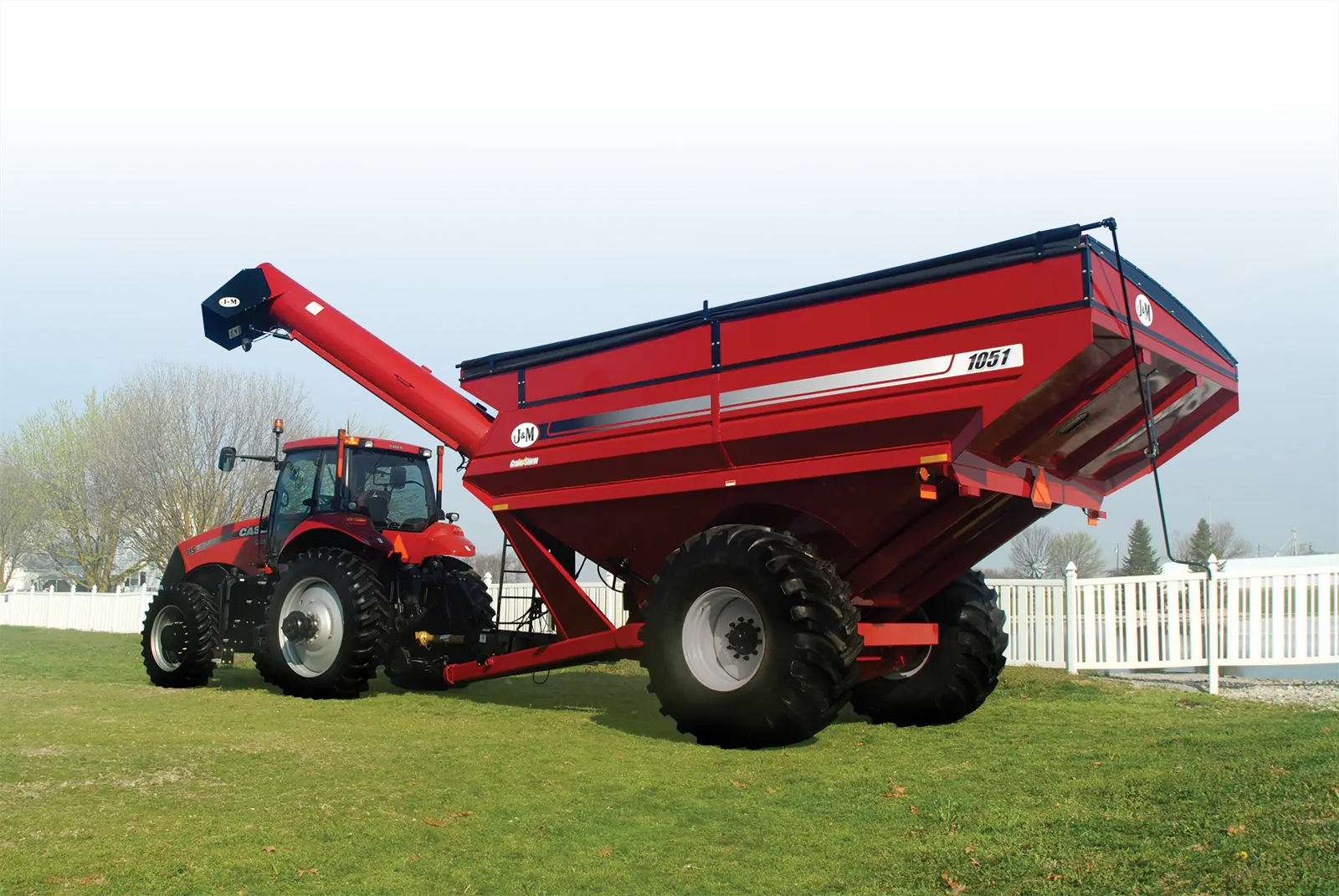

SINGLE WHEELS
| 525 | 620 | 750 | 875 | 1000 | 1051 | 1151 | 1326 | 1401 | |
|---|---|---|---|---|---|---|---|---|---|
| Capacity | 525 Bushels | 620 Bushels | 750 Bushels | 875 Bushels | 1,025 Bushels | 1,050 Bushels | 1,150 Bushels | 1,325 Bushels | 1,400 Bushels |
| Wheels (2) | 21×32 or 27×32 |
21×32 or 27×32 |
21×32, 27×32 or 18×42 |
21×32, 27×32 or 30×32 |
30×32, 31×32, 32×36 or 44×32 |
30x32, 31x32, 32x36 or 44x32 |
30x32, 32x36 or 44x32 |
44x32 | 44x32 |
| Tires (2) | 24.5×32, 30.5×32 or IF800/60R32 |
24.5×32, 30.5×32 or IF800/60R32 |
24.5×32, 30.5×32, IF800/60R32, IF520/85R42 or 520/85R42 |
24.5×32, 30.5×32, IF800/60R32 or 900/60R32 |
900/60R32, 35.5×32, 1050/50R32 or IF1250/50R32 |
900/60R32, 35.5x32, 1050/50R32 or IF1250/50R32 |
900/60R32, 1050/50R32 or IF1250/50R32 |
IF1050/50R32 or IF1250/50R32 |
IF1250/50R32 |
| Hubs (2) | 10 Bolt | 10 Bolt | 10 Bolt | 10 Bolt | 10 Bolt | 10 or 20 Bolt | 10 or 20 Bolt | 10 or 20 Bolt | 10 or 20 Bolt |
| Spindles (2) | 4½" Diameter | 4½" Diameter | 4½" Diameter | 4½" Diameter | 4½" Diameter | 6" Diameter | 6" Diameter | 6" Diameter | 6" Diameter |
| Tongue Weight Empty Loaded |
950 lbs 1,950 lbs |
1,000 lbs 2,100 lbs |
1,150 lbs 2,850 lbs |
1,275 lbs 3,800 lbs |
2,900 lbs 4,200 lbs |
2,900 lbs 4,200 lbs |
2,400 lbs 4,800 lbs |
2,400 lbs 4,800 lbs |
2,400 lbs 4,800 lbs |
| Total Weight (approx.) | 7,034 lbs | 7,330 lbs | 9,606 lbs | 10,186 lbs | 14,078 lbs | 14,172 lbs | 14,517 lbs | 17,168 lbs | 17,592 lbs | Model 525, 620, 750 and 875 weighed with 30.5x32 tires. Model 1000, 1051 and 1151 weighed with 900/60R32 tires. Model 1326 and 1401 weighed with 1250/50R32 tires. |
WALKING TANDEM DUAL WHEELS
| 1051 | 1151 | 1326 | 1401 | |
|---|---|---|---|---|
| Capacity | 1,025 Bushels | 1,125 Bushels | 1,300 Bushels | 1,375 Bushels |
| Wheels (4) | 16×42 or 18×42 | 16×42 or 18×42 | 18×42 | 18×42 |
| Tires (4) | 480/80R42, 520/85R42 or IF520/85R42 | 480/80R42, 520/85R42 or IF520/85R42 | 520/85R42 or IF520/85R42 | 520/85R42 or IF520/85R42 |
| Hubs (4) | 10 or 20 Bolt | 10 or 20 Bolt | 10 or 20 Bolt | 10 or 20 Bolt |
| Spindles (4) | 4½" Diameter | 4½" Diameter | 4½" Diameter | 4½" Diameter |
| Tongue Weight Empty Loaded |
2,900 lbs 4,200 lbs |
2,400 lbs 4,800 lbs |
2,400 lbs 4,800 lbs |
2,400 lbs 4,800 lbs |
| Total Weight (approx.) | 18,291 lbs | 18,426 lbs | 19,283 lbs | 19,707 lbs | Weighed with 520/85R42 lug tires (set of 4). |

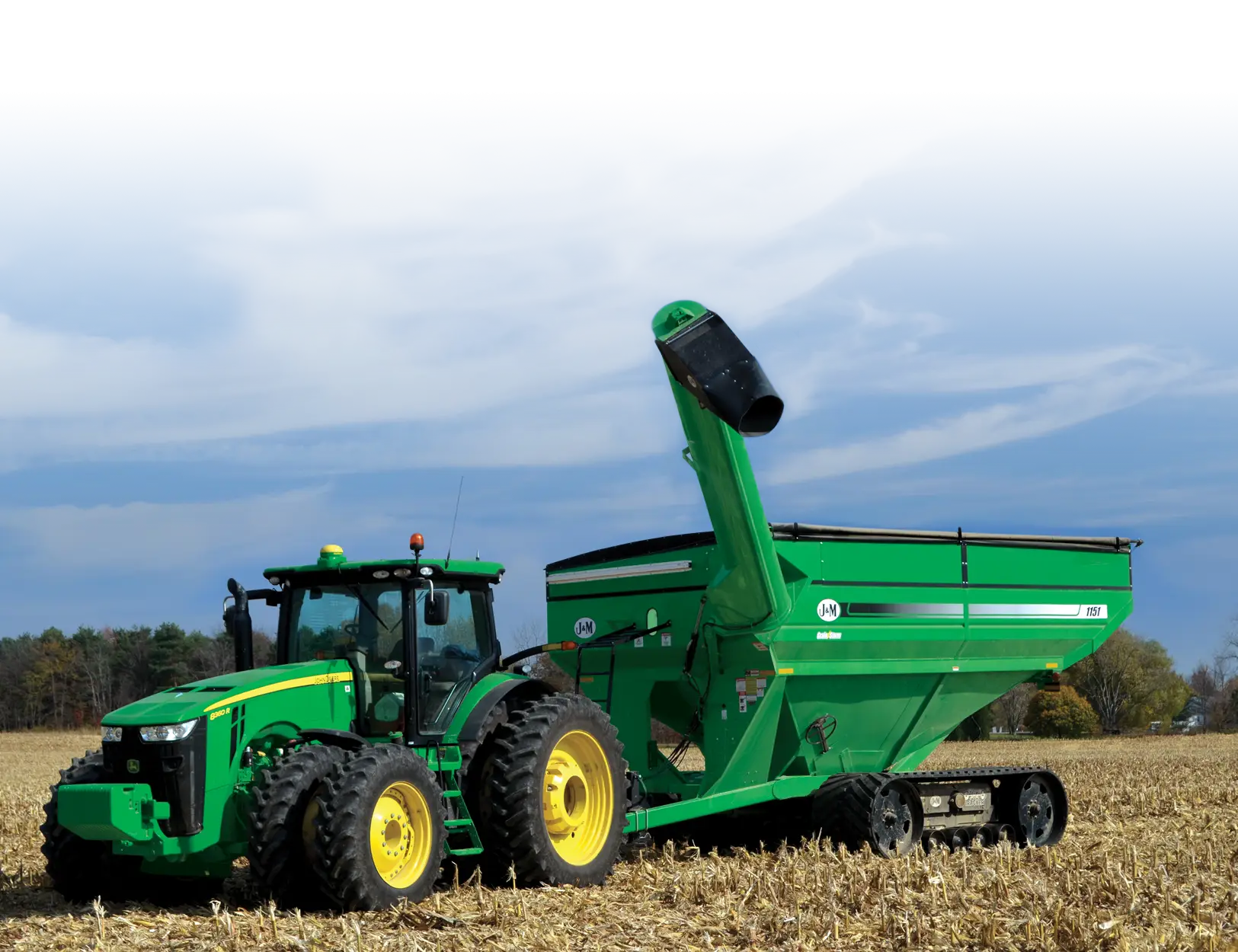

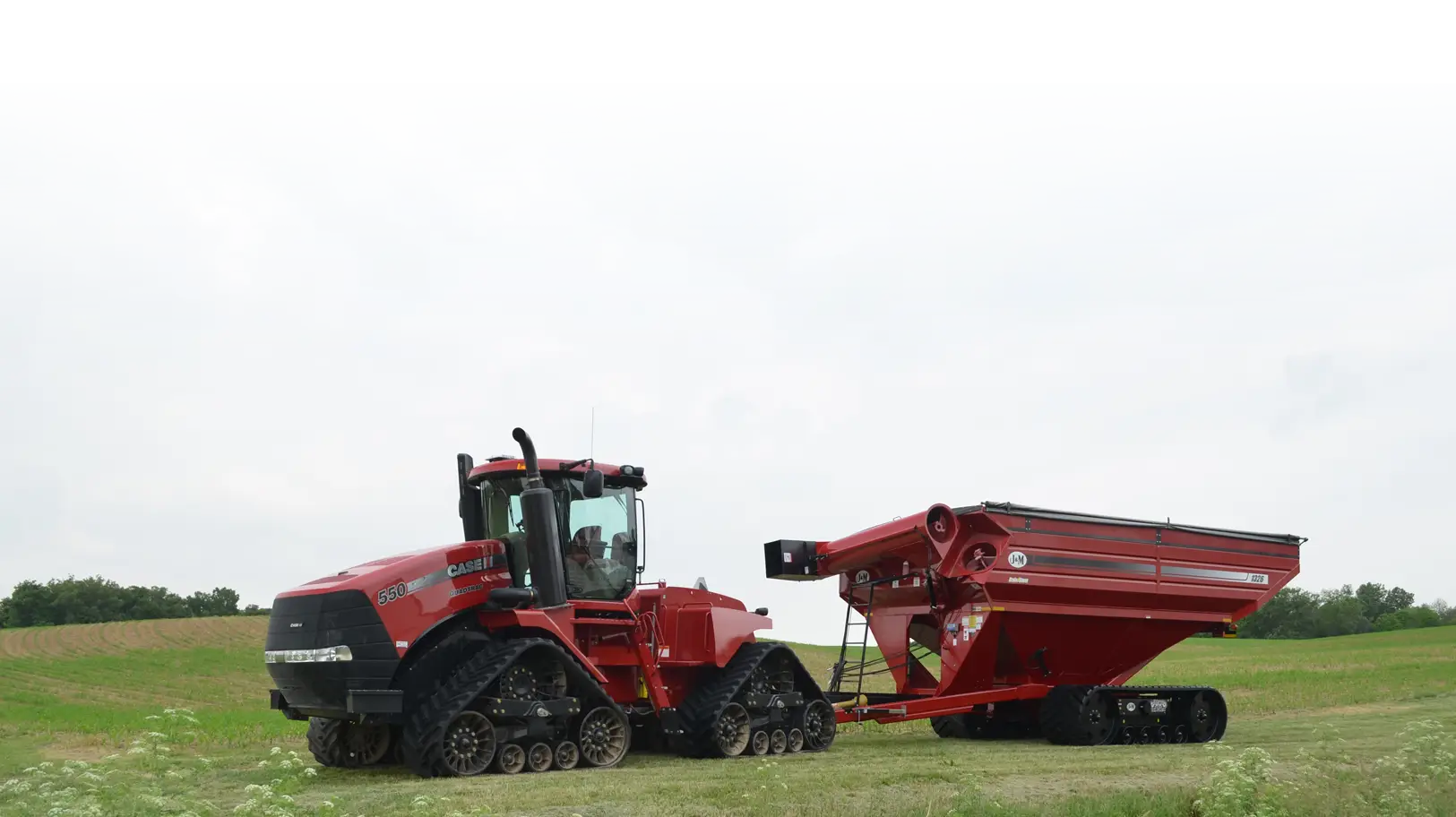

TRACKS
| 1051 | 1151 | 1326 | 1401 | |
|---|---|---|---|---|
| Capacity | 1,075 Bushels | 1,175 Bushels | 1,350 Bushels | 1,425 Bushels |
| Total Weight (approx.) with V4 LT's V4's STX-36 STX-46 |
18,870 lbs 21,170 lbs 22,670 lbs 26,833 lbs |
19,005 lbs 21,305 lbs 22,805 lbs 26,968 lbs |
N/A 22,196 lbs 23,696 lbs 27,859 lbs |
N/A 22,260 lbs 24,120 lbs 28,283 lbs |
| Compaction Rate with V4 LT's V4's STX-36 STX-46 |
14.0 psi 10.0 psi 9.3 psi 7.4 psi |
15.0 psi 10.7 psi 9.9 psi 7.9 psi |
N/A 11.7 psi 11.1 psi 8.8 psi |
N/A 12.7 psi 11.7 psi 9.2 psi |

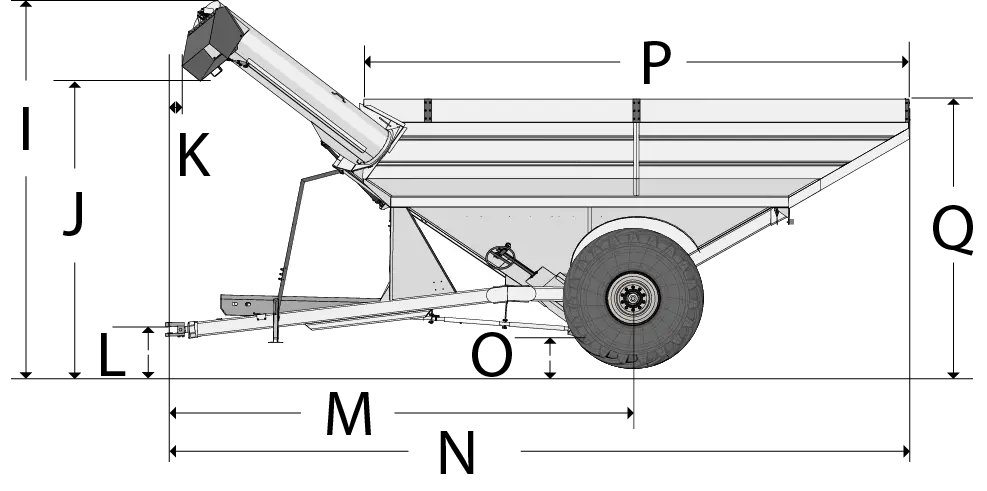

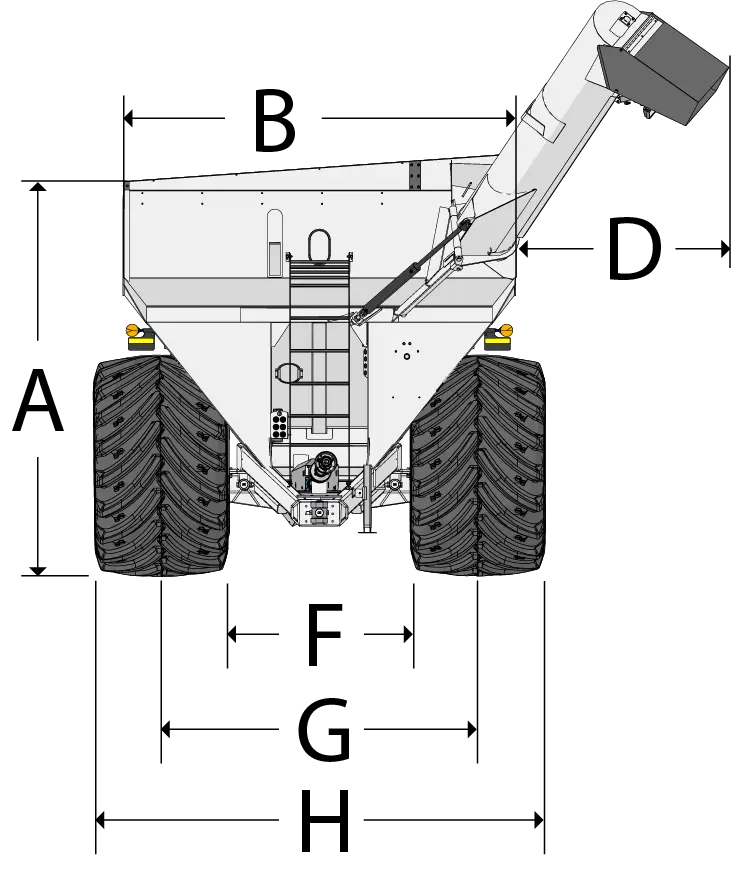

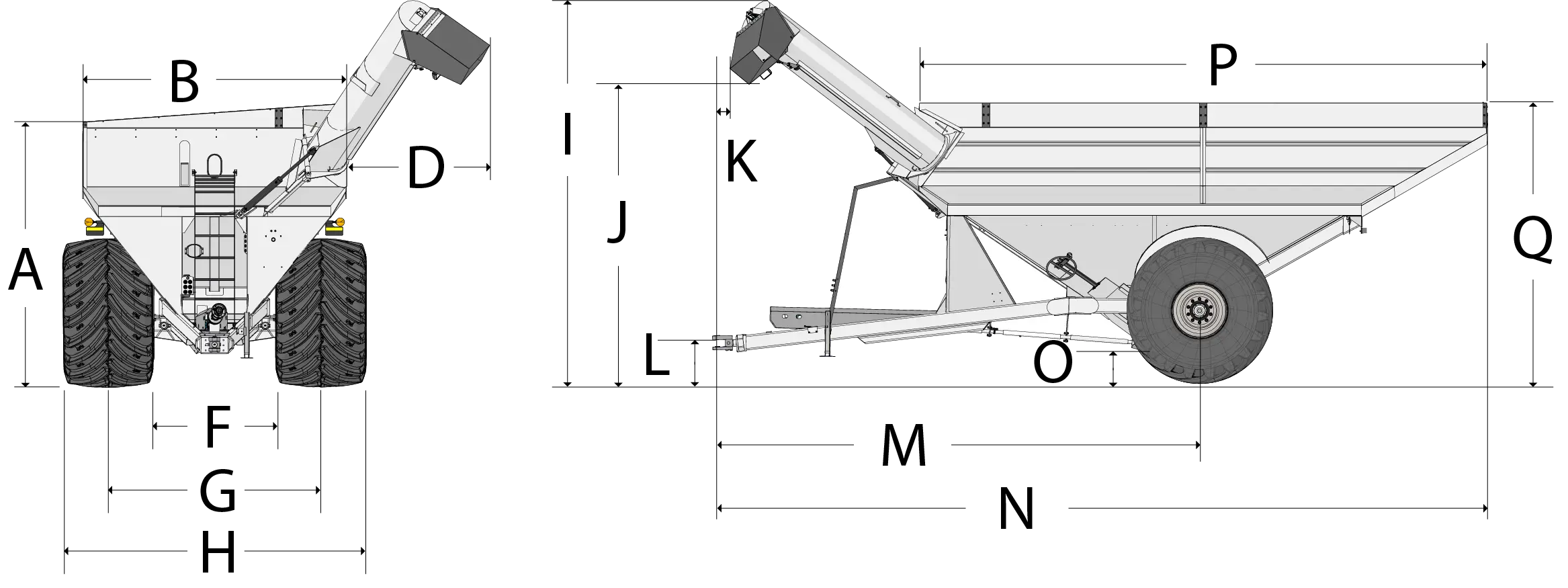

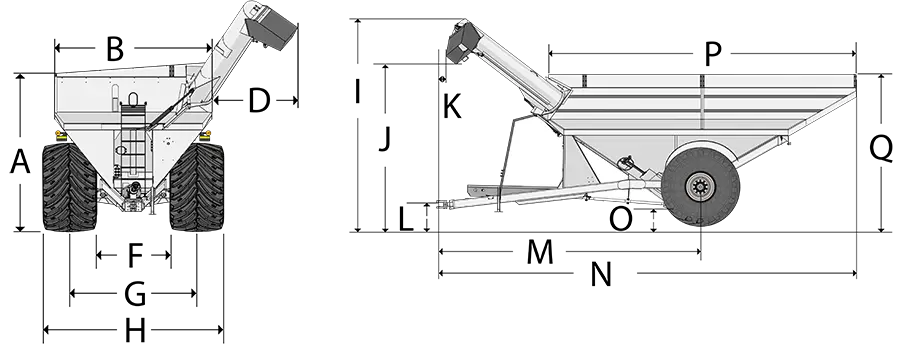

DIMENSIONS – SINGLE WHEELS
| 525 | 620 | 750 | 875 | 1000 | 1051 | 1151 | 1326 | 1401 | |
|---|---|---|---|---|---|---|---|---|---|
| A | 1'-5" | 1'-5" | 1'-7" | 1'-7" | 1'-6" | 1'-6" | 1'-6" | 1'-6" | 1'-6" |
| B | 12'-10" | 12'-10" | 12'-9" | 13'-6" | 18'-4" | 18'-10" | 18'-10" | 12'-2" | 12'-2" |
| C | 6'-5" | 6'-5" | 6'-5" | 6'-8" | 8'-6" | 8'-6" | 8'-6" | 8'-6" | 8'-6" |
| D | 12'-0" | 13'-2" | 14'-0" | 16'-0" | 22'-0" | 22'-0" | 22'-0" | 25'-6" | 25'-6" |
| E | 18'-1" | 18'-10" | 19'-1" | 20'-11" | 28'-10" | 29'-7" | 29'-7" | 34'-5" | 34'-5" |
| F | 11'-11" | 11'-11" | 12'-6" | 12'-2" | 13'-4" | 13'-0" | 13'-0" | 12'-8" | 12'-8" |
| G | 7'-5" | 7'-5" | 7'-0" | 7'-0" | 6'-4" | 6'-4" | 6'-4" | 6'-4" | 6'-4" |
| H | 11'-2" | 11'-10" | 11'-8" | 11'-10" | 12'-0" | 12'-3" | 12'-5" | 12'-10" | 12'-10" |
| I | 1'-2" | 1'-6" | 1'-5" | 1'-5" | 1'-7" | 1'-5" | 1'-5" | 1'-5" | 1'-5" |
| J | 10'-0"– 12'-0" |
10'-0"– 12'-0" |
10'-0"– 12'-0" |
10'-0"– 12'-0" |
10'-0" | 10'-0" | 10'-0" | 10'-0" | 10'-0" |
| K | 10'-0" | 11'-10" | 11'-9" | 11'-9" | 11'-9" | 11'-9" | 11'-9" | 11'-9" | 11'-9" |
| L | 10'-8" | 11'-4" | 11'-4" | 11'-6" | 10'-11" | 11'-3" | 11'-11" | 11'-11" | 12'-7" |
| *525-875 Measured with 20” hitch height and 30.5x32 tires. | |||||||||
| *1000-1151 Measured with 20” hitch height. Models 1000, 1051, and 1151 measured with 900/60R32 tires. | |||||||||
| *1326-1401 Measured with 20” hitch height. Models 1326 and 1401 measured with IF12520/50R32 tires. | |||||||||
DIMENSIONS – WALKING TANDEM DUAL WHEELS
| 1051 | 1151 | 1326 | 1401 | |
|---|---|---|---|---|
| A | 1'-6" | 1'-6" | 1'-6" | 1'-6" |
| B | 18'-10" | 18'-10" | 21'-9" | 21'-9" |
| C | 8'-6" | 8'-6" | 8'-6" | 8'-6" |
| D | 22'-0" | 22'-0" | 25'-6" | 25'-6" |
| E | 29'-7" | 29'-7" | 34'-5" | 34'-5" |
| F | 12'-10" | 12'-10" | 12'-6" | 12'-6" |
| G | 6'-4" | 6'-4" | 6'-4" | 6'-4" |
| H | 12'-2" | 12'-4" | 12'-4" | 12'-4" |
| I | 1'-5" | 1'-5" | 1'-5" | 1'-5" |
| J | 6'-0" | 6'-0" | 6'-0" | 6'-0" |
| K | 12'-0" | 12'-0" | 12'-0" | 12'-0" |
| L | 11'-9" | 11'-9" | 11'-9" | 11'-9" |
| M | 11'-3" | 11'-10" | 11'-6" | 12'-1" | *Measured with 20" hitch height and 520/85R42 tires. |
DIMENSIONS – TRACKS
| 1051 | 1151 | 1326 | 1401 | |
|---|---|---|---|---|
| A | 1'-6" | 1'-6" | 1'-6" | 1'-6" |
| B | 12'-2" | 12'-2" | 12'-2" | 12'-2" |
| C | 8'-6" | 8'-6" | 8'-6" | 8'-6" |
| D | 22'-0" | 22'-0" | 25'-6" | 25'-6" |
| E | 29'-7" | 29'-7" | 34'-5" | 34'-5" |
| F | 13'-2" | 13'-2" | 13'-0" | 13'-0" |
| G | 6'-4" | 6'-4" | 6'-4" | 6'-4" |
| H | 12'-1" | 12'-4" | 12'-2" | 12'-2" |
| I | 1'-5" | 1'-5" | 1'-5" | 1'-5" |
| J | 9'-0" | 9'-0" | 9'-0" | 9'-0" |
| K | 12'-0" | 12'-0" | 12'-0" | 12'-0" |
| L | 11'-9" | 11'-9" | 11'-9" | 11'-9" |
| M | 11'-0" | 11'-8" | 11'-4" | 11'-11" | *Measured with 20” hitch height. |
Compaction Rate
| 525 | 620 | 750 | 875 | ||
|---|---|---|---|---|---|
| 24.5x32 Lug (12 ply) | 24 | 28 | 34 | N/A | Single Wheels |
| 24.5x32 Diamond (12 ply) | 24 | 28 | 34 | N/A | |
| 24.5x32 Diamond (16 ply) | N/A | N/A | N/A | 39 | |
| IF520/85R42 Lug (169 LI) | N/A | N/A | 37 | N/A | |
| 520/85R42 Lug (169 LI) | N/A | N/A | 40 | N/A | |
| 30.5x32 Lug (16 ply) | 20 | 23 | 28 | 31 | |
| 30.5x32 Lug (18 ply) | 18 | 21 | 26 | 29 | |
| IF800/60R32 Diamond (181B LI) | 18 | 21 | 25 | 29 | |
| 900/60R32 Lug (176 LI) | N/A | N/A | 24 | 27 |
| 1000 | 1051 | 1151 | 1326 | 1401 | ||
|---|---|---|---|---|---|---|
| 900/60R32 Lug (176 LI) | 33 | 34 | N/A | N/A | N/A | Single Wheels |
| 900/60R32 Lug (191 LI) | N/A | N/A | 36 | N/A | N/A | |
| 35.5x32 Diamond (20 ply) | 30 | 31 | N/A | N/A | N/A | |
| 1050/50R32 Lug (185 LI) | 28 | 28 | 30 | N/A | N/A | |
| IF1050/50R32 Lug (195 LI) | N/A | N/A | N/A | 58 | N/A | |
| IF1250/50R32 Lug (195 LI) | 24 | 25 | 30 | N/A | N/A | |
| IF1250/50R32 Lug (201 LI-Alliance) | N/A | N/A | N/A | 46 | 46 | |
| IF1250/50R32 Lug (201 LI-Firestone) | N/A | N/A | N/A | 39 | 42 | |
| 480/80R42 Lug (154 LI-Firestone) | N/A | 29 | 29 | N/A | N/A | Walking Tandem Dual Wheels |
| 480/80R42 Lug (169 LI-Alliance) | N/A | 64 | 64 | N/A | N/A | |
| IF520/85R46 Lug (169 LI-Firestone) | N/A | 35 | 35 | 35 | 35 | |
| 520/85R46 Lug (169 LI-Alliance) | N/A | 50 | 50 | 50 | 50 | |
| V4 LT Tracks (36"×106") | N/A | 14.0 | 15.0 | N/A | N/A | Tracks |
| V4 Tracks (36"×139") | N/A | 10.0 | 10.7 | 11.7 | 12.7 | |
| STX2 Trax (36"×150") | N/A | 9.3 | 9.9 | 11.1 | 11.7 | |
| STX2 Trax (46"×155") | N/A | 7.4 | 7.9 | 8.8 | 9.2 |
