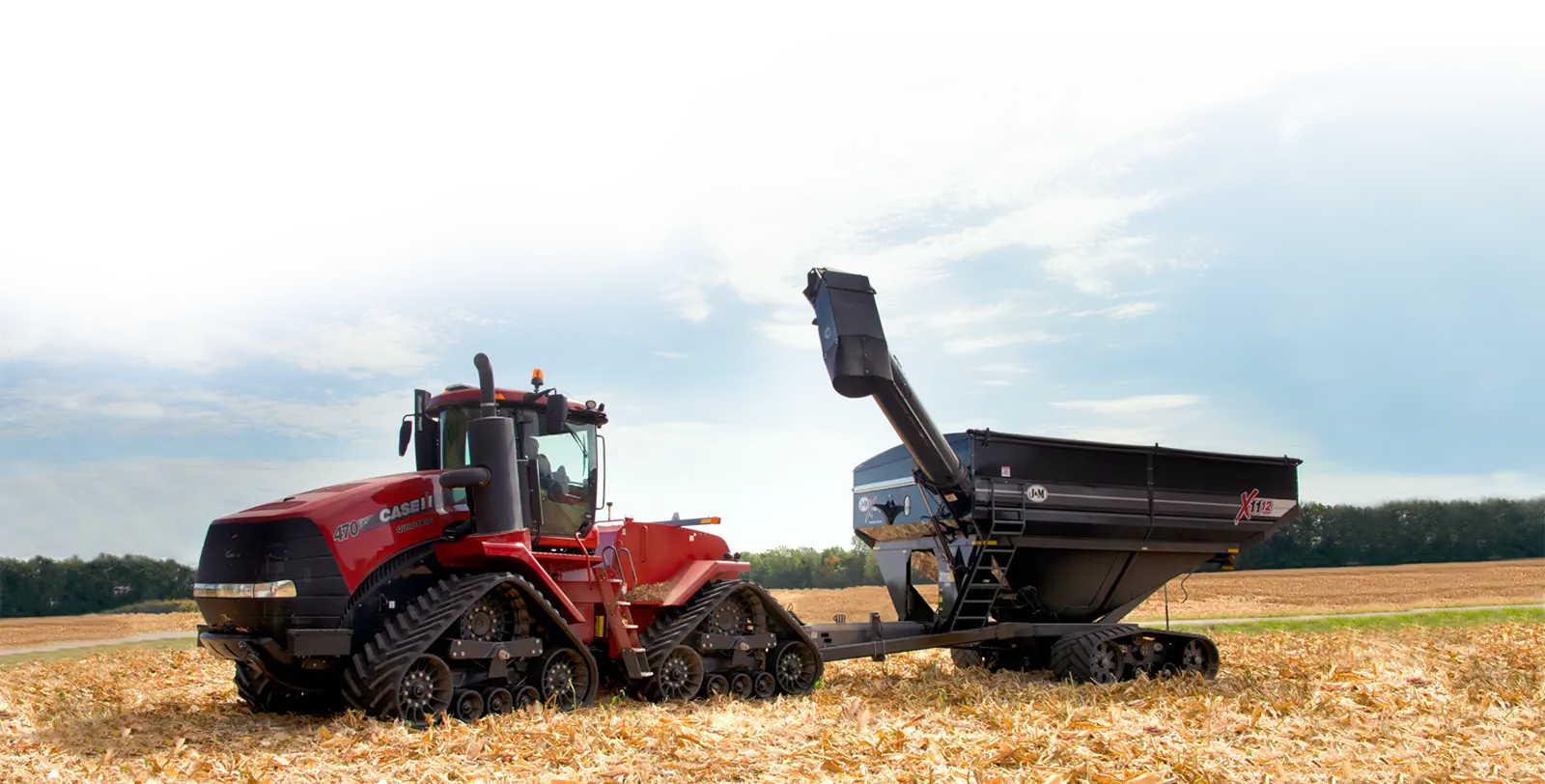

X-Tended Reach Grain Carts

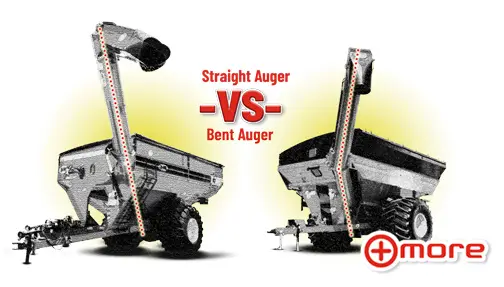

Straight vs Bent Auger Designs

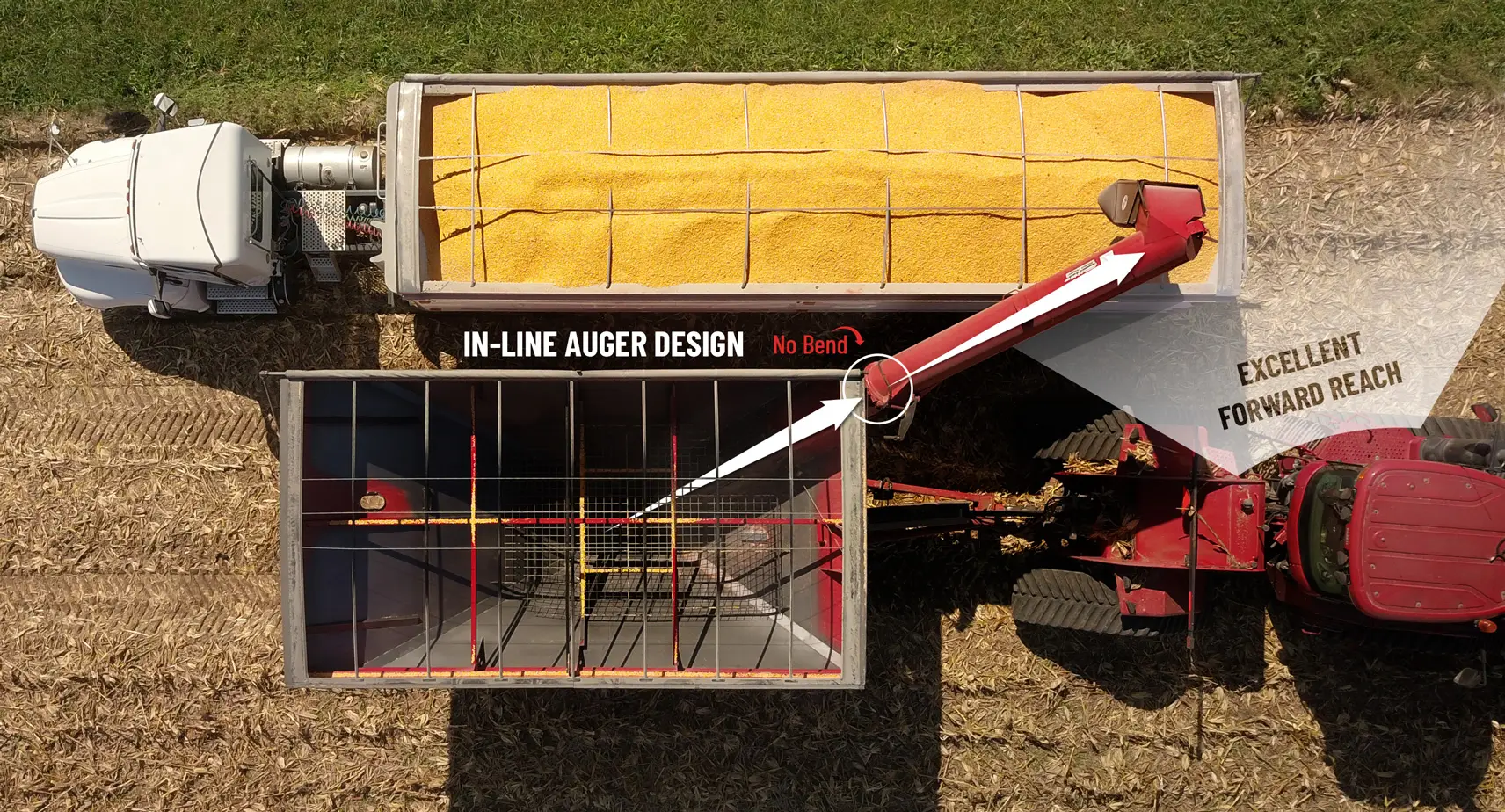

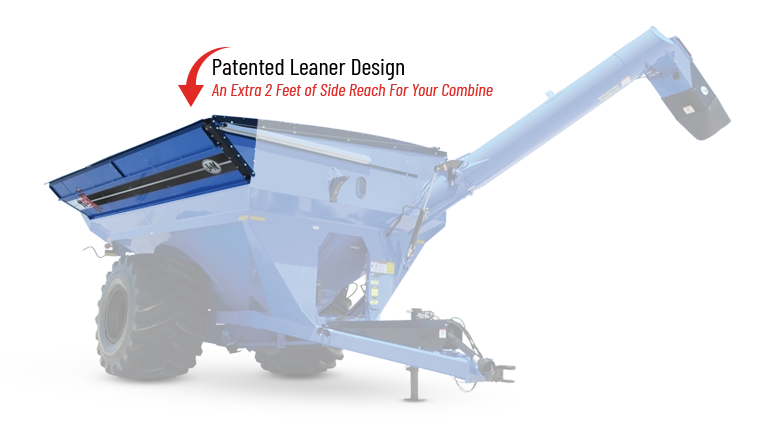

J&M’s X-Tended Reach grain carts feature a straight auger design that provides equivalent side reach and greater forward reach compared to competitor’s bent auger design.
J&M’s in-line auger design is much more efficient and reliable compared to an offset auger design. No U‐joint coupling or cushion arm required. Grain is not redirected, ensuring better transfer of grain and auger cleanout. The in‐line auger design eliminates the need for costly and problematic U-joint and soft-start type connectors, allowing the grain to quickly travel straight from lower to upper auger.

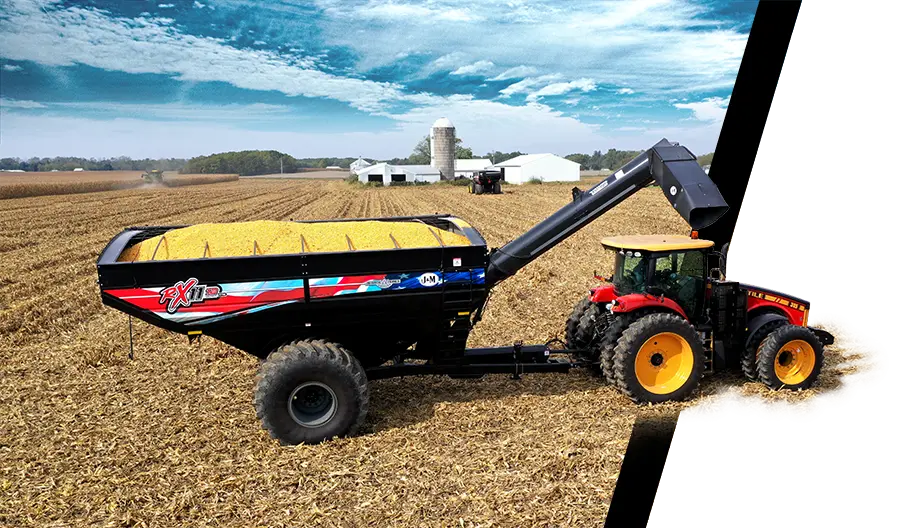

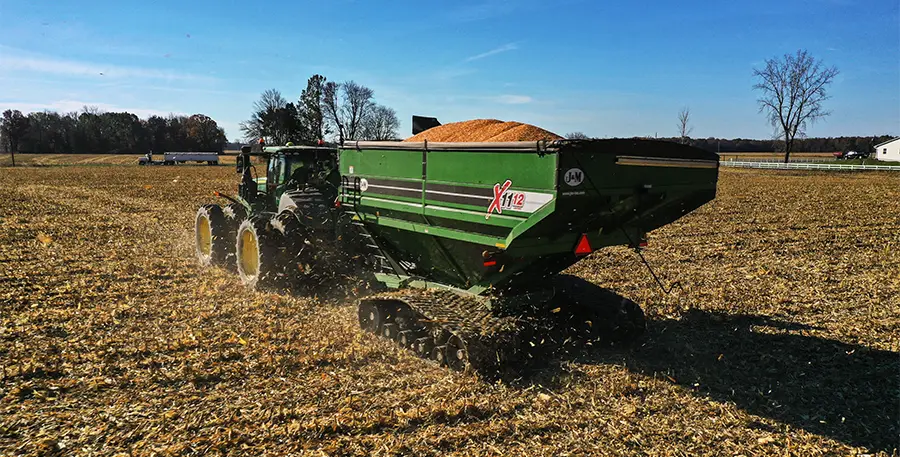

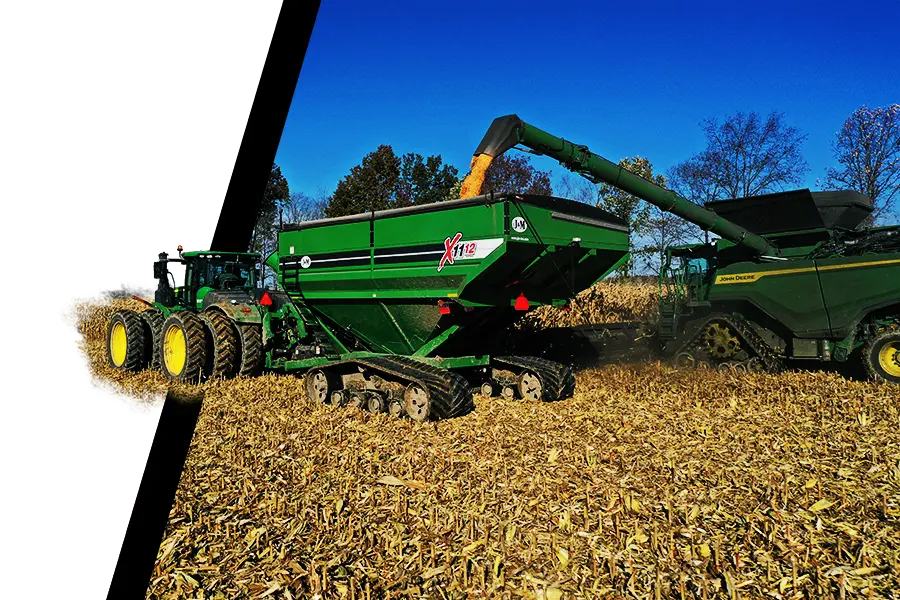

12 Series X-Tended Reach Grain Carts Models 812 • 1012 • 1112 • 1312 • 1412
Maximum Upward, Outward and Forward Auger Reach
Since our first patented front-folding corner auger cart was introduced in the late 1980s, we’ve been designing and building innovative grain carts that help farmers maximize their operating efficiency. The X-Tended Reach Series of grain carts continues this trend, having recently been awarded another U.S. patent for its unique auger design. The 12 Series X-Tended Reach design offers the operator 100% visibility during unloading and equally important 100% visibility during the folding sequence. But the rigid upper auger has been X-Tended for even greater outward, upward and forward reach, all while folding diagonally along the front of the cart for compact storage.
22 Series X-Tended Reach Grain Carts Models 1122 • 1222 • 1522
Maximum Upward, Outward and Forward Auger Reach AND
Maximum Reach for the Combine Auger
The 22 Series X-Tended Reach grain carts offer the same maximum upward, outward and forward auger reach as the 12 Series, but also includes J&M’s patented Leaner tank design. The low side of the grain cart features a bolt-on tank design that extends toward the combine auger for additional two feet, giving both the combine and grain cart operators more room to navigate in the field without overlap. Your combine auger just gained two feet of side reach, making harvesting easier, especially with wider heads.
Standard Features
Patented X-Tended Reach Folding Auger
with Telescoping Hydraulic Flow Control Spout

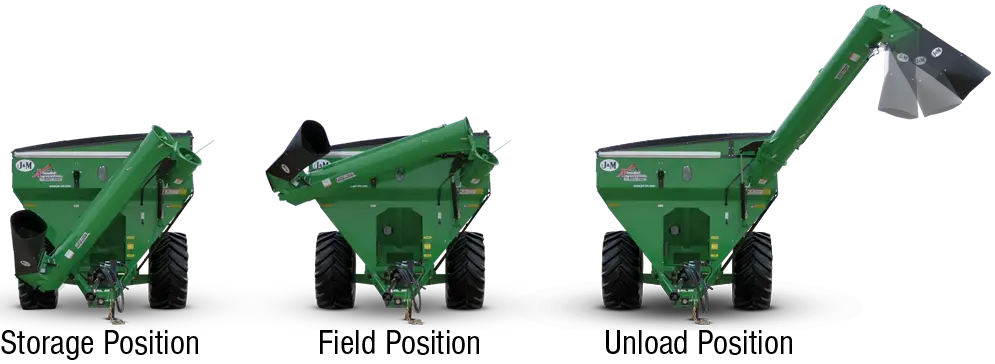

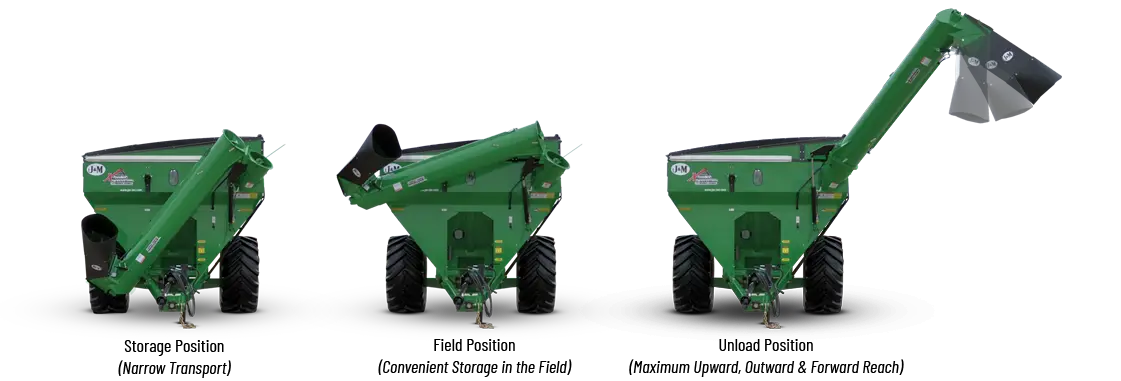

The upper auger utilizes a three position upper auger design. The “Storage Position” keeps the upper auger within the footprint of the tires/tracks for narrow storage and transport. The “Field Position” keeps stress off the auger hinge during field operations and keeps the spout out of the mud and dirt. The “Unload Position” extends the auger to give the grain cart operator maximum upward, outward and forward reach during unloads.
The patented hydraulic flow control spout allows the operator to precisely place grain across the trailer. The Side-Shooter design positions the spout perpendicular to the trailer so all four corners can be easily filled!
The telescoping spout features a three part design that extends outward for maximum side reach and retracts when in the downward position to maintain maximum unloading height. Each of the three sections can be easily removed or added to offer multiple combinations of height and reach to fit your particular unloading need.

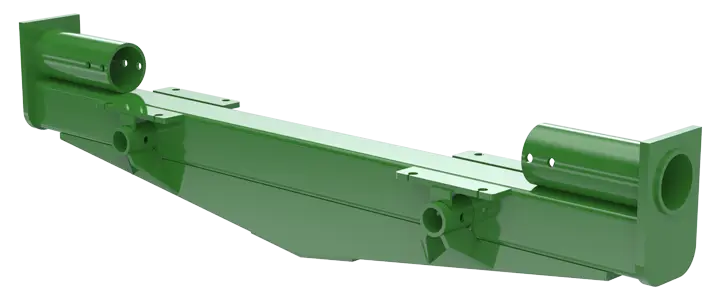

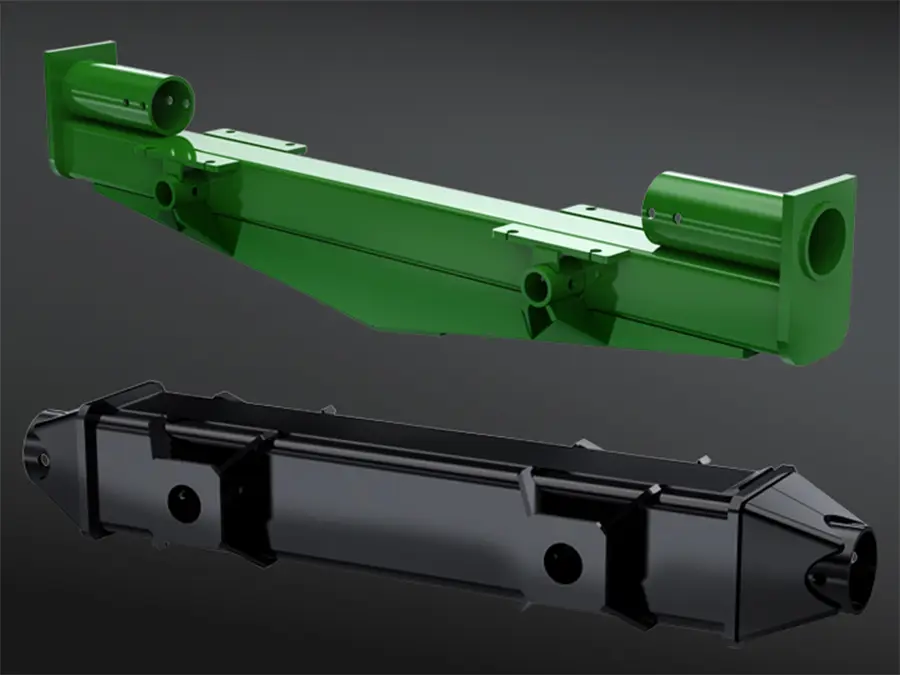

V-Truss Axle
Added Strength Prevents Twisting or Bending
Competitor grain cart axles feature small tubular steel that is prone to bending or I-beam designs that are prone to twisting, which puts premature stress on the rest of the cart. J&M’s exclusive V-Truss axles are engineered using heavy-duty tubular steel with a reinforced V-Truss design to resist both bending and twisting, protecting the cart from premature wear and tear. Standard on all single wheel carts.

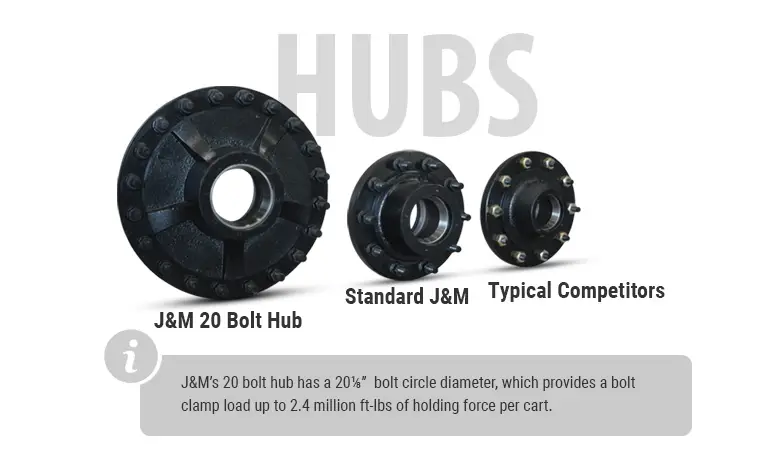

Heavy-Duty Components

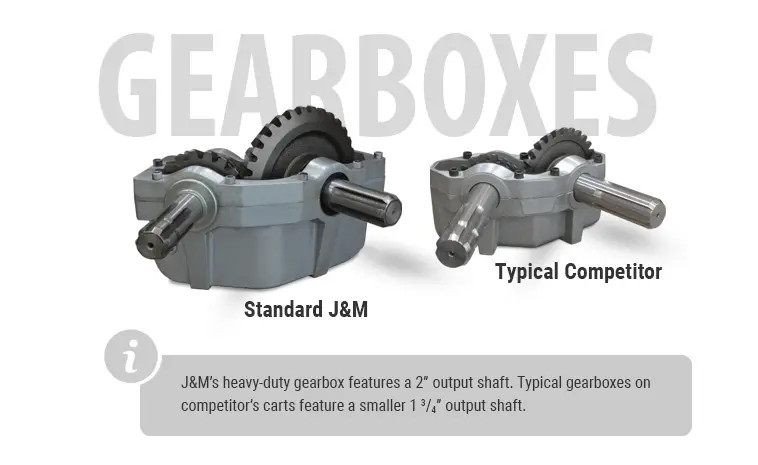

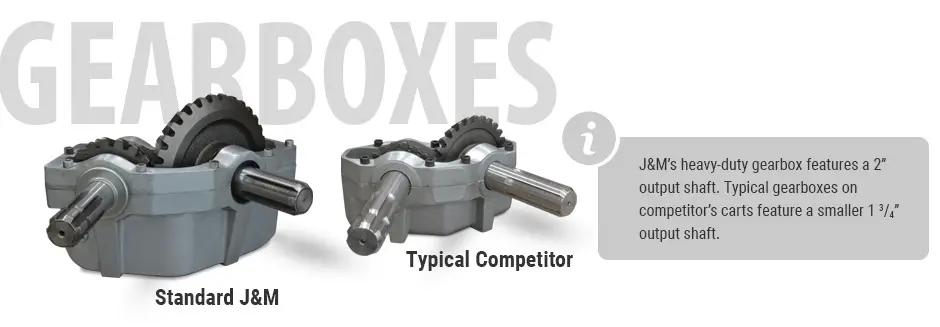

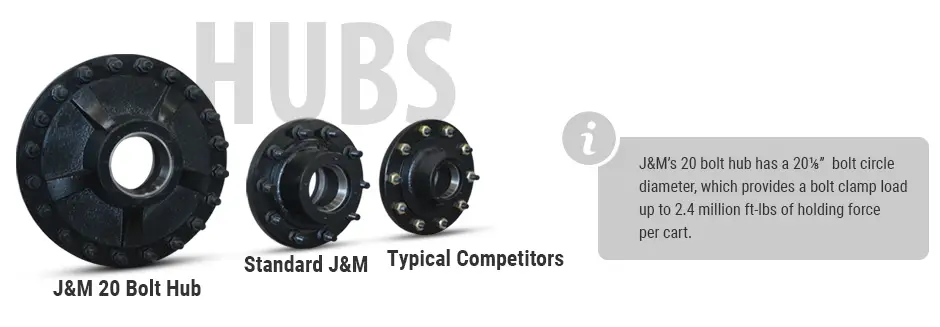

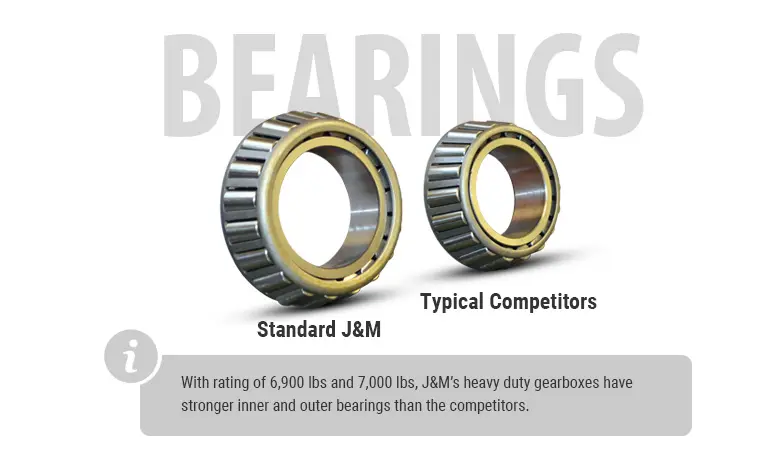

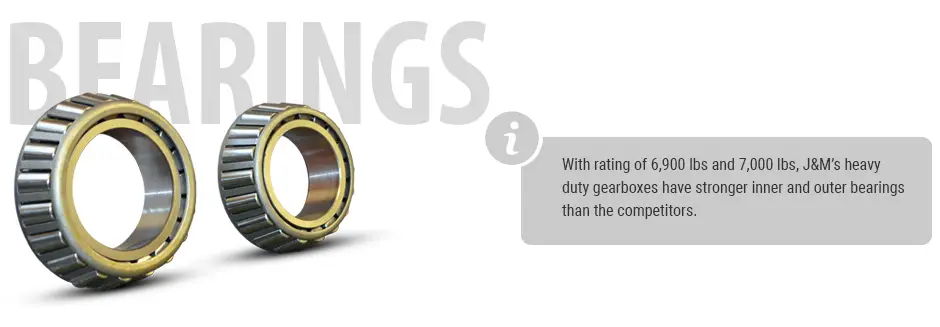

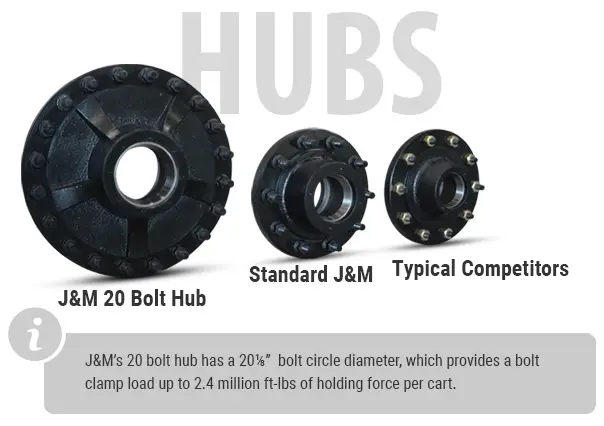

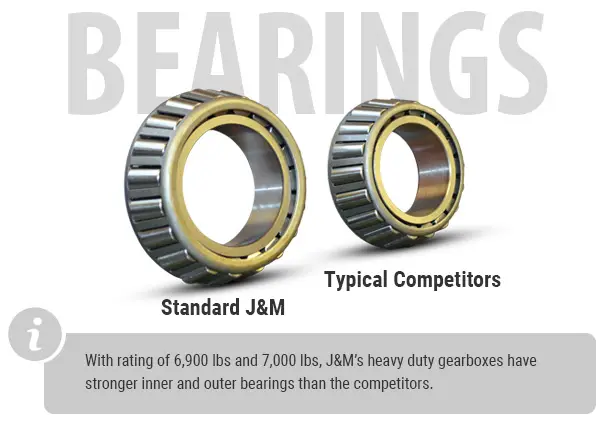

J&M grain carts use only the highest quality, heavy-duty components to keep you on the go, even in the most extreme conditions, year after year.

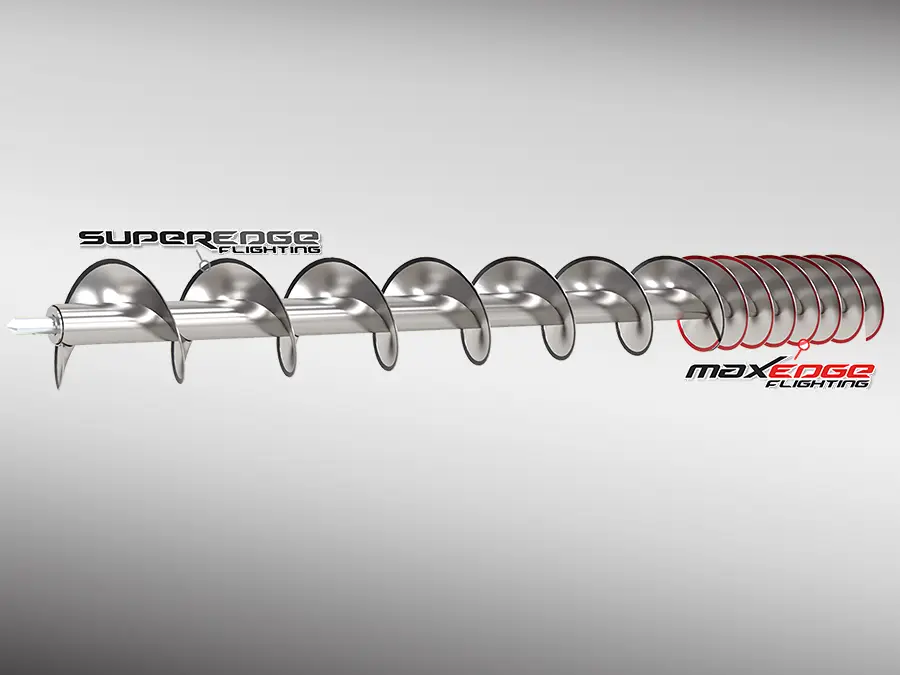

Computer Balanced Bullet Augers with Reinforced Flighting

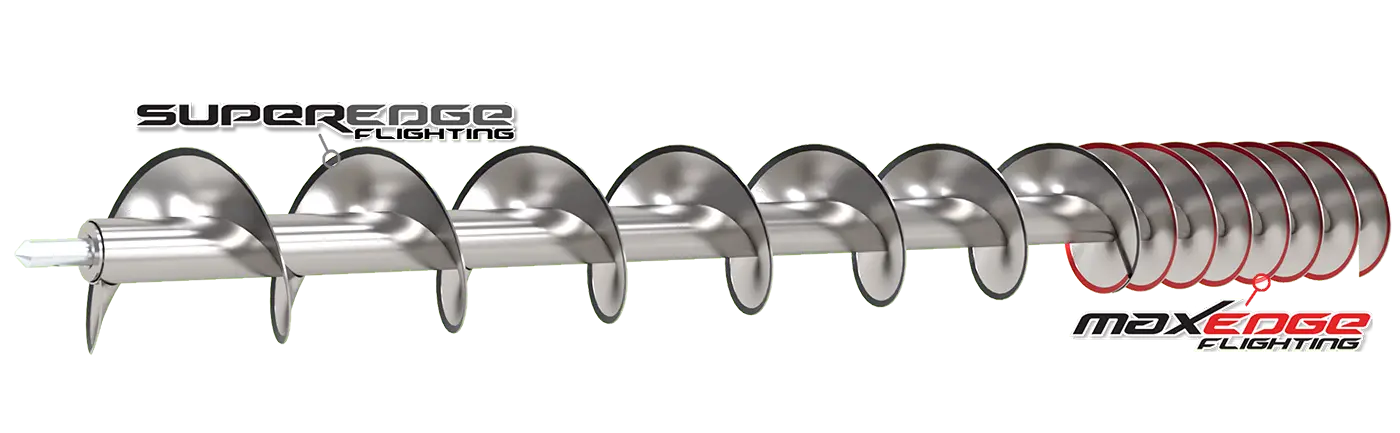

Computer balanced bullet augers (within 1 oz.) with reinforced flighting at critical wear points and 7/16” Max Edge Flighting with 7” or 10” pitch at intake for maximum unload speed and durability.

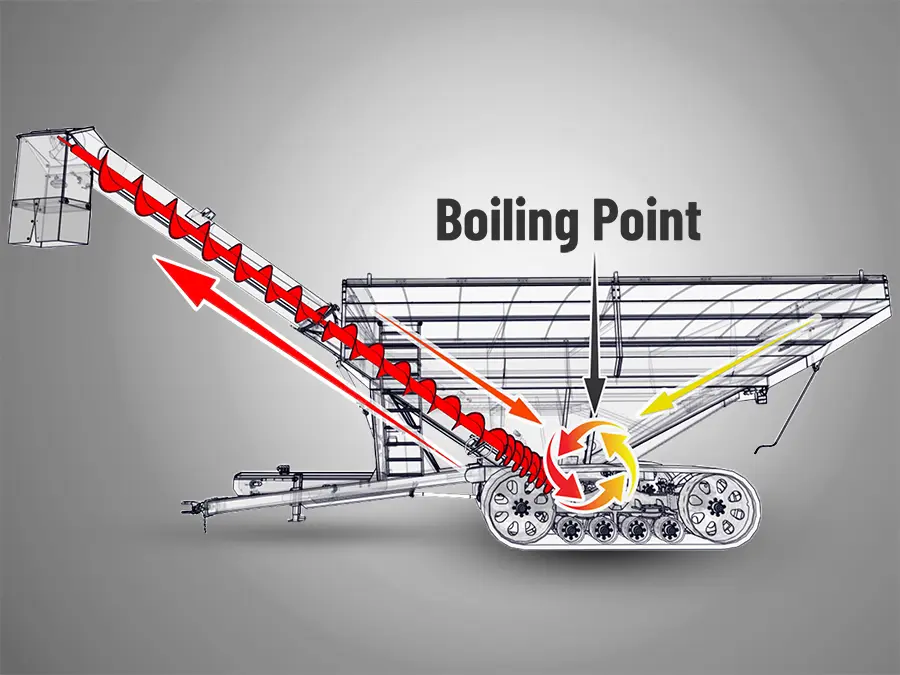

Excellent Cleanout

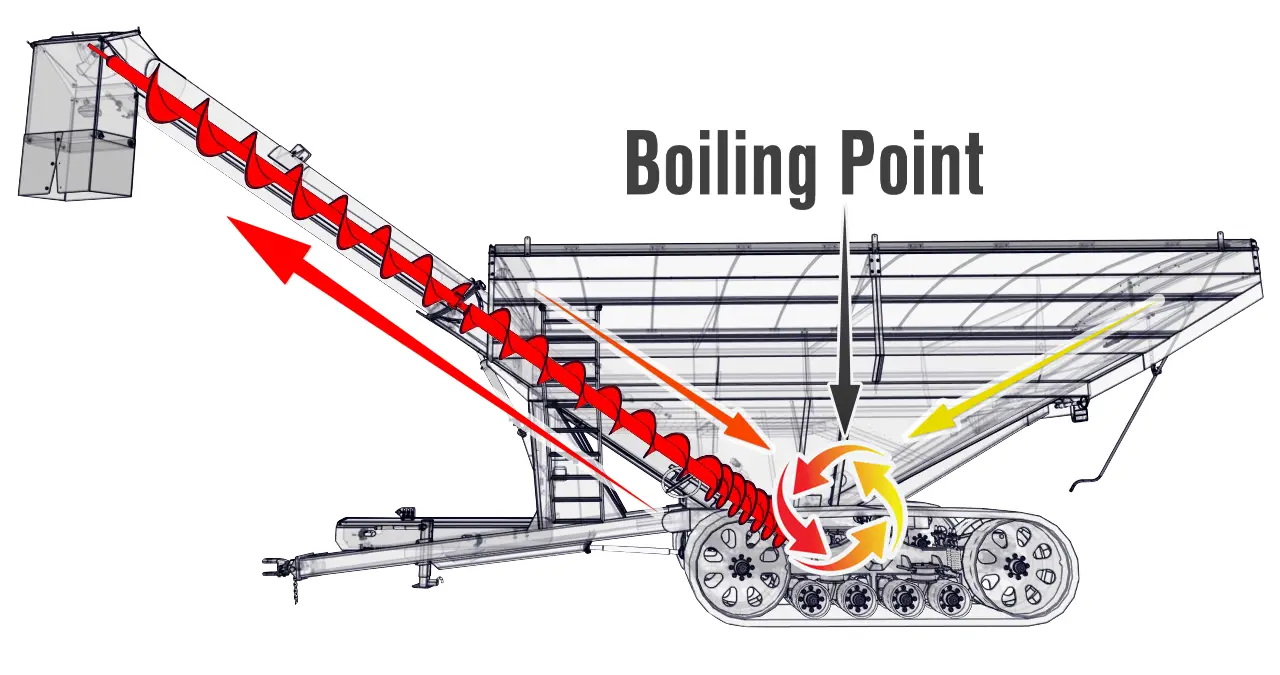

All J&M grain carts have built a solid reputation for excellent cleanout... even in high moisture grain. The secret is in the tank design, allowing the grain to enter the sump at different speeds. This creates a boiling effect that prevents bridging in high moisture grains.
Miscellaneous Standard Features
- Patented Side-Shooter spout design
- Easy-access side mounted inspection ladder
- Unique auger rest lever design for easy transition between storage and field positions
- Over-running, automatic cut-out clutch for maximum durability
- Heavy-duty jack stand assembly
- Graphite-coated interior for efficient unload and excellent cleanout
- Hydraulic hose and electric cable organizer
- Bolt-On bottom tang hitch
- Balanced tongue weight
Miscellaneous Standard Features
- Patented Side-Shooter spout design
- Easy-access side mounted inspection ladder
- Unique auger rest lever design for easy transition between storage and field positions
- Over-running, automatic cut-out clutch for maximum durability
- Heavy-duty jack stand assembly
- Graphite-coated interior for efficient unload and excellent cleanout
- Hydraulic hose and electric cable organizer
- Bolt-On bottom tang hitch
- Balanced tongue weight
Patented X‑Tended Reach Folding Auger

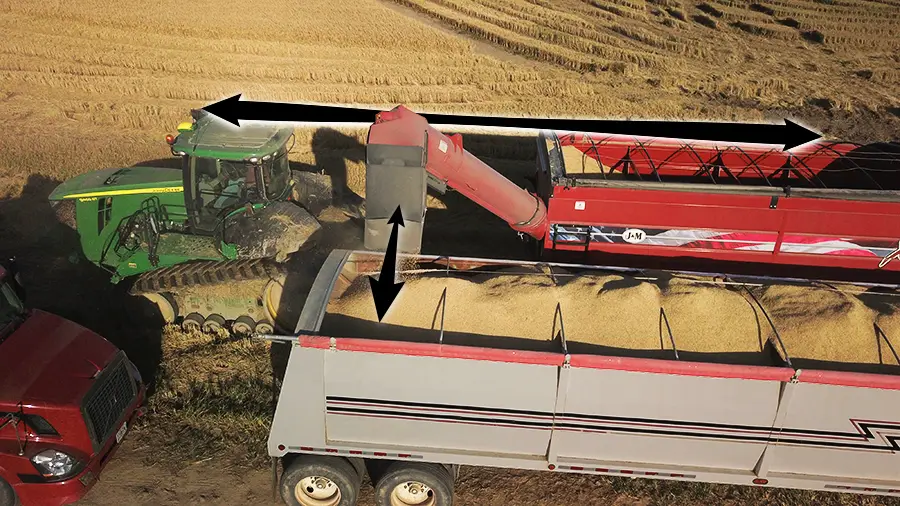

Patented Side‑Shooter

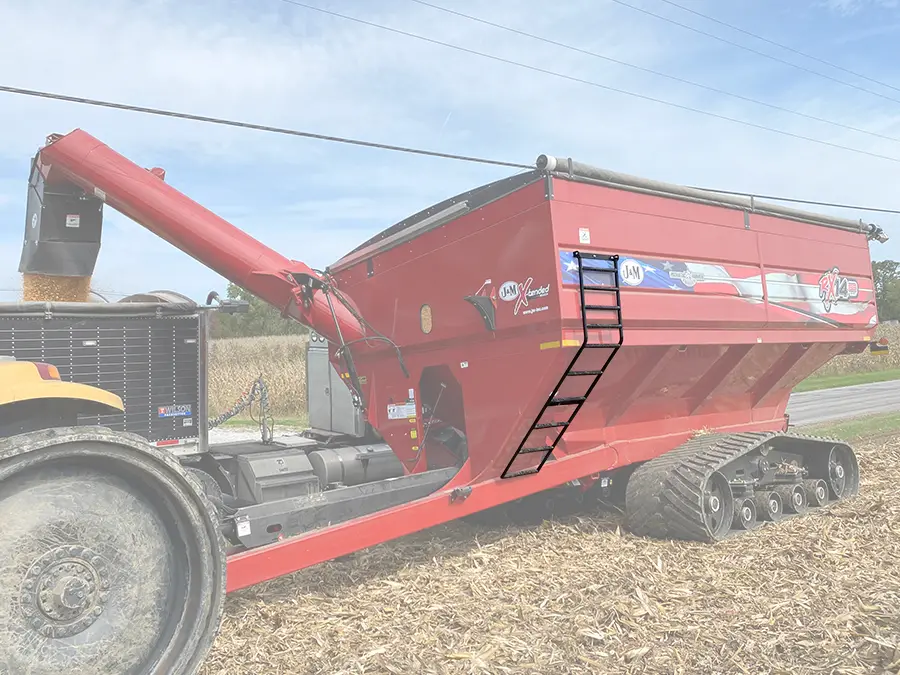

Side Mounted Ladder
X-Tended Reach Grain Cart Options

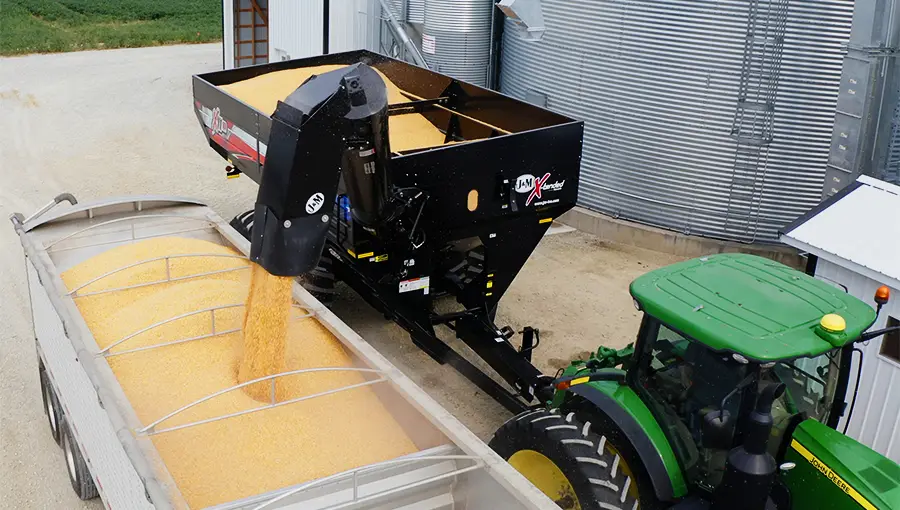

Right-Side Auger Grain Carts New

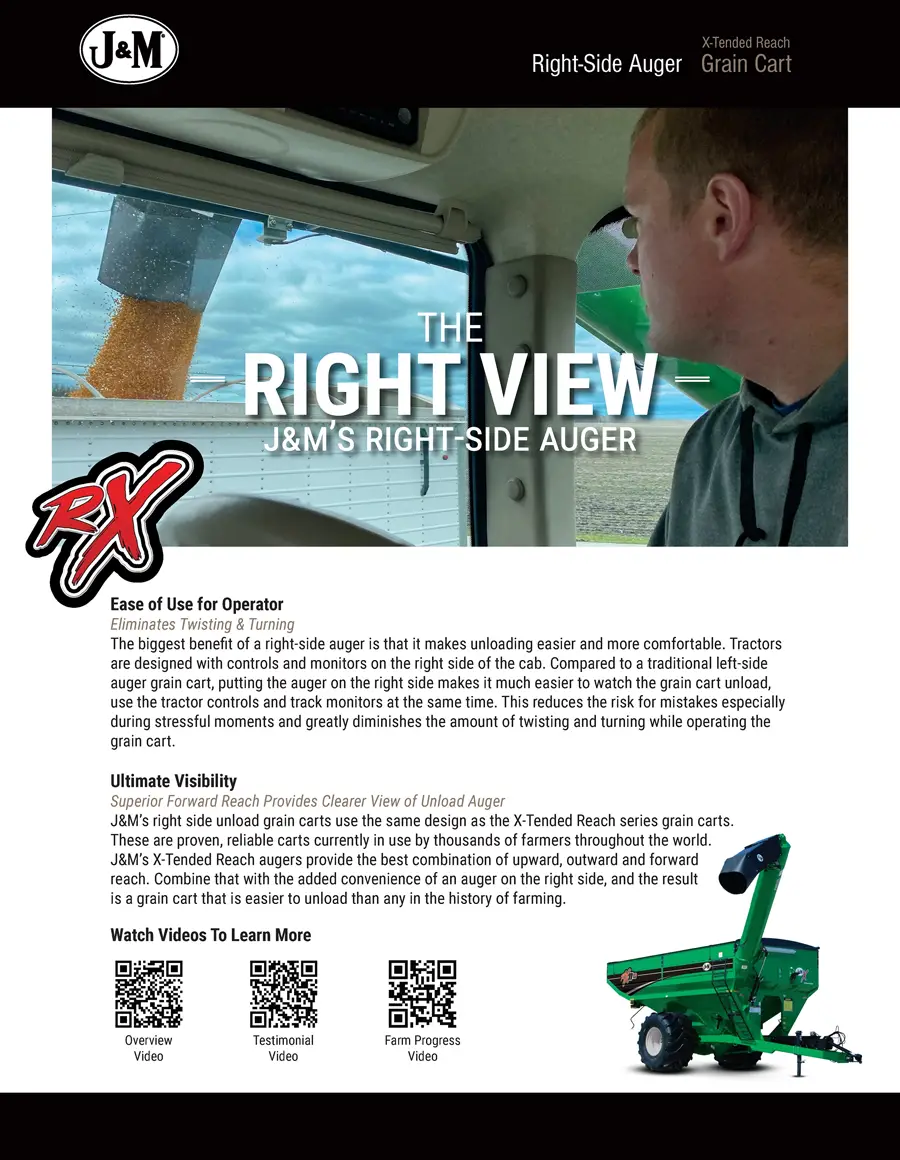

J&M now offers a right-side unload auger on select X-Tended Reach grain carts to increase operator visibility and efficiency.
The biggest benefit of a right-side auger is that it makes unloading easier and more comfortable. Tractors are designed with controls and monitors on the right side of the cab. Compared to a traditional left-side auger grain cart, putting the auger on the right side makes it much easier to watch the grain cart unload, use the tractor controls and track monitors at the same time. This reduces the risk for mistakes especially during stressful moments and greatly diminishes the amount of twisting and turning while operating the grain cart.
Learn more about Right-Side Auger Grain Carts
Swivel Ball Hitch New
The tight articulation on a J&M swivel ball hitch eliminates grain cart “slam” which reduces the shock loads on the tractor and grain cart, providing smoother operation for the farmer.
Additional benefits of changing to a J&M swivel ball hitch:
- The large contact area and tight connection increase the life of the tractor drawbar/drawpin, implement hitch and hitch scale bar
- Industry-leading 45° of articulation
- Easy maintenance
- Grease zerks are protected inside of hitch ring
- Ball is removed out of the bottom of the hitch ring by simply rotating a half turn and aligning with installation slot
Scale Options

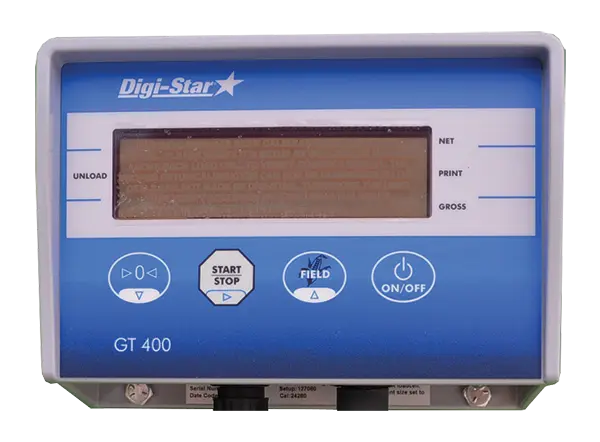

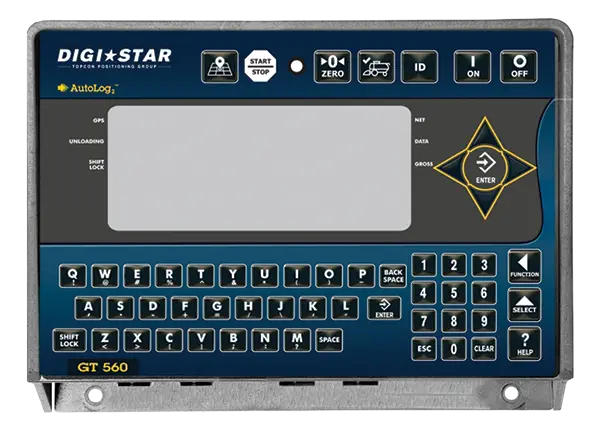

J&M scale systems allow you to accurately track your crops, safely load the semi within legal limits, and quickly document crop sharing and insurance records. A scale system can also help plan future soil preparations, plantings, and fertilizing needs, ensuring you spend only what you need. Used correctly, a scale system can quickly pay for itself.
Learn more about scale options
Scale Add-on Options
- Auto-Gate Shut-Off Kit for predetermined weight. For use with Digi‑Star GT 560 indicator.
- Thermal Printer for Digi‑Star indicator (Indicator must have serial port)

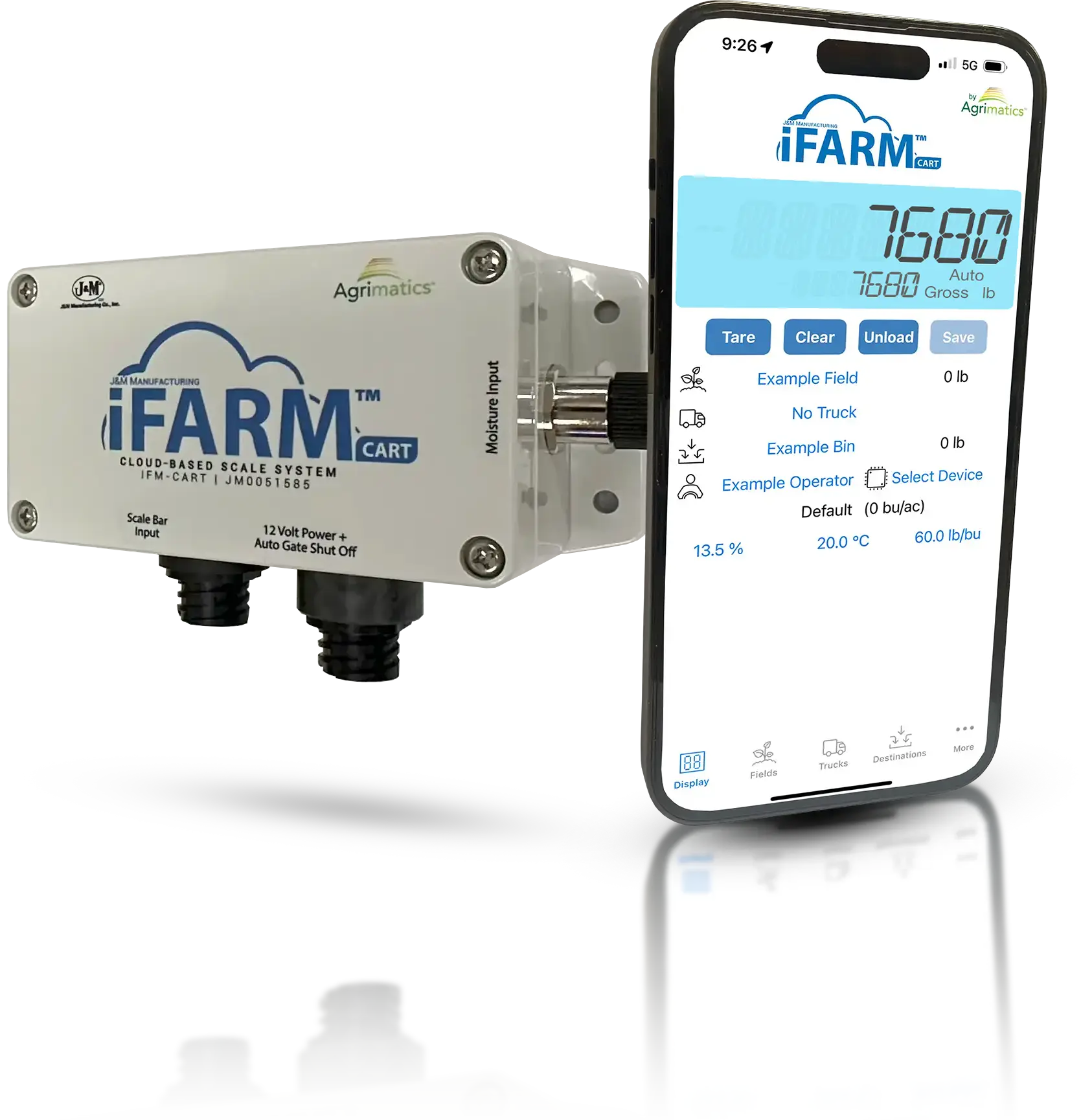

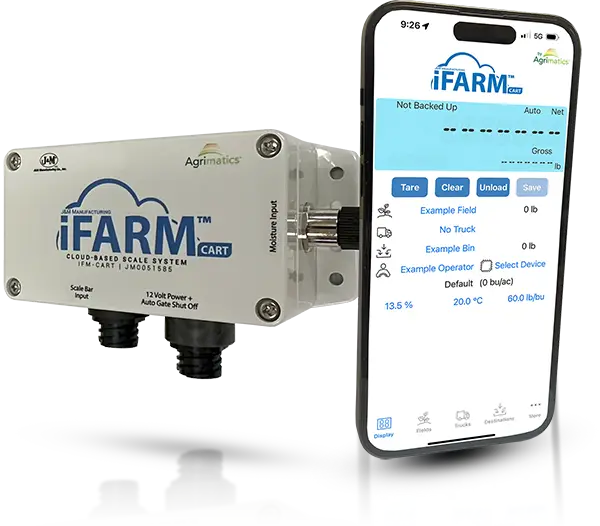

- Moisture Sensor Kit for J&M iFarm System
- Auto-Gate Shut Off Kit for J&M iFarm System
Patriotic Farmer Edition
To honor the patriotism of the American farmer, upgrade to the Patriotic Farmer Edition with an American flag stripe. A portion of the proceeds generated from the American flag decal will be donated to national nonprofit organizations that provide assistance to farm families who have experienced a major injury, illness or disaster, or mobilize veterans to transition them from military service to farming.
Learn more about Patriotic Farmer Edition grain carts

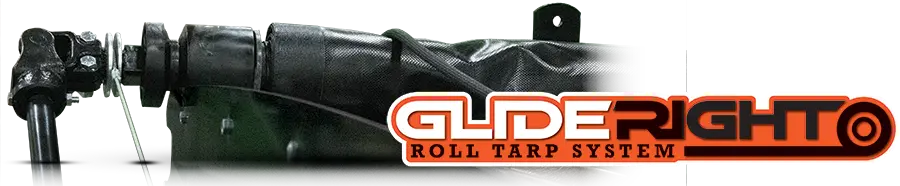

Roll Tarp Kit
During harvest time, the weather is unpredictable. Keep your valuable commodities safe from the weather by adding an 18 oz. roll tarp. The Glide Right roll tarp system features grooved rollers that roll along the edge of the end caps for consistent tracking and reduced misalignment. Front and rear return springs apply even tension to each end of the tarp to reduce binding and prevent uneven rolling compared to designs that only utilize one spring and cable assembly. An optional electric roll tarp allows you to remotely open and close.
Learn more about roll tarp options

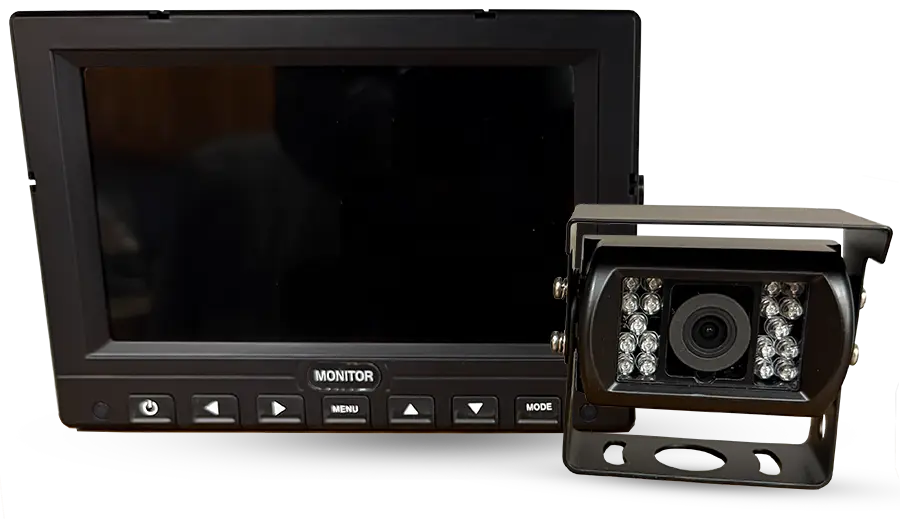

LCD Camera Kit

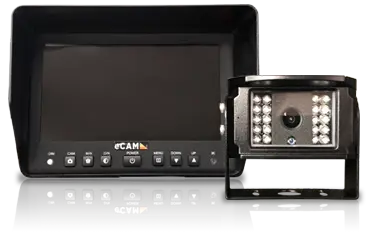

An LCD camera kit can give you maximum visibility to safely transport from field to field and efficiently receive grain from the combine or unload in the trailer.
Hydraulic Drive Kits In Place of PTO
For tractors without a PTO, a hydraulic drive kit will supply the power to operate the grain cart. Depending on your need, J&M offers a 19 or 21 cu. in. motor.
Miscellaneous Options
- 1⅜"-21 Spline PTO in place of standard 1¾" PTO
- Safety chain for grain cart
X-Tended Reach Grain Cart Specs and Dimensions
12 SERIES SPECIFICATIONS
| 812 | 1012 | 1112 | 1312 | 1412 | |
|---|---|---|---|---|---|
| Vertical Auger | 18" Bullet | 20" Bullet | 20" Bullet | 20" Bullet | 20" Bullet |
| Unload Time | 500 bu/min | 600+ bu/min | 600+ bu/min | 600+ bu/min | 600+ bu/min |
Single Wheels
| 812 | 1012 | 1112 | 1312 | 1412 | |
|---|---|---|---|---|---|
| Capacity | 875 Bushels | 1,025 Bushels | 1,150 Bushels | 1,325 Bushels | 1,400 Bushels |
| Wheels (2) | 21×32, 27×32 or 30×32 |
30×32, 31×32, 32×36 or 44×32 |
30×32, 32×36 or 44×32 |
32×36 or 44×32 |
44×32 |
| Tires (2) | 24.5×32, 30.5×32, IF800/60R32 or 900/60R32 |
900/60R32, 35.5×32, 1050/50R32, or IF1250/50R32 |
IF900/60R32, 1050/50R32, or IF1250/50R32 |
IF1050/50R32 or IF1250/50R32 |
IF1250/50R32 |
| Hubs (2) | 10 Bolt | 10 Bolt | 10 or 20 Bolt | 10 or 20 Bolt | 10 or 20 Bolt |
| Spindles (2) | 4½" Diameter | 4½" Diameter | 4½" Diameter | 6" Diameter | 6" Diameter |
| Tongue Weight Empty Loaded |
1,275 lbs 3,800 lbs |
2,900 lbs 4,200 lbs |
2,900 lbs 4,200 lbs |
2,400 lbs 4,800 lbs |
2,400 lbs 4,800 lbs |
| Total Weight (approx.) | 10,796 lbs | 14,172 lbs | 14,572 lbs | 17,268 lbs | 17,382 lbs | Model 812 weighed with 30.5x32 tires. Model 1012, 1112 and 1122 weighed with 900/60R32 tires. Model 1312 and 1412 weighed with 1250/50R32 tires. |
Walking Tandem Dual Wheels
| 1012 | 1112 | 1312 | 1412 | |
|---|---|---|---|---|
| Capacity | 1,000 Bushels | 1,125 Bushels | 1,300 Bushels | 1,375 Bushels |
| Wheels (4) | 16x42 or 18x42 |
16x42 or 18x42 |
18x42 | 18x42 |
| Tires (4) | 480/80R42 or 520/85R42 |
480/80R42 or 520/85R42 |
520/85R42 | 520/85R42 |
| Spindles (4) | 4½" Diameter | 4½" Diameter | 4½" Diameter | 4½" Diameter |
| Total Weight (approx.) | 18,453 lbs | 18,643 lbs | 19,610 lbs | 19,724 lbs | Weighed with 520/85R42 tires (set of 4). |
Tracks
| 1012 | 1112 | 1312 | 1412 | |
|---|---|---|---|---|
| Capacity | 1,050 Bushels | 1,175 Bushels | 1,350 Bushels | 1,425 Bushels |
| Total Weight (approx.) | 22,676 lbs | 22,866 lbs | 23,772 lbs | 23,886 lbs |
| Compaction Rate V4LT V4 36" Stabilizer Trax2 46" Stabilizer Trax2 |
13.8 psi 9.8 psi 9.1 psi 7.3 psi |
15.1 psi 10.8 psi 10.0 psi 7.9 psi |
12.1 psi 11.2 psi 8.8 psi |
12.6 psi 11.7 psi 9.2 psi |
Weighed with 36" Stabilizer Trax2. |
22 SERIES SPECIFICATIONS
| 1122 | 1222 | 1522 | |
|---|---|---|---|
| Vertical Auger | 20" Bullet | 20" Bullet | 20" Bullet |
| Unload Time | 600+ bu/min | 600+ bu/min | 600+ bu/min |
Single Wheels
| 1122 | 1222 | 1522 | |
|---|---|---|---|
| Capacity | 1,130 Bushels | 1,250 Bushels | 1,475 Bushels |
| Wheels (2) | 30×32, 32×36 or 44×32 |
32×26 or 44×32 |
44×32 |
| Tires (2) | 900/60R32, 1050/50R32, or IF1250/50R32 |
IF1050/50R32 or IF1250/50R32 |
IF1250/50R32 |
| Hubs (2) | 10 Bolt or 20 Bolt | 10 Bolt or 20 Bolt | 20 Bolt |
| Spindles (2) | 4½" Diameter or 6" Diameter |
6" Diameter | 6" Diameter |
| Tongue Weight Empty Loaded |
2,900 lbs 4,200 lbs |
2,900 lbs 4,200 lbs |
3,000 lbs 4,800 lbs |
| Total Weight (approx.) | 14,770 lbs | 16,701 lbs | 17,968 lbs |
Walking Tandem Dual Wheels
| 1122 | 1222 | |
|---|---|---|
| Capacity | 1,105 Bushels | 1,225 Bushels |
| Wheels (4) | 16x42 or 18x42 |
18x42 |
| Tires (4) | 480/80R42 or 520/85R42 |
520/85R42 |
| Spindles (4) | 4½" Diameter | 4½" Diameter |
| Total Weight (approx.) | 18,841 lbs. | 19,042 lbs. |
Tracks
| 1122 | 1222 | 1522 | |
|---|---|---|---|
| Capacity | 1,155 Bushels | 1,275 Bushels | 1,500 Bushels |
| Total Weight (approx.) | 23,064 lbs | 23,265 lbs | 24,250 lbs |
| Compaction Rate | 10.67 lbs/sq inch | 11.96 lbs/sq inch | 13.69 lbs/sq inch |
| Compaction Rate V4LT V4 36" Stabilizer Trax2 46" Stabilizer Trax2 |
14.9 psi 10.6 psi 9.9 psi 7.9 psi |
11.5 psi 10.7 psi 8.5 psi |
13.21 psi 12.2 psi 9.6 psi |
Weighed with 36" Stabilizer Trax2. |

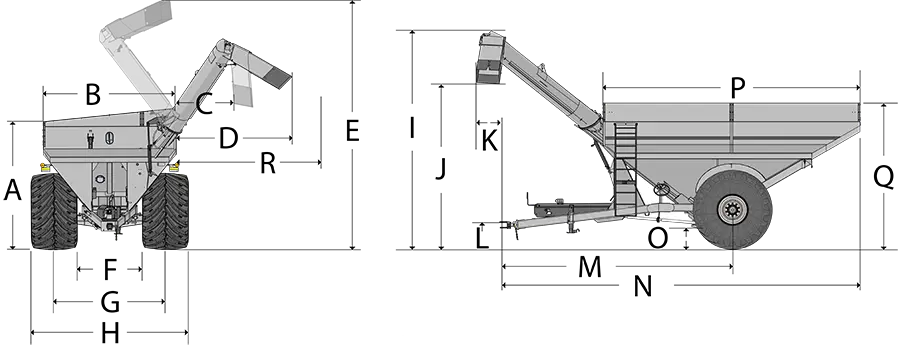

DIMENSIONS
| 812 | 1012 | 1112 | 1312 | 1412 | 1122 | 1222 | 1522 | ||
|---|---|---|---|---|---|---|---|---|---|
| A | 11'-6" | 10'-11" | 11'-11" | 11'-9" | 12'-3" | 11'-3" | 12'-4" | 11'-10" | |
| B | 11'-9" | 11'-9" | 11'-9" | 11'-9" | 11'-9" | 13'-9" | 13'-9" | 13'-9" | |
| C | 11'-7" | 10'-10" | 10'-10" | 10'-5" | 10'-5" | 10'-10" | 10'-10" | 10'-5" | |
| D | 14'-2" | 13'-6" | 13'-6" | 13'-1" | 13'-1" | 13'-6" | 13'-6" | 13'-1" | |
| E | 10'-0" | 10'-0" | 10'-0" | 10'-0" | 10'-0" | 10'-0" | 10'-0" | 10'-0" | |
| F | 22'-1" | 22'-3" | 22'-3" | 20'-11" | 20'-11" | 22'-3" | 22'-3" | 20'-11" | |
| G | 1'-7" | 1'-6" | 1'-6" | 1'-6" | 1'-6" | 1'-6" | 1'-6" | 1'-6" | |
| H | 15'-6" | 20'-1" | 20'-1" | 21'-10" | 21'-10" | 20'-1" | 20'-1" | 21'-10" | |
| I | 22'-8" | 30'-7" | 30'-7" | 34'-5" | 34'-5" | 30'-7" | 30'-7" | 34'-5" | |
| J | 13'-10" | 13'-6" | 13'-6" | 13'-6" | 13'-6" | 13'-6" | 13'-8" | 13'-6" | |
| K | 16'-0" | 22'-0" | 22'-0" | 25'-6" | 25'-6" | 22'-0" | 22'-0" | 25'-6" | |
| L | 12'-0" | 12'-0" | 12'-6" | 12'-8" | 12'-8" | 12'-4" | 12'-8" | 12'-7" | |
| M | 1'-5" | 1'-5" | 1'-5" | 1'-5" | 1'-5" | 1'-5" | 1'-5" | 1'-5" | |
| N | 10'-4" | 11'-2" | 11'-2" | 11'-8" | 11'-8" | 11'-2" | 11'-2" | 11'-8" | |
| O | 16'-8" | 18'-2" | 18'-2" | 18'-0" | 18'-0" | 18'-2" | 18'-2" | 18'-0" | |
| *812 Measured with 20” hitch height and 30.5x32 tires. | |||||||||
| *1012, 1112, and 1122 Measured with 20” hitch height. Models 1012, 1112, and 1122 measured with 900/60R32 tires. | |||||||||
| *1326-1401 Measured with 20” hitch height. Models 1312, 1412, 1222, and 1522 measured with IF1250/50R32 tires. | |||||||||
Compaction Rate
| 24.5x32 Diamond (16 ply) |
30.5x32 Lug (16 ply) |
30.5x32 Lug (18 ply) |
IF800/60R32 Diamond (181 LI) |
35.5x32 Diamond (20 ply) |
900/60R32 Lug (176 LI) |
|
|---|---|---|---|---|---|---|
| 812 | 30 | 34 | 30 | 46 | N/A | 35 |
| 35.5x32 Diamond (20 ply) |
900/60R32 Lug (176 LI) |
900/60R32 Lug (191 LI) |
1050/50R32 Lug (185 LI) |
1050/50R32 Lug (195 LI) |
1250/50R32 Lug (195 LI) |
1250/50R32 Lug (201 LI-Alliance) |
1250/50R32 Lug (201 LI-Firestone) |
|
|---|---|---|---|---|---|---|---|---|
| 1012 | 36 | 35 | N/A | 63 | N/A | 24 | N/A | N/A |
| 1112 | N/A | N/A | 64 | 63 | N/A | 30 | 30 | N/A |
| 1122 | N/A | N/A | 64 | 63 | N/A | 30 | N/A | N/A |
| 1222 | N/A | N/A | N/A | N/A | 58 | N/A | 46 | 35 |
| 1312 | N/A | N/A | N/A | N/A | 58 | N/A | 46 | 39 |
| 1412 | N/A | N/A | N/A | N/A | N/A | N/A | 46 | 42 |
| 1522 | N/A | N/A | N/A | N/A | N/A | N/A | 46 | 45 |
| 480/80R42 Lug (154 LI-Firestone) |
480/80R42 Lug (169 LI-Alliance) |
520/85R42 Lug (169 LI-Firestone) |
520/85R42 Lug (169 LI-Alliance) |
V4LT Tracks (36"×106") |
V4 Tracks (36"×139") |
STX2 Trax (36"×150") |
STX2 Trax (46"×155") |
|
|---|---|---|---|---|---|---|---|---|
| 1012 | 29 | 64 | 35 | 50 | 13.8 | 9.8 | 9.1 | 7.3 |
| 1112 | 29 | 64 | 35 | 50 | 15.1 | 10.8 | 10.0 | 7.9 |
| 1122 | N/A | N/A | N/A | N/A | 14.9 | 10.6 | 9.9 | 7.9 |
| 1222 | N/A | N/A | N/A | N/A | N/A | 11.5 | 10.7 | 8.5 |
| 1312 | N/A | N/A | 35 | 50 | N/A | 12.1 | 11.2 | 8.8 |
| 1412 | N/A | N/A | 35 | 50 | N/A | 12.6 | 11.7 | 9.2 |
| 1522 | N/A | N/A | N/A | N/A | N/A | 13.2 | 12.2 | 9.6 |
Compaction Rate
| 24.5x32 Diamond (16 ply) |
30.5x32 Lug (16 ply) |
30.5x32 Lug (18 ply) |
IF800/60R32 Diamond (181 LI) |
35.5x32 Diamond (20 ply) |
900/60R32 Lug (176 LI) |
|
|---|---|---|---|---|---|---|
| 812 | 30 | 26 | 30 | 46 | N/A | 35 |
| 1012 | 1112 | 1122 | 1222 | 1312 | 1412 | 1522 | ||
|---|---|---|---|---|---|---|---|---|
| 35.5x32 Diamond (20 ply) | 28 | N/A | N/A | N/A | N/A | N/A | N/A | Single Wheels |
| 900/60R32 Lug (176 LI) | 35 | N/A | N/A | N/A | N/A | N/A | N/A | |
| 900/60R32 Lug (191 LI) | N/A | 64 | 64 | N/A | N/A | N/A | N/A | |
| 1050/50R32 Lug (185 LI) | 63 | 63 | 63 | N/A | N/A | N/A | N/A | |
| IF1050/50R32 Lug (195 LI) | N/A | N/A | N/A | 58 | 58 | N/A | N/A | |
| IF1250/50R32 Lug (195 LI) | 24 | 30 | 30 | N/A | N/A | N/A | N/A | |
| IF1250/50R32 Lug (201 LI-Alliance) | N/A | N/A | N/A | 46 | 46 | 46 | 46 | |
| IF1250/50R32 Lug (201 LI-Firestone) | N/A | N/A | N/A | 35 | 39 | 42 | 45 | |
| 480/80R42 Lug (154 LI-Firestone) | 29 | 29 | N/A | N/A | N/A | N/A | N/A | Walking Tandem Dual Wheels |
| 480/80R42 Lug (169 LI-Alliance) | 64 | 64 | N/A | N/A | N/A | N/A | N/A | |
| IF520/85R46 Lug (169 LI-Firestone) | 35 | 35 | N/A | N/A | 35 | 35 | N/A | |
| 520/85R46 Lug (169 LI-Alliance) | 50 | 50 | N/A | N/A | 50 | 50 | N/A | |
| V4 LT Tracks (36"×106") | 13.8 | 15.1 | 14.9 | N/A | N/A | N/A | N/A | Tracks |
| V4 Tracks (36"×139") | 9.8 | 10.8 | 10.6 | 11.5 | 12.1 | 12.6 | 13.2 | |
| STX2 Trax (36"×150") | 9.1 | 10.0 | 9.9 | 10.7 | 11.2 | 11.7 | 12.2 | |
| STX2 Trax (46"×155") | 7.3 | 7.9 | 7.9 | 8.5 | 8.8 | 9.2 | 9.6 |
