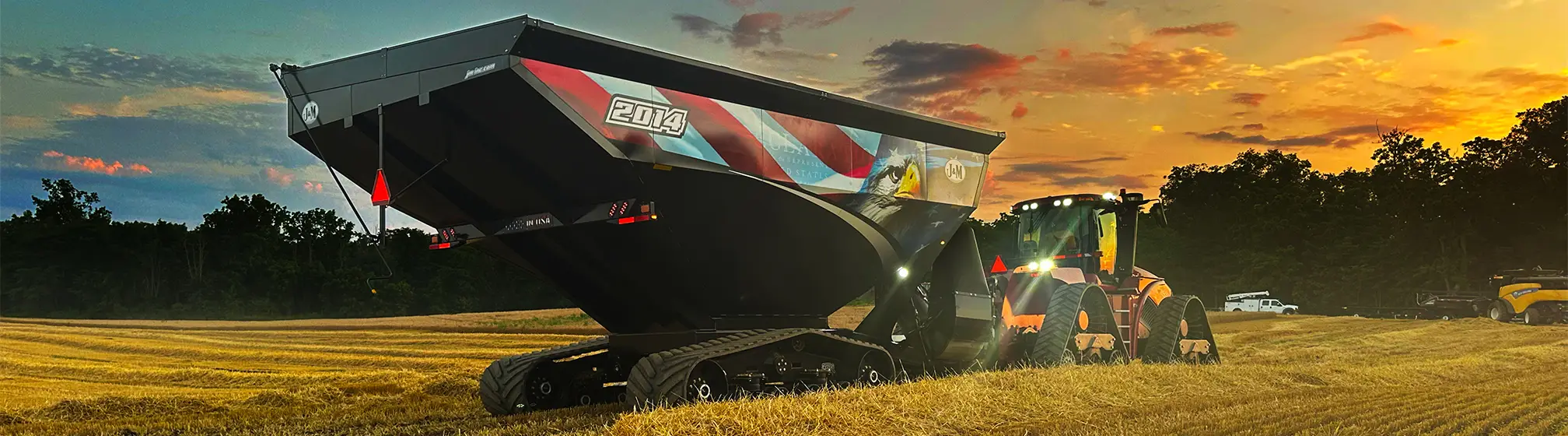

The Largest and Fastest Single-Auger Grain Carts
Setting New Standards in Capacity, Speed, and Operator Experience
J&M Manufacturing, a leading innovator in agricultural equipment, introduces the 14 Series Grain Carts. These carts are a culmination of over five years of intensive research, customer feedback, and internal innovation. The 14 Series redefines efficiency and ease of use in grain handling, offering the fastest unload speeds and largest capacities available in single-auger carts.
The 14 Series is designed to meet the evolving demands of modern agriculture, incorporating advancements that optimize harvest.
Unmatched Performance and Capacity
At the heart of the 14 Series is its groundbreaking performance. Thanks to over a decade of rigorous testing and precision manufacturing, these carts boast an industry-leading unload speed of 900+ bushels per minute, making them the fastest single-auger grain carts on the market. This unparalleled speed rivals even the fastest dual-auger carts without the complexity.
In addition to speed, the 14 Series introduces the largest single-auger capacities available, with models ranging from 1,700 to an astounding 2,100 bushels.

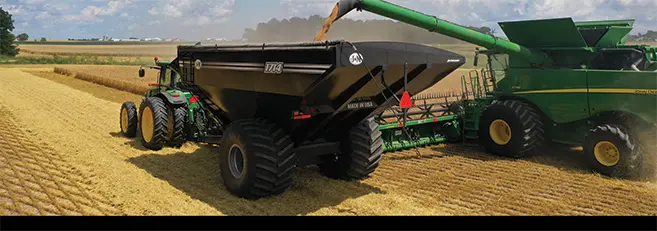

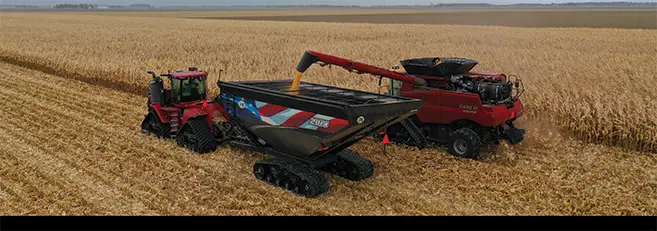

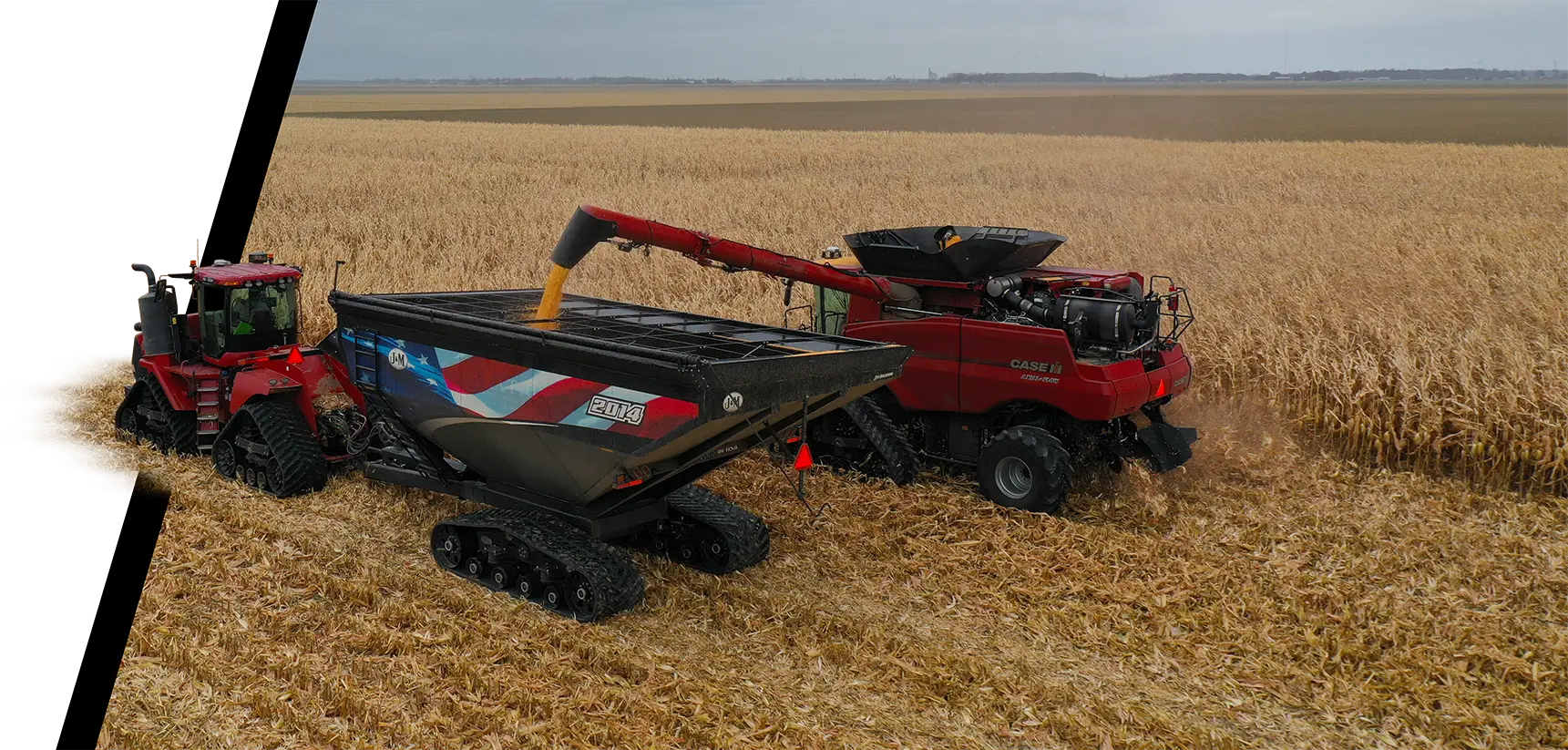

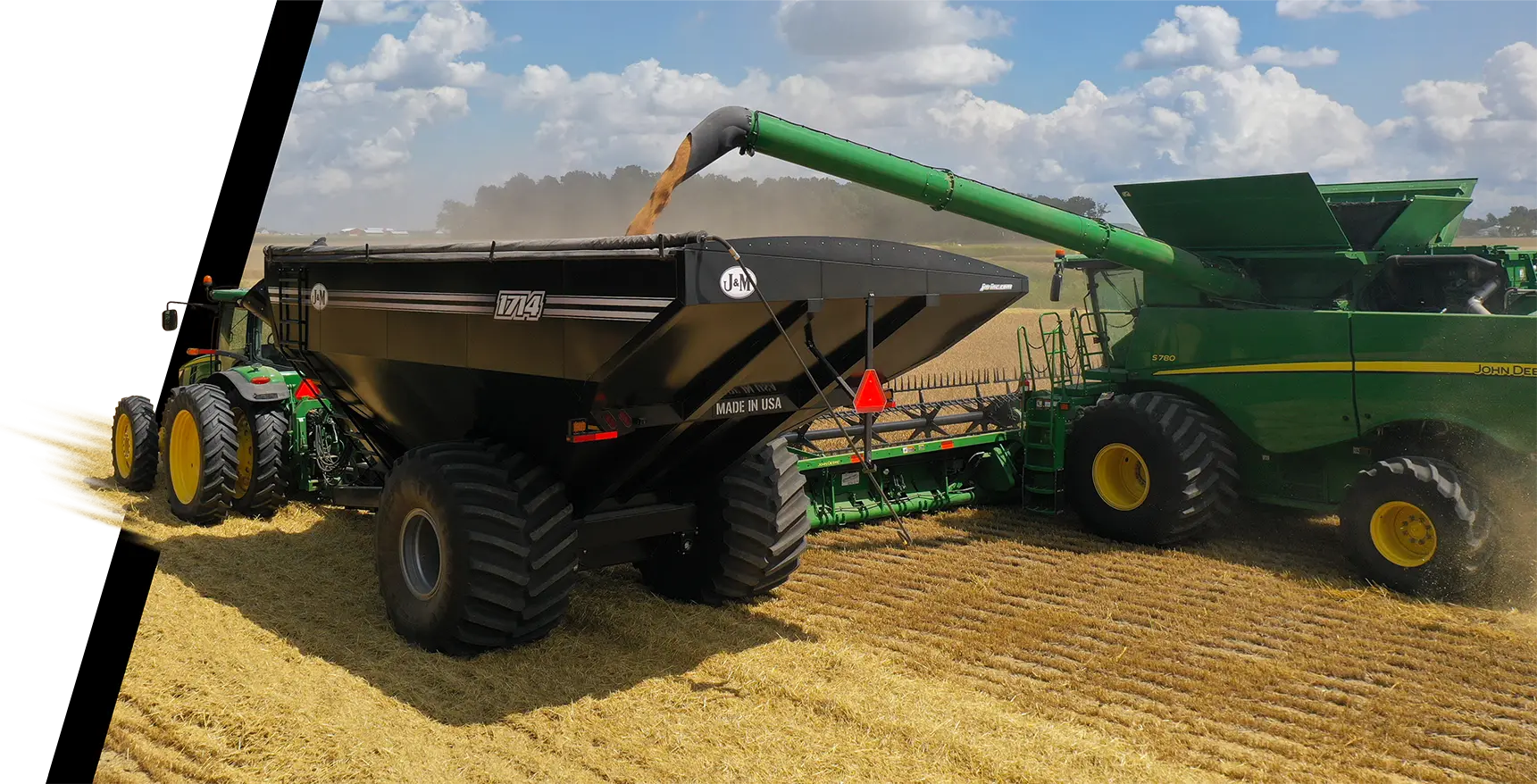

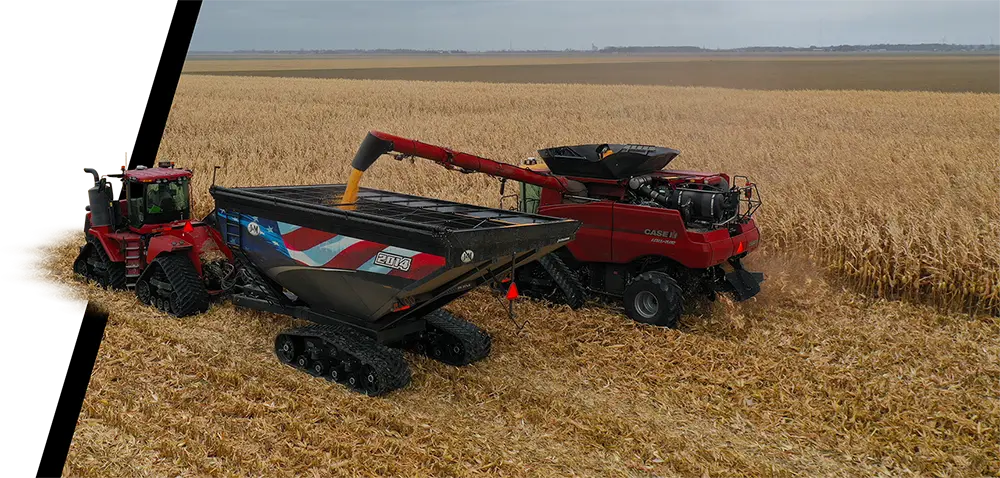

BIG
Previously, the biggest single-auger grain cart held 1500 bushels. J&M's 14 Series carts can hold up to 2000 bushels.
- 1,700 or 2,000 bushel capacity
- 2,100 bushel capacity with optional leaner side boards
- Simple, reliable, and efficient single-auger design

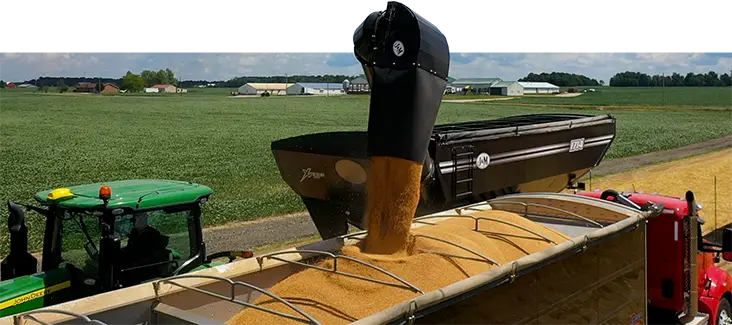

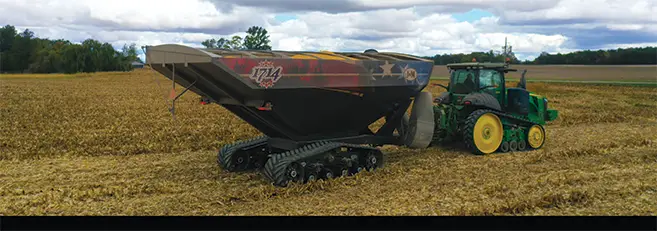

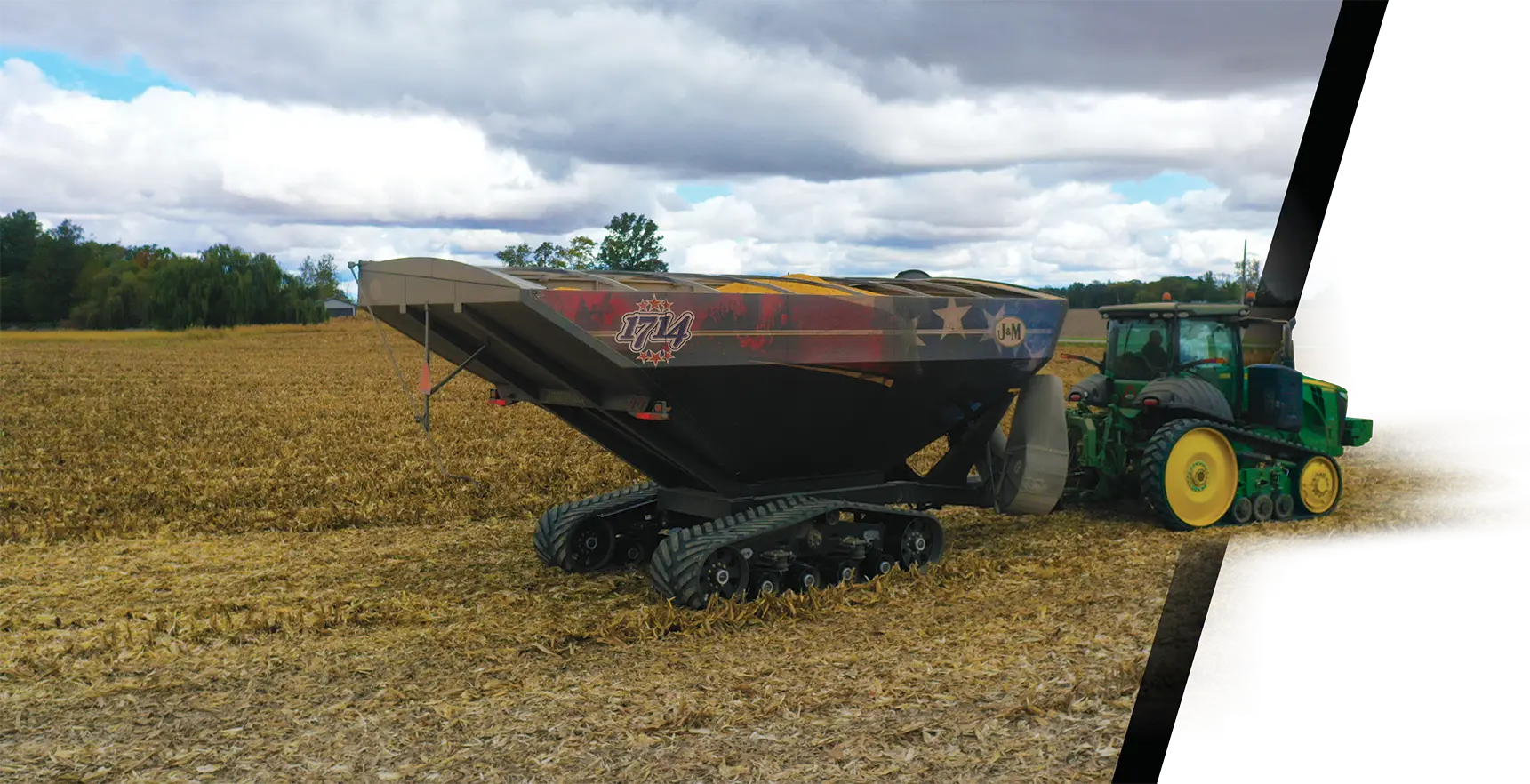

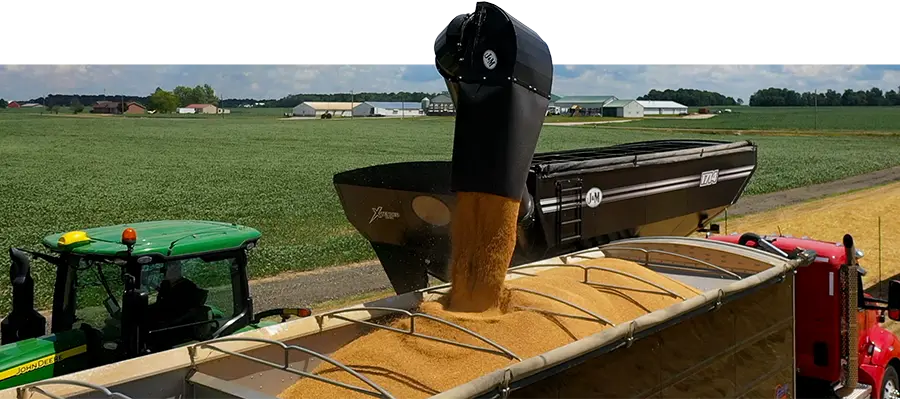

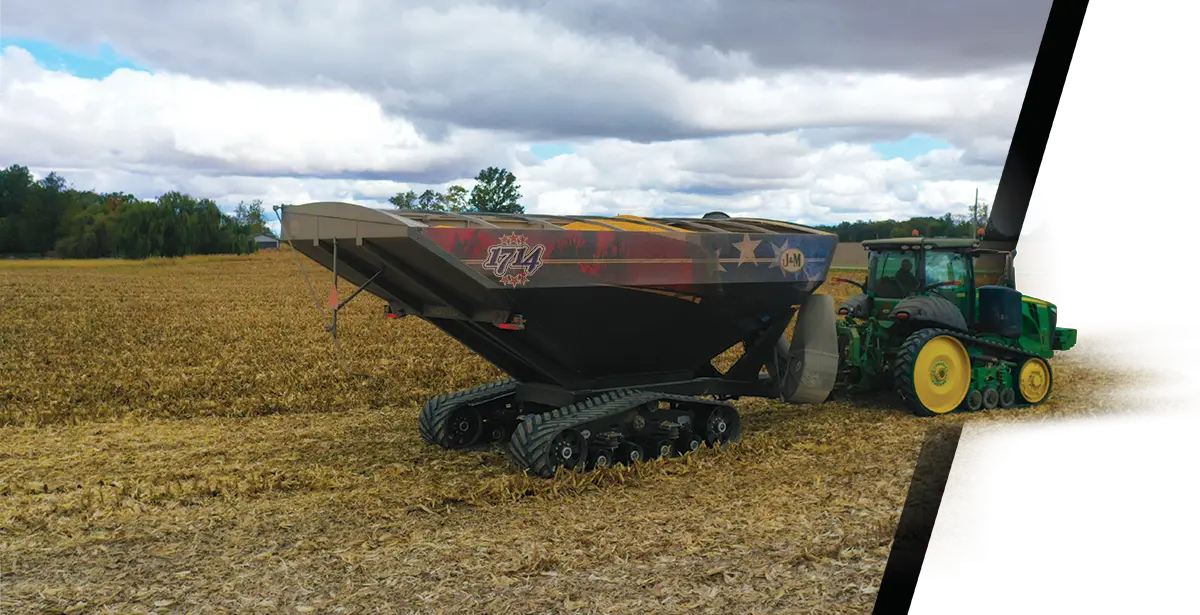

FAST
The fastest single-auger grain cart in the world.

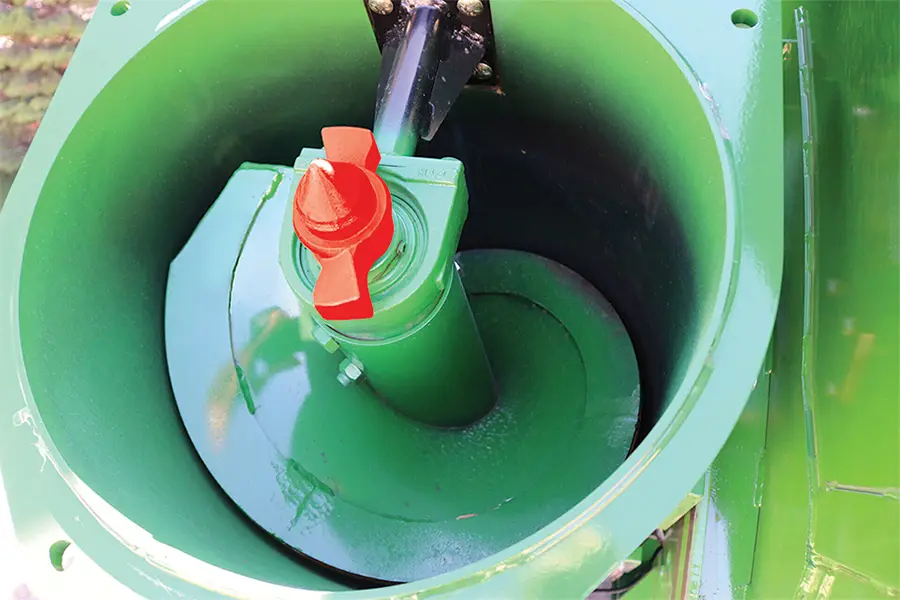

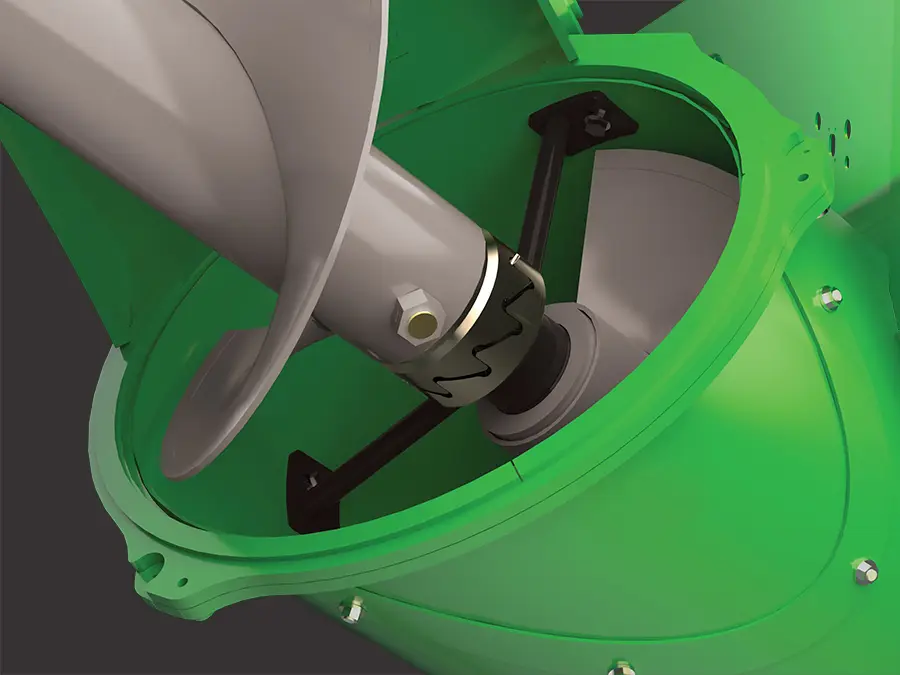

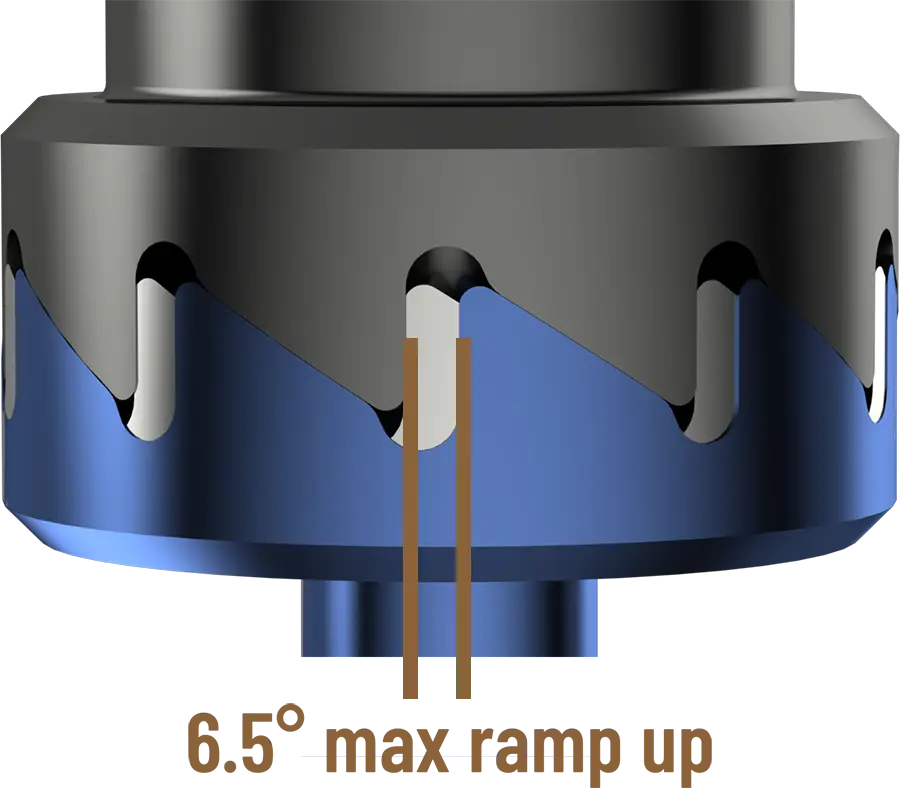

Utilizing years of testing and technology, we've fine-tuned the unloading process to reach speeds of 900+ bushels a minute. The closest competitor's single-auger cart unloads at 650 bushels a minute. This speed rivals many dual-auger carts. We achieved this speed increase while keeping the same dependable gearbox.

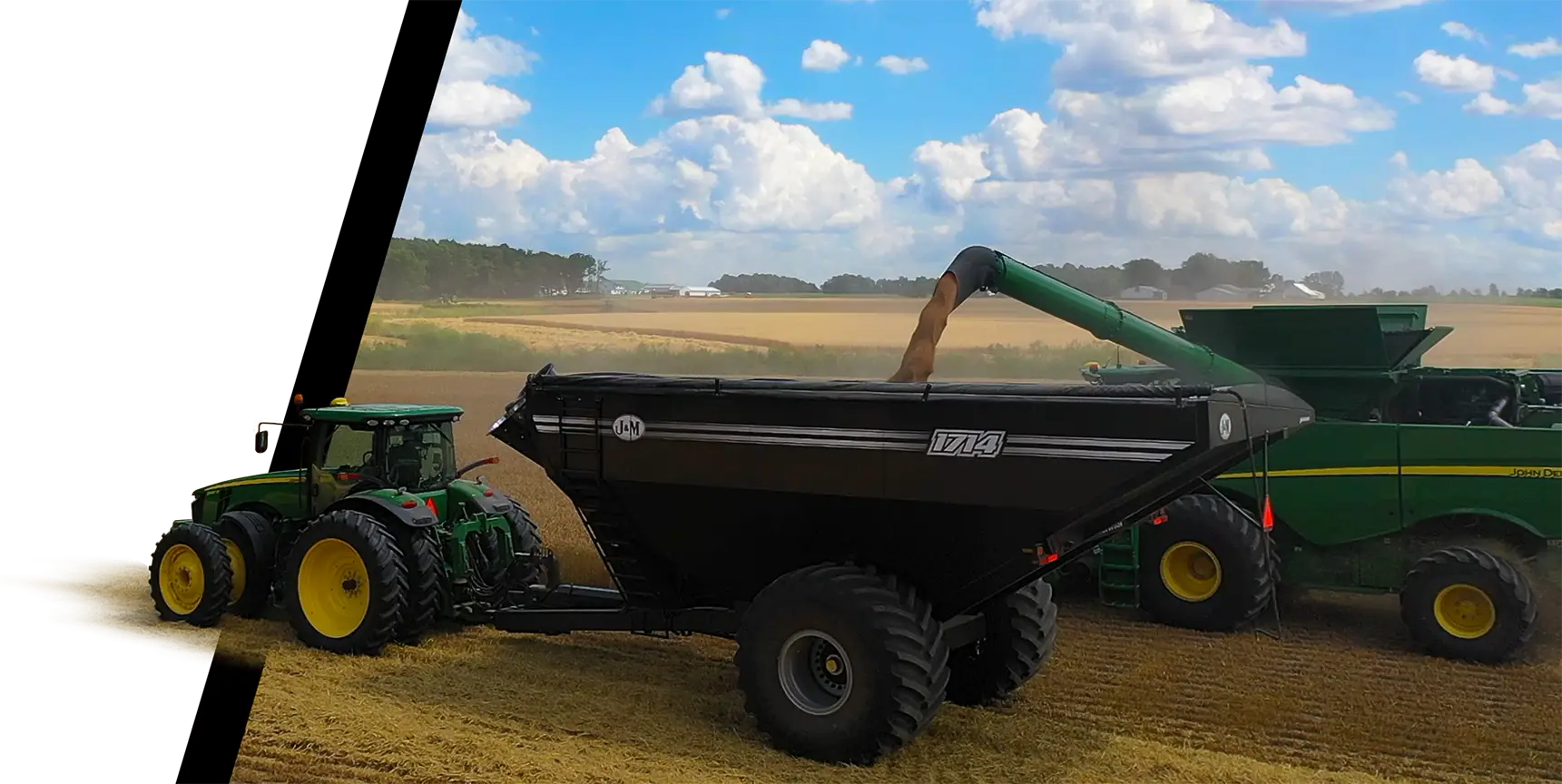

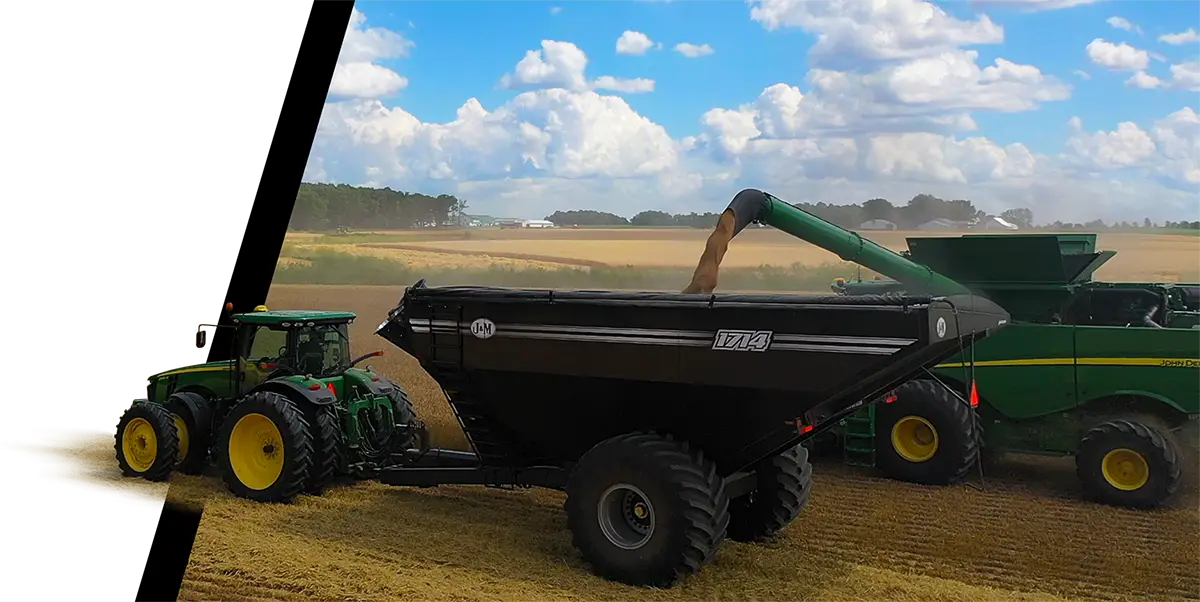

STRONG
The shell construction is a strong and durable combination of welds and Huck Bolts. Tank sheets are bent and then clamped together between reinforcement plates for a strong and tight joint. The construction helps eliminate weld distortion and fatigue-related cracking. This also gives the cart its sleek and clean look.
Ultimate
Operator Convenience
J&M has meticulously engineered the 14 Series to enhance the operator experience, making unloading easier and more precise than ever:
Unload Auger Options: All 14 Series carts can be ordered with either a right-hand or left-hand unload auger to suit specific operational needs.
Enhanced Visibility and Reach: An improved 20 inches of forward reach makes the auger easier to see, while an extra 18 inches of side reach provides ample clearance when unloading into semis, especially over ditches or other challenging terrain.

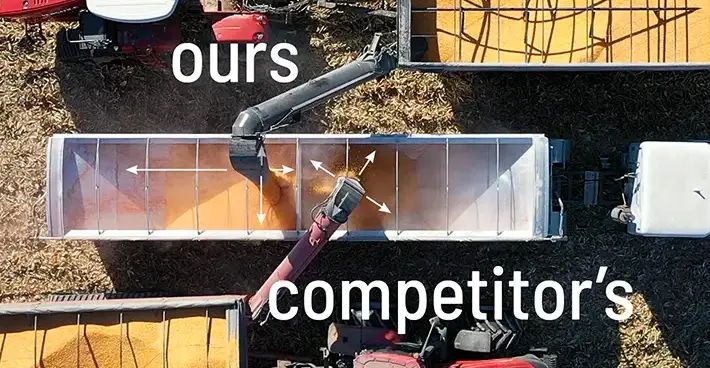

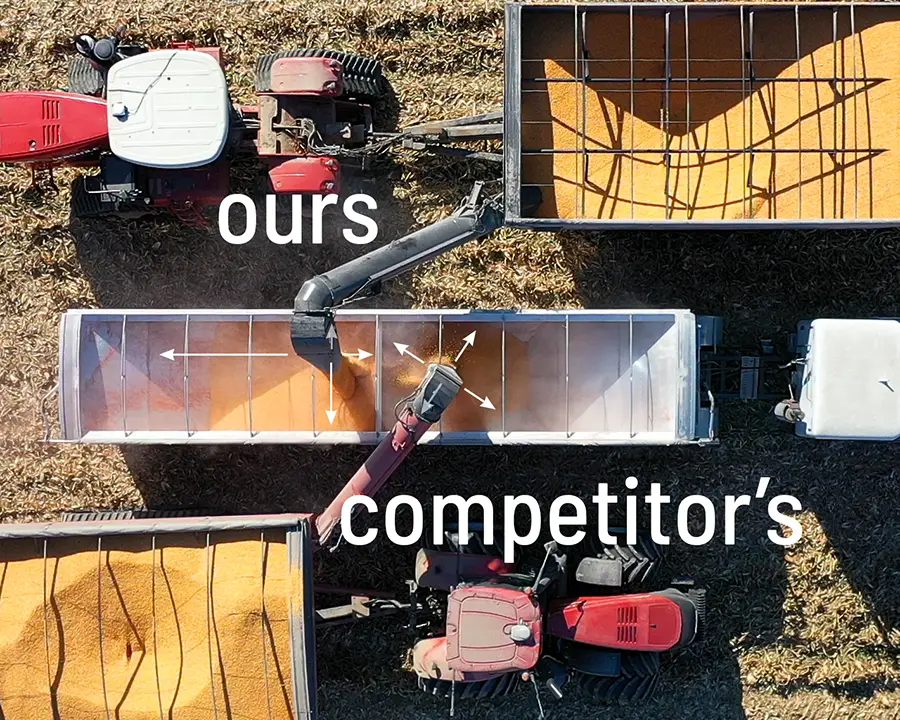

Advanced 4-Way Side-Shooter® Spout: Taking precision unloading to a new level, the patented 4-Way Side-Shooter® Spout offers multi-directional control, moving 45° left, 45° right, and 55° outward. This allows operators to fill nearly half a semi-trailer with just one stop, minimizing repositioning and clutch wear.

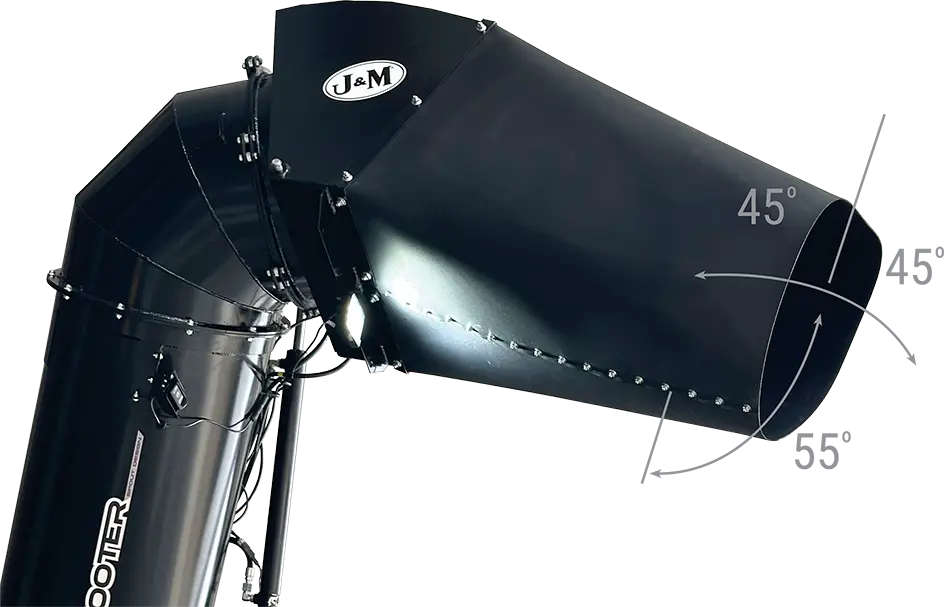

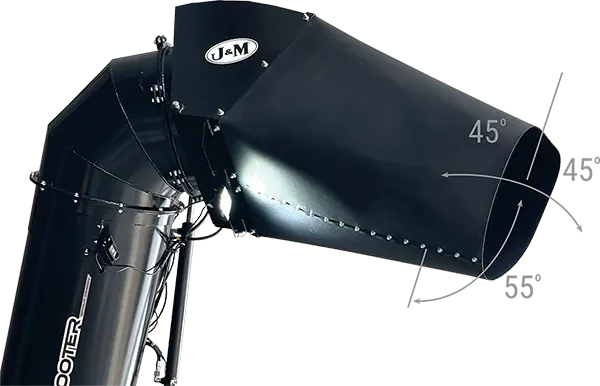

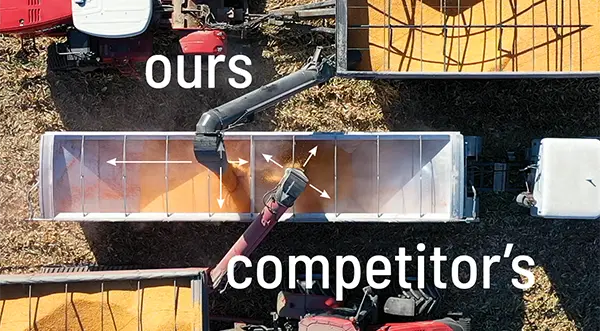

4-Way Side-Shooter® Spout
The 4-way spout takes the Side-Shooter® Spout Design to a new level. The 4-way control allows you to nearly fill half the semi with just one stop. The automated controls put the spout in a safe travel position when folded and the operator's preferred unload position when unfolded. The "push to fold" feature makes the process just a simple push of a button. Dual counter-balance valves ensure a smooth fold and unfold.
The new 4-Way Side-Shooter® Spout Design**
- Ideal perpendicular angle to the semi-trailer during the unloading process
- Improved sleeker design
- 4-way spout moves left and right as well as in and out

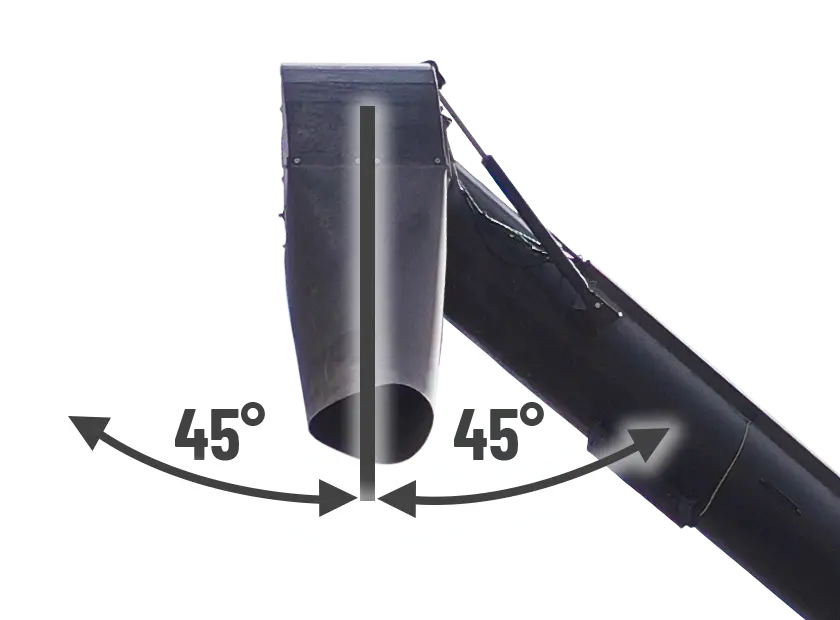

- Swivels 45° forward, 45° rearward
- Tips in/out from straight down to 55° outward
- Automatic spout positioning on fold/unfold*
- The spout automatically returns to a factory-set storage position when folding
- The spout also automatically defaults to the operator's preferred unload position when unfolding
*Valve bank is needed for these features
**Patent pending
Features
To Make Unloading Easy
The 14 Series combines cutting-edge technology with a strong, durable, and sleek design:
J&M App Integration: The innovative J&M App goes beyond a traditional scale head, assisting with basic grain cart functions, providing maintenance reminders, offering diagnostics, and supplying user feedback.
Features to Help the Operator

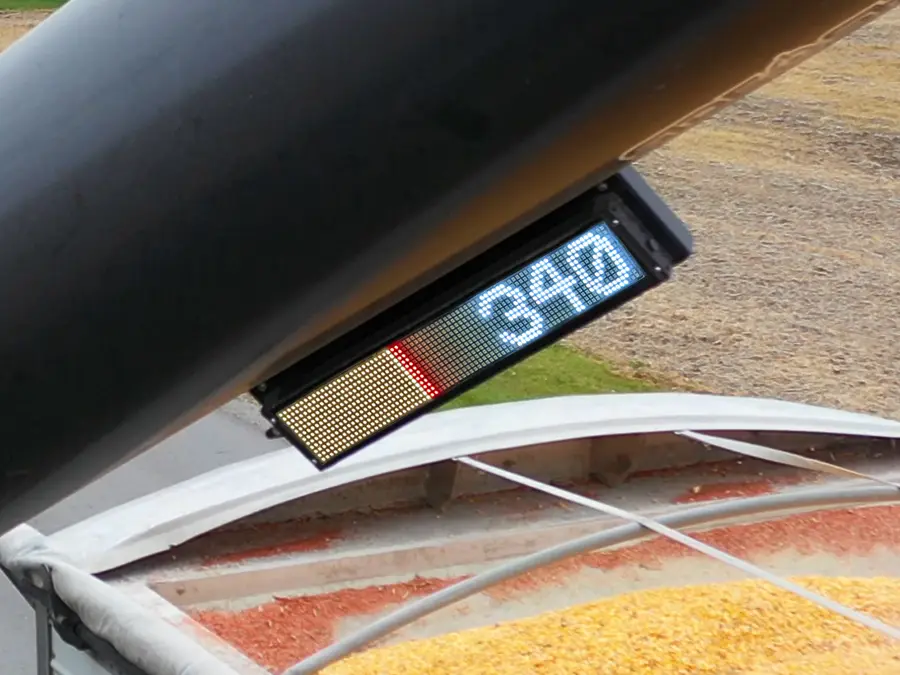

- LED Scoreboard Display
- LED display on the combine side of the grain cart
- Combine operator can monitor grain cart weight while filling
- Calibrate the combine yield monitor
- Speed Lock
- Sets gate opening to maintain a desired unload speed
- Control unload speed based on preference
- Reduce stress and spill potential for inexperienced operators
- Auto Unload Detection
- Unloads are automatically detected
- Unloaded weight is shown on the LED display
- Cart Diagnostics
- Diagnostic status to ensure the cart is operating properly
- Monitor Lock-N-Load
- Quickly identify when the Lock-N-Load is active
- Roll Tarp Open/Close From App
- Open or close the roll tarp when equipped with an electric roll tarp
More Features with Optional Valve Bank
- Slide to Fold
- Quickly fold or unfold the auger by sliding a button
- Return to Home
- The spout automatically returns to a factory-set storage position to reduce transport width
- The spout also automatically defaults to the operator's preferred unload position when unfolding
- Auto Gate
- Automatically stops the unload at preset weight
Redesigned
Roll Tarp

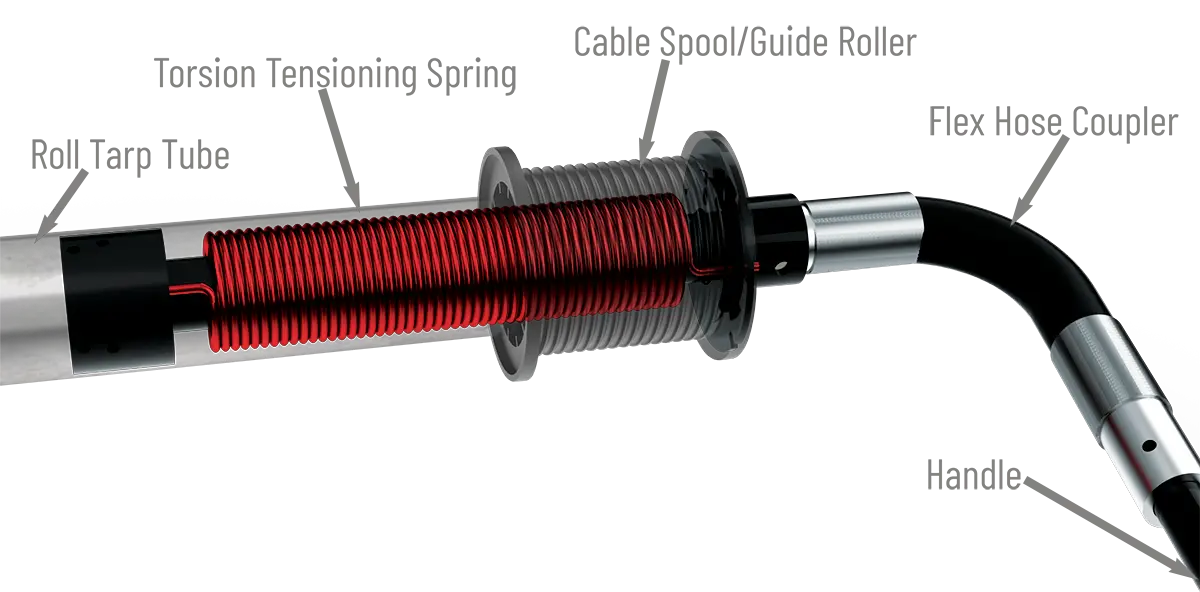

- Self-contained tensioning system
- Consistent and smooth rolls
- Keeps tension on the tarp
- No spring returns
- Rollers are contained between end caps to keep the tarp on track throughout the rolling process
- Lip lock is not needed
- Adjustable torsion springs tension each roller for precise adjustment and constant tension
- Rectangular tarp bows have a higher resistance to bending and sagging
- Improved bracing
- Roll tarp handle utilizes a flex hose coupler for improved ease of use over U-joints used by most competitors
- The handle rotates smoothly, no matter where the operator is positioned
- New end caps have deeper bends and improved bracing to increase strength
- Electric roll tarp can be rolled from the app with a single touch or can be rolled manually using a rocker switch on the grain cart
More Features
Undercarriage
Options
Tires

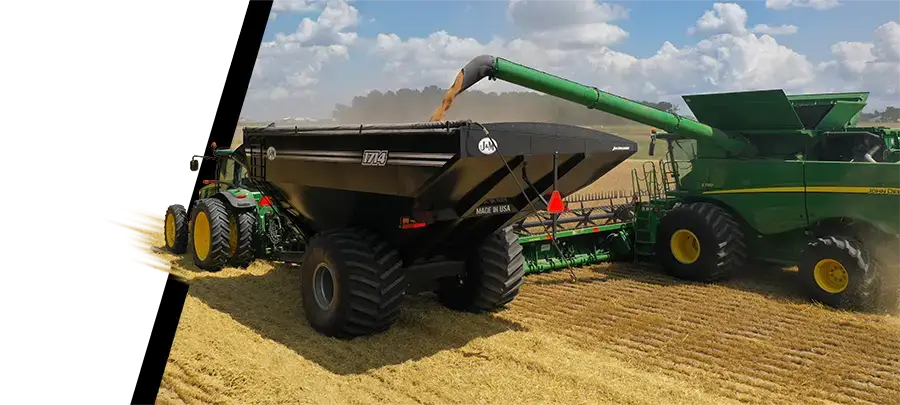

The Largest Single Tire Grain Cart in the World
- 20-bolt hubs
- 7" diameter spindles
- IF1250/50R32 tires
- IF1400/45R42 tires - largest ag tire in the world
See our tires and which models they are available on.

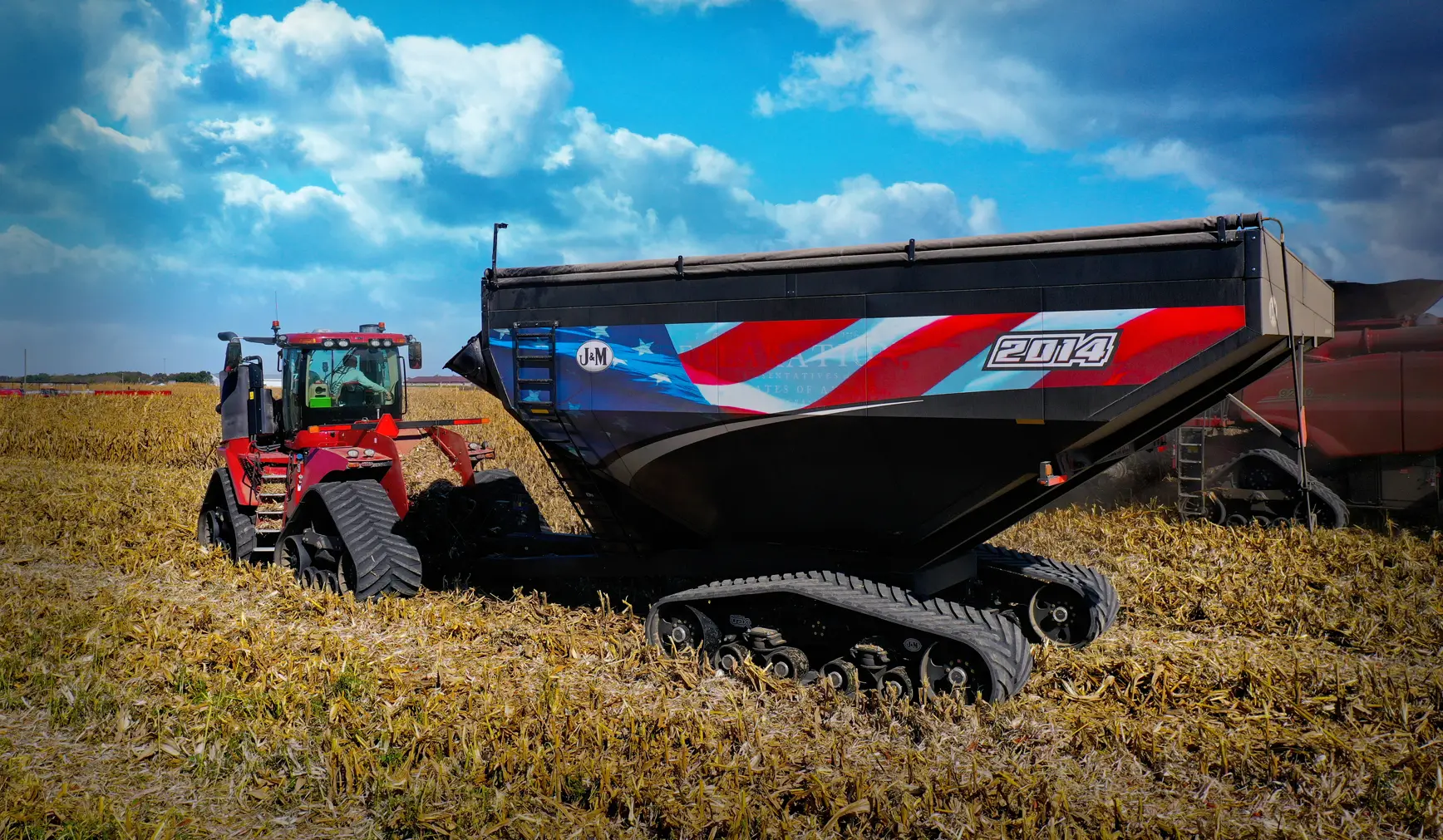

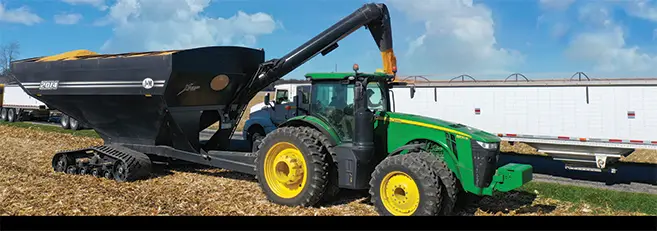

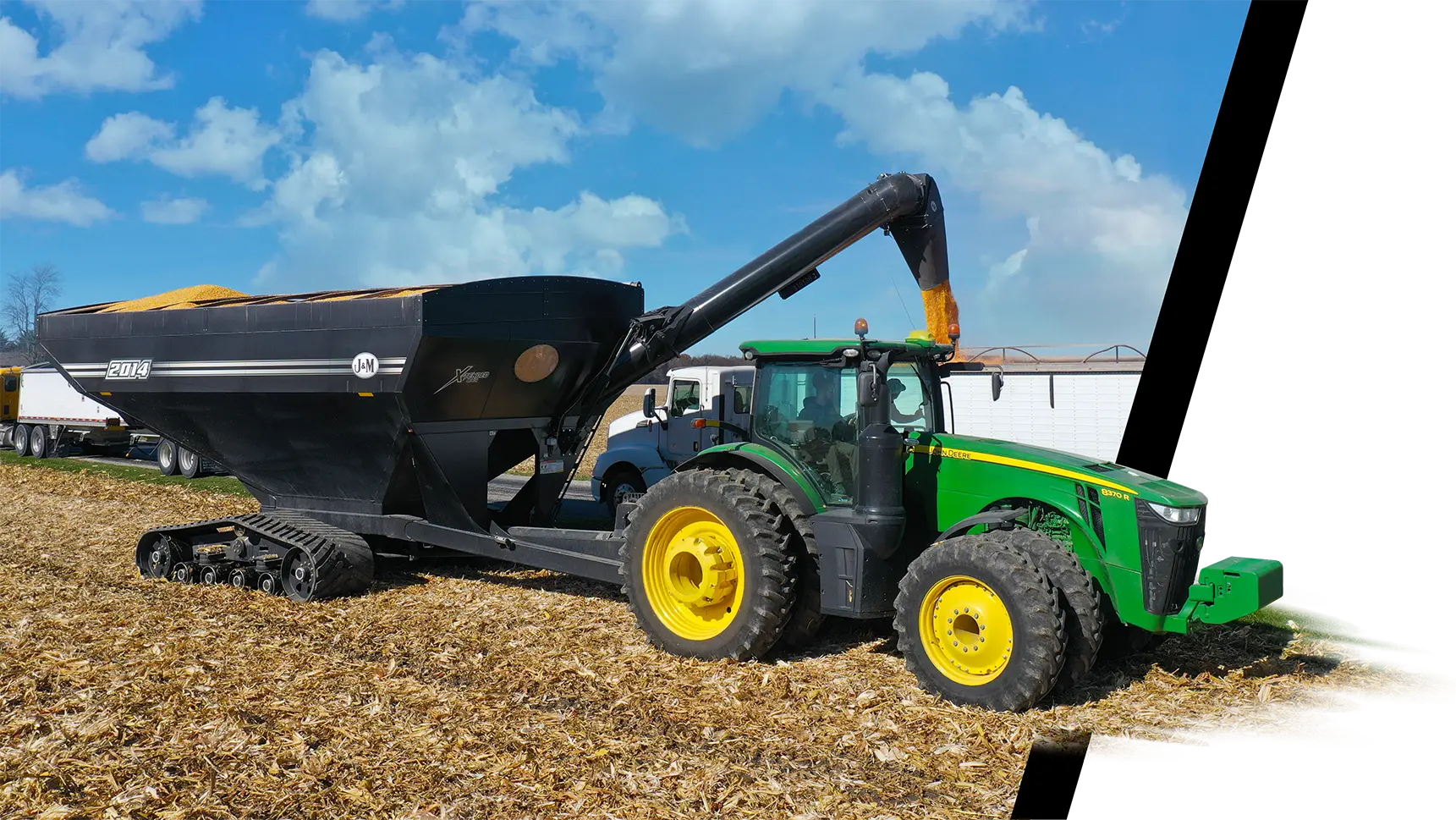

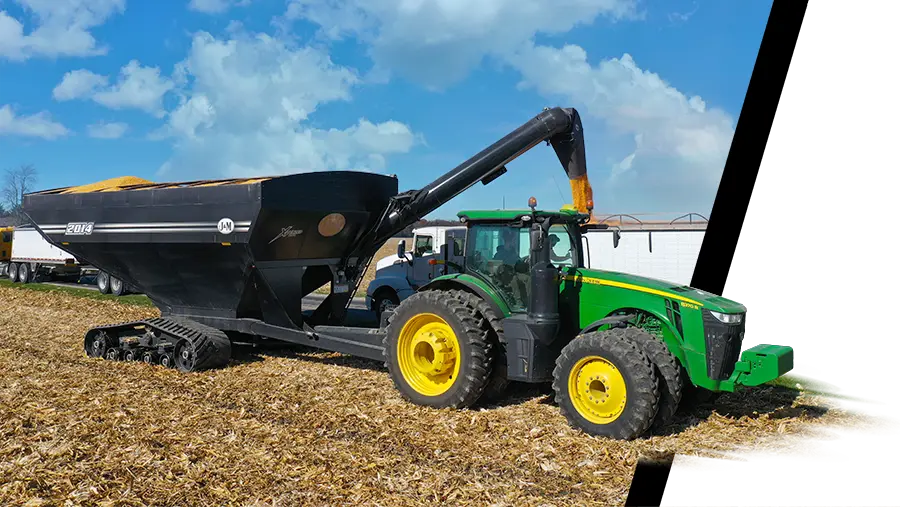

Tracks
Maximum Footprint - Minimum Compaction
- 36" × 150" Stabilizer Trax2
- 42" × 150" Stabilizer Trax2
- 46" × 150" Stabilizer Trax2
Dive into everything about tracks.
Options

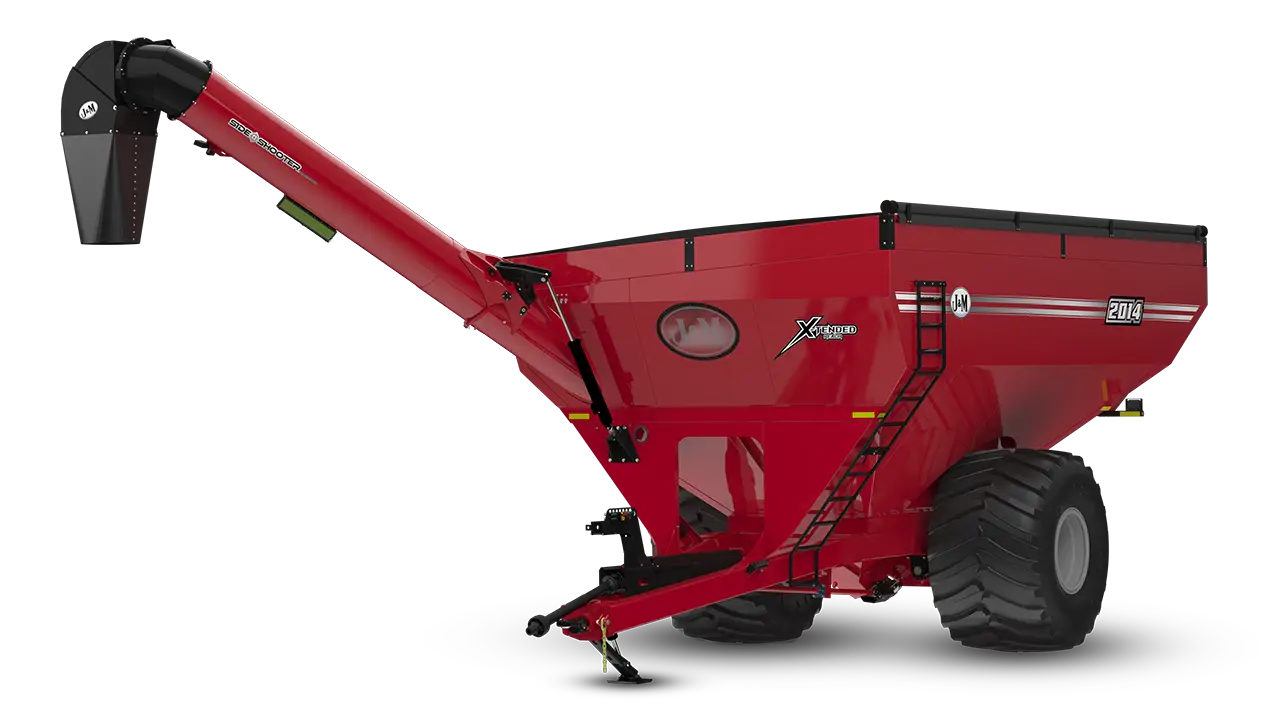

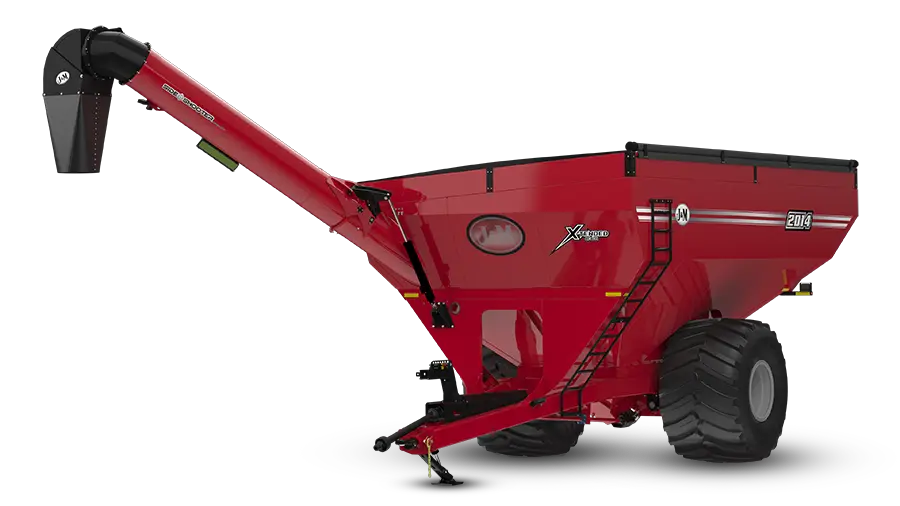

Right-Side Auger Grain Carts
J&M offers a right-side unload auger on all 14 series grain carts and select 12 and 32 series grain carts.
A right-side unload auger offers major advantages for grain cart operators. Because tractor controls and monitors are located on the right side of the cab, a right-side auger makes it easier to watch the grain cart unload while adjusting controls and tracking monitors at the same time. This setup reduces operator strain, minimizes twisting and turning, and lowers the risk of mistakes during busy harvest conditions compared to traditional left-side augers.
Swivel Ball Hitch
Swivel Ball Hitch
The tight articulation on a J&M swivel ball hitch eliminates grain cart “slam” which reduces the shock loads on the tractor and grain cart, providing smoother operation for the farmer.
Additional benefits of changing to a J&M swivel ball hitch:
- The large contact area and tight connection increase the life of the tractor drawbar/drawpin, implement hitch and hitch scale bar
- Industry-leading 45° of articulation
- Easy maintenance
- Grease zerks are protected inside of hitch ring
- Ball is removed out of the bottom of the hitch ring by simply rotating a half turn and aligning with installation slot

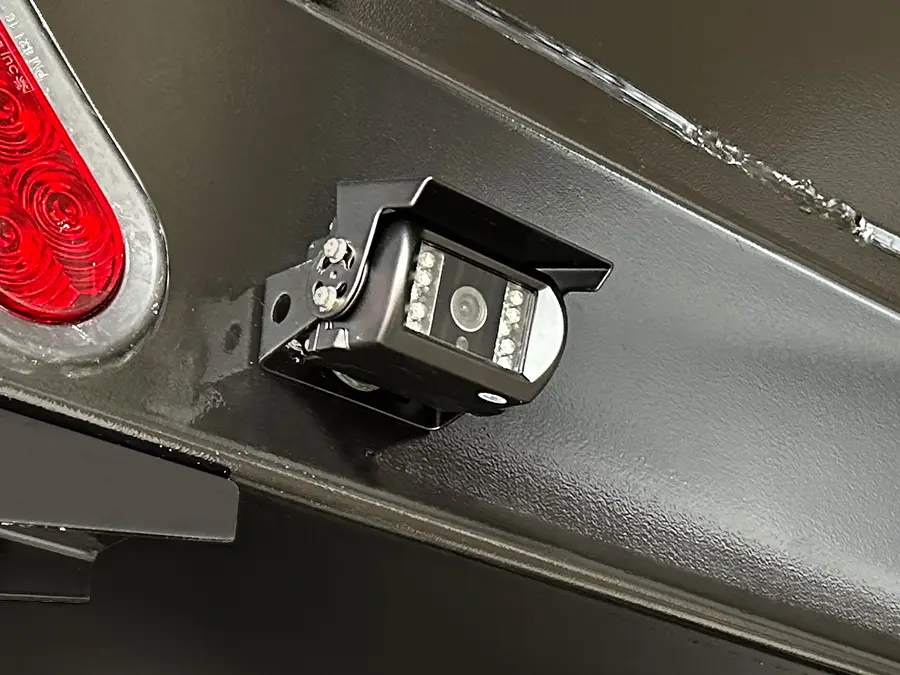

Cameras

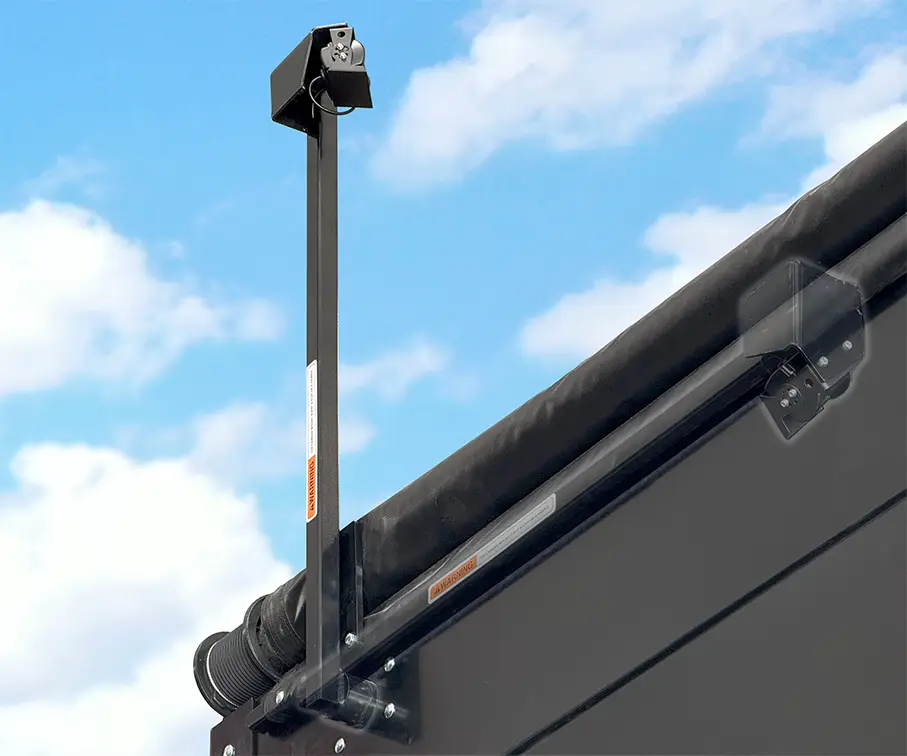

Add additional cameras to your grain cart to make viewing your cart and the trailer easy! The tank camera is on a breakaway mount to prevent accidental damage. The spout camera lets you see exactly where you are placing grain into the trailer.
Other options include:
- Electric Roll Tarp
- Leaner Sideboard Option
- Safety Chain
Specifications
Single Wheel Option
| 1714 | 2014 | 2014 Leaner | |
|---|---|---|---|
| Capacity | 1,640 bushels | 1,950 bushels | 2,040 bushels |
| Auger, One Vertical | 22" Bullet | 22" Bullet | 22" Bullet |
| Unload Rate (bu/min) | 900+ | 900+ | 900+ |
| Wheels (2) | 32×44 42×50 |
32×44 42×50 |
32×44 42×50 |
| Tires (2) | IF1250/50R32 IF1400/45R42 |
IF1250/50R32 IF1400/45R42 |
IF1250/50R32 IF1400/45R42 |
| Hubs (2) | 20-bolt | 20-bolt | 20-bolt |
| Spindles (2) | 7" diameter | 7" diameter | 7" diameter |
| Tongue Weight Empty Loaded |
3,000 lbs* 5,700 lbs* |
3,000 lbs* 5,700 lbs* |
3,000 lbs** 5,700 lbs** |
| Total Weight (approx.) | 19,670 lbs* | 20,550 lbs* | 21,560 lbs** | *Weighed with IF1250/50R32 tires **Weighed with IF1400/45R42 tires |
Track Option
| 1714 | 2014 | 2014 Leaner | |
|---|---|---|---|
| Capacity | 1,660 Bushels | 1,970 Bushels | 2,060 Bushels |
| Spindles (2) | 7" Diameter | 7" Diameter | 7" Diameter |
| Total Weight (approx.) | 26,135 lbs*** | 26,685 lbs*** | 26,825 lbs*** | ***Weighed with 36" Stabilizer Trax2 |
You can learn more about our tracks here.

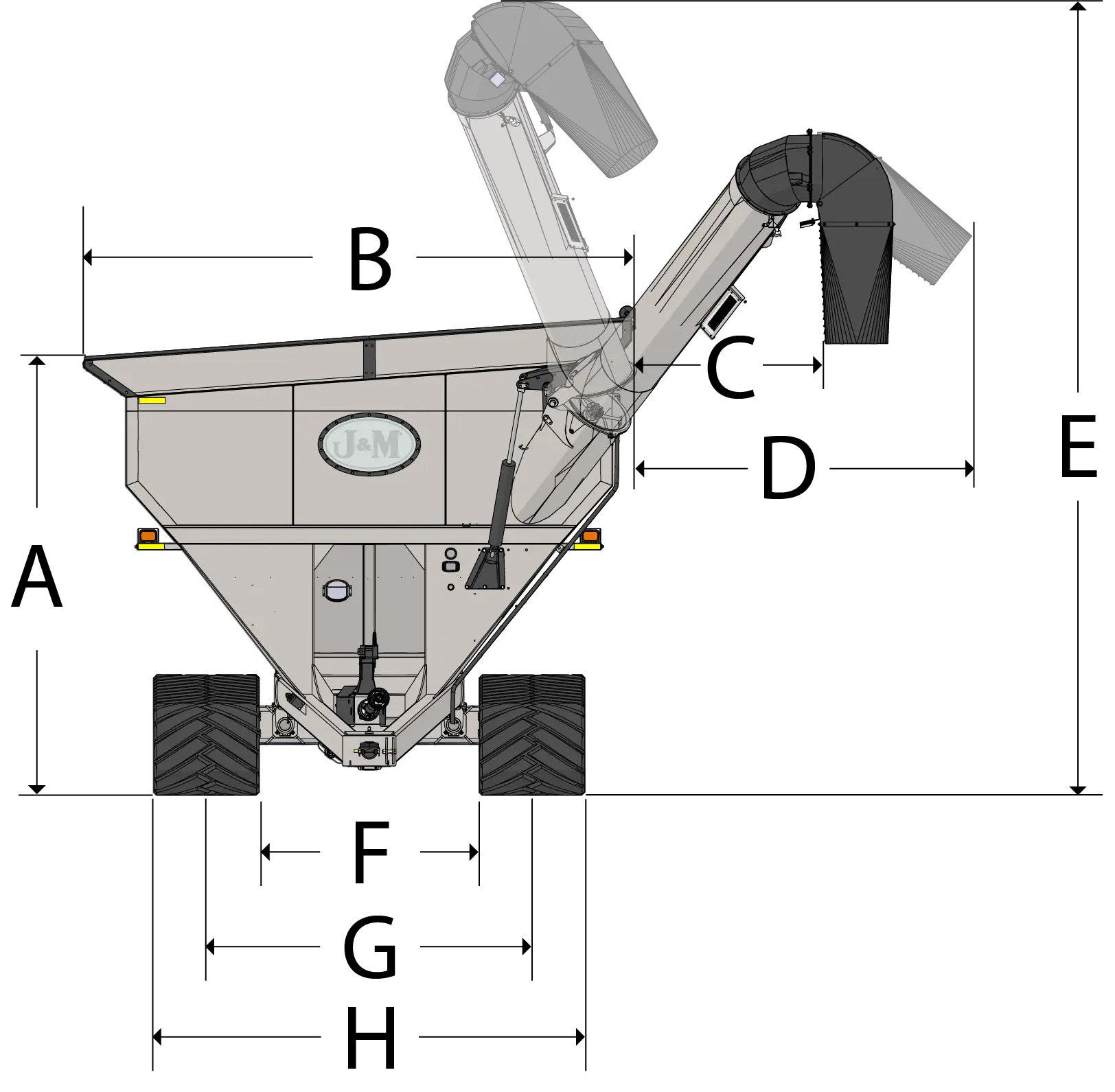

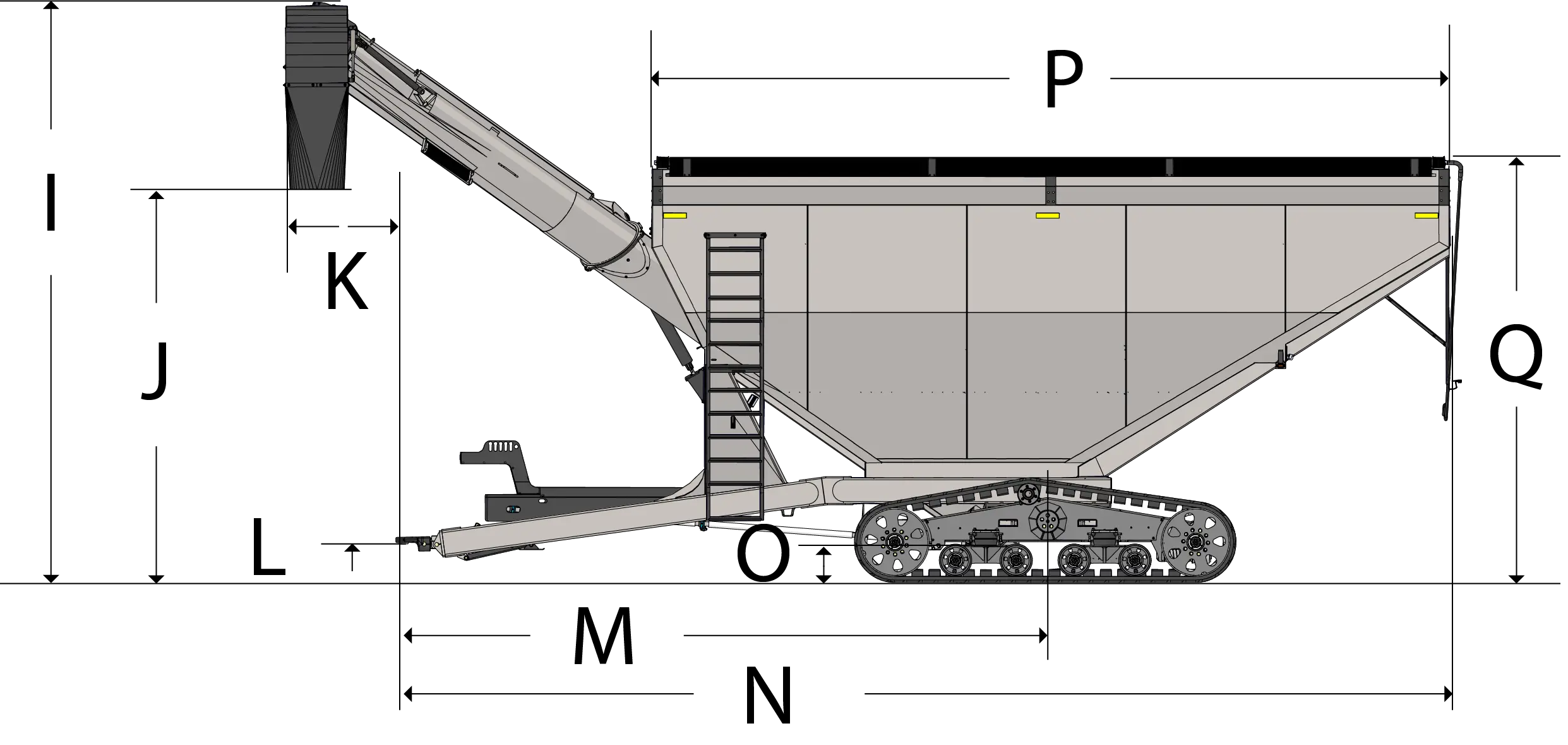

Dimensions
| A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1714 | 11'6" | 13'10" | 6'2" | 10'4" | 23'3" | 6'3" | 9'3" | 12'3" | 19'1" | 13'0" | 4'3" | 1'6" | 20'6" | 33'8" | 1'1" | 26'0" | 12'6" |
| 2014 | 12'7" | 13'10" | 6'2" | 10'4" | 23'3" | 6'3" | 9'3" | 12'3" | 19'1" | 13'0" | 4'3" | 1'6" | 20'6" | 33'8" | 1'1" | 26'0" | 13'7" |
| 2014 Leaner |
12'6" | 15'6" | 6'2" | 10'4" | 23'3" | 6'3" | 9'3" | 12'3" | 19'1" | 13'0" | 4'3" | 1'6" | 20'6" | 33'8" | 1'1" | 26'0" | 13'7" | Measured with 20" hitch height with 36" Stabilizer Trax2 Add 2" of height with 46" Stabilizer Trax2 Add 5" of height with IF1250/50R32 or IF1400/45R42 tires Tip spout has 85" of movement from left to right |
