6000 Series NitroGro™ Nitrogen Applicators

Place Your Nitrogen Where It Counts...When It Counts

Designed to Perform...Built to Last

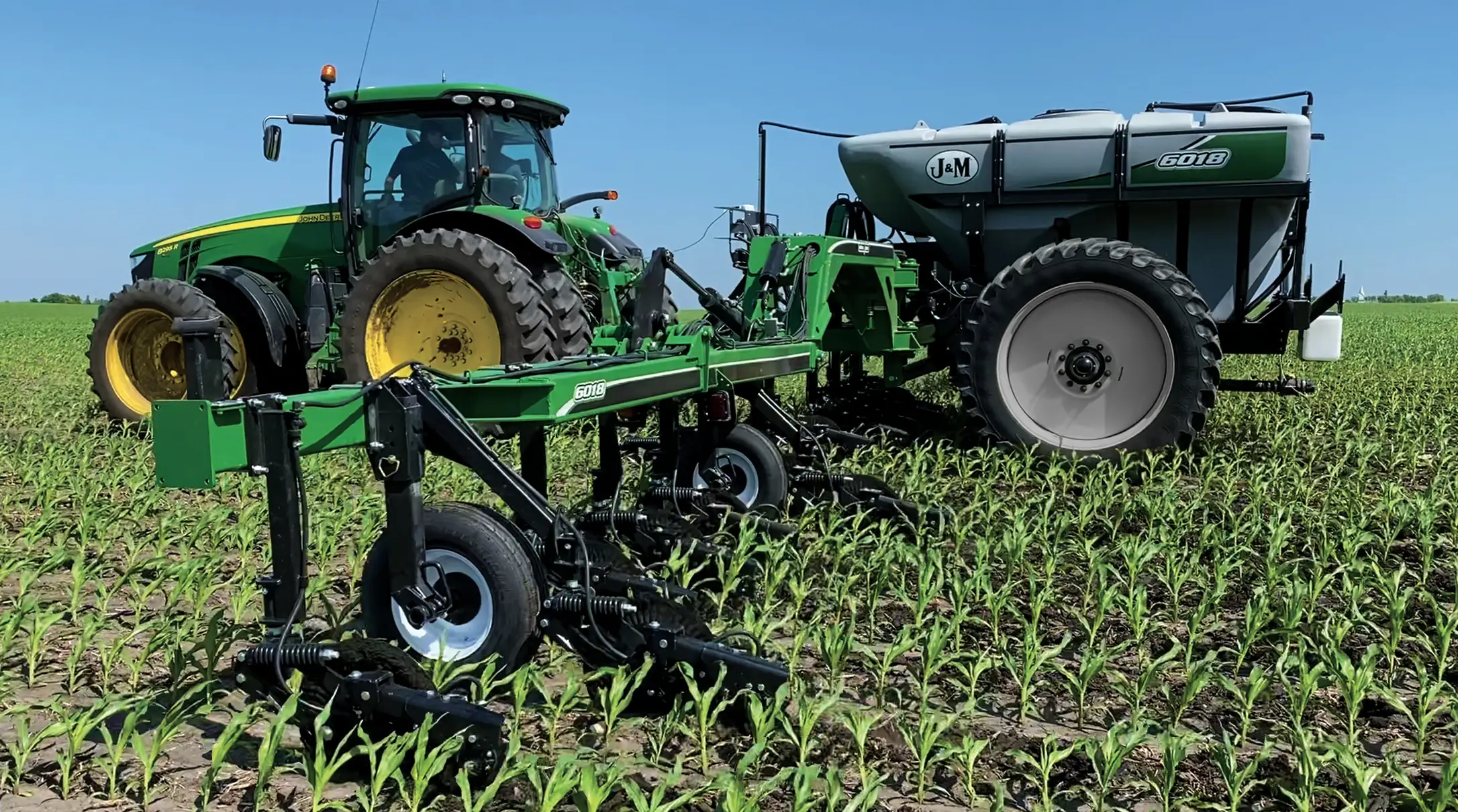

Designed with the farmer in mind, J&M's 6000 Series NitroGro Nitrogen Applicators feature a narrow transport width and a custom designed 1,850 (Model 6018) or 2,600 (Model 6026) gallon tank. The 55' to 62'-4" working widths accommodate coulters placed at 20", 22" or 30" row spacings to suit your farming needs. Choose single wheel or walking tandem dual wheel undercarriage on model 6018. Model 6026 NitroGro applicators are equipped with standard walking tandem dual wheel undercarriage.

6000 Series NitroGro applicators feature a short coupled tongue design for better trailing and less crop damage while turning.

a cutout of a 6000 nitrogen applicator with arms extended at a front 3/4 view.

Industry-Leading Transport Width & Height

nitrogen applicator folded with the view from the front showing its compact design.

Patented Wing Design

6000 Series NitroGro nitrogen applicators have a patented wing design with a customized wheel tank that offers an industry leading 11'-9" transport width and low 9'1" or 10'-8" tank height (11'-10" or 12'-10" overall transport height) for a lower center of gravity and greater stability.

nitrogen applicator folded with the view from the side showing its compact design.

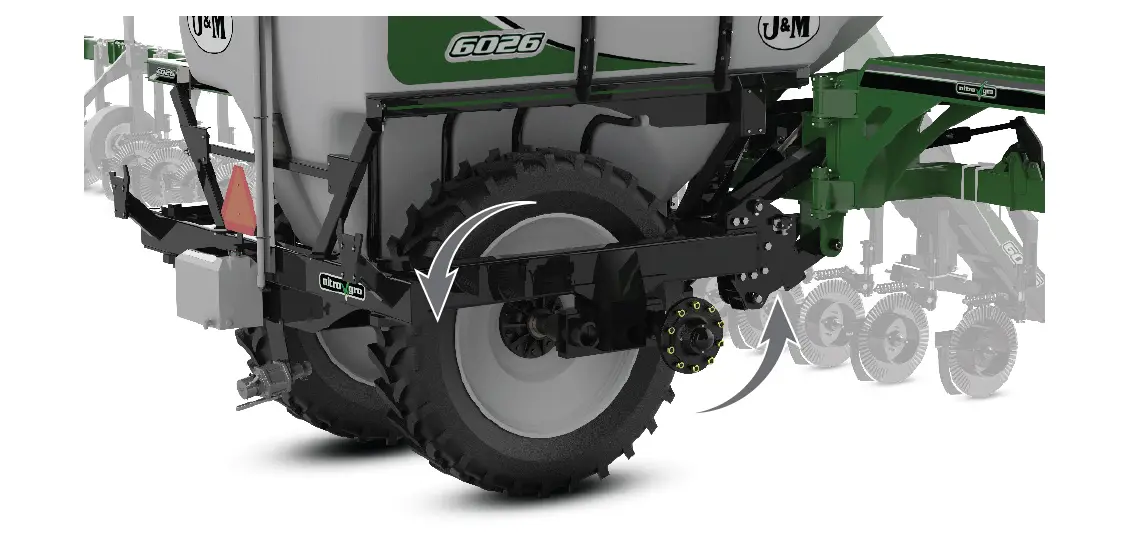

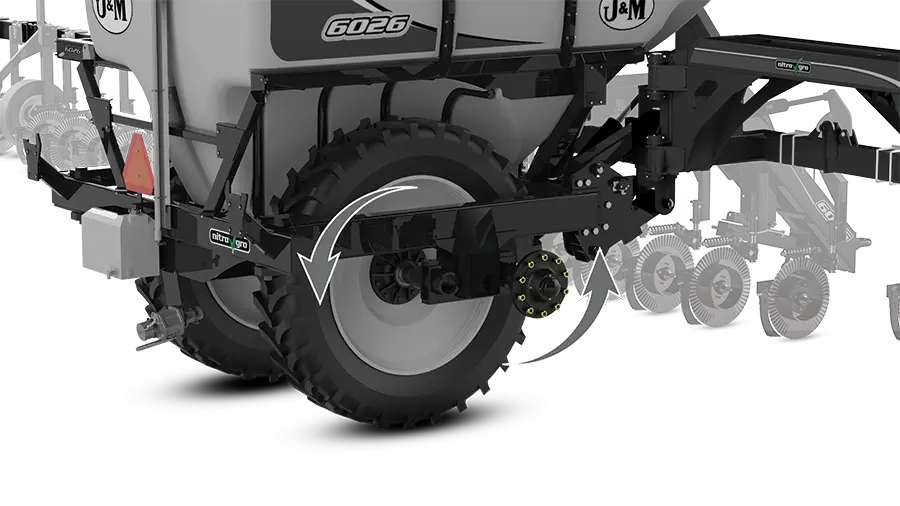

Exclusive Walking Tandem Dual Wheels

nitrogen applicator folded from the front because of its compact design.

Exclusive walking tandem dual wheel undercarriage "walks" over rough and uneven terrain, reducing compaction while allowing the coulters to stay at consistent depths for a more uniform application compared to rigid dual wheel undercarriages.

Standard on 6026 and optional on 6018.

Custom Tank Design

a couple of cut through images of the tank design showing the baffles and unique shape.

1Baffles

Stainless steel baffles keep the weight properly distributed, even over uneven terrain.

2Tank Design

"Nose" tank design keeps the weight forward to ensure the coulters remain at proper depth even in the toughest soils.

3Tank Sump

Extra deep 10-gallon sump to ensure the pump remains primed.

6000 Applicator More Features

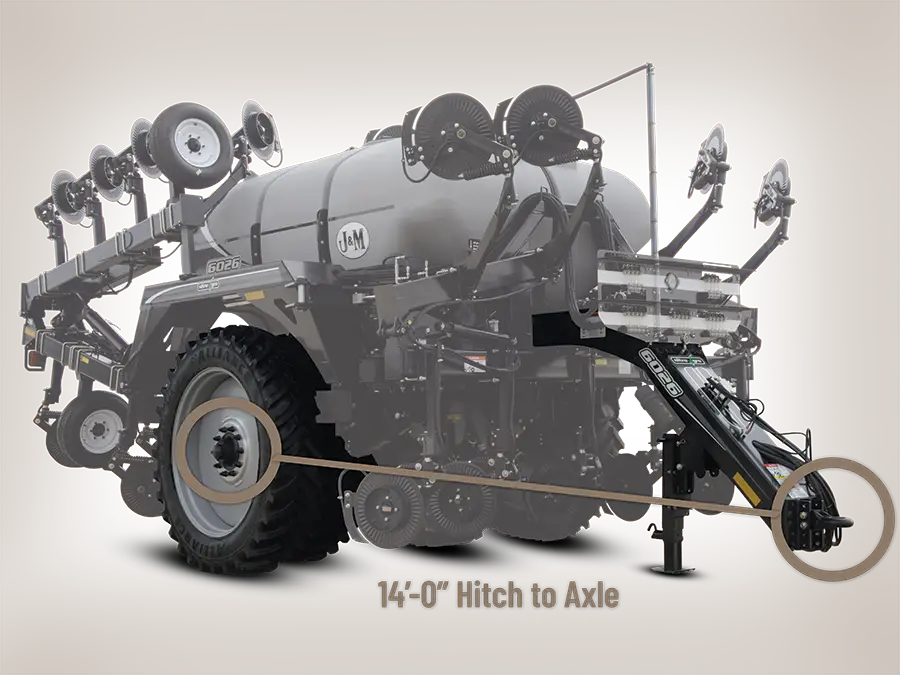

a cutout of a nitrogen applicator showing the short distance from the hitch to the axle.

Shortest hitch-to-axle length (14'-0") allows the applicator to follow directly behind the tractor, creating just one set of tracks that reduces crop damage and eliminates the need for a steerable hitch option.

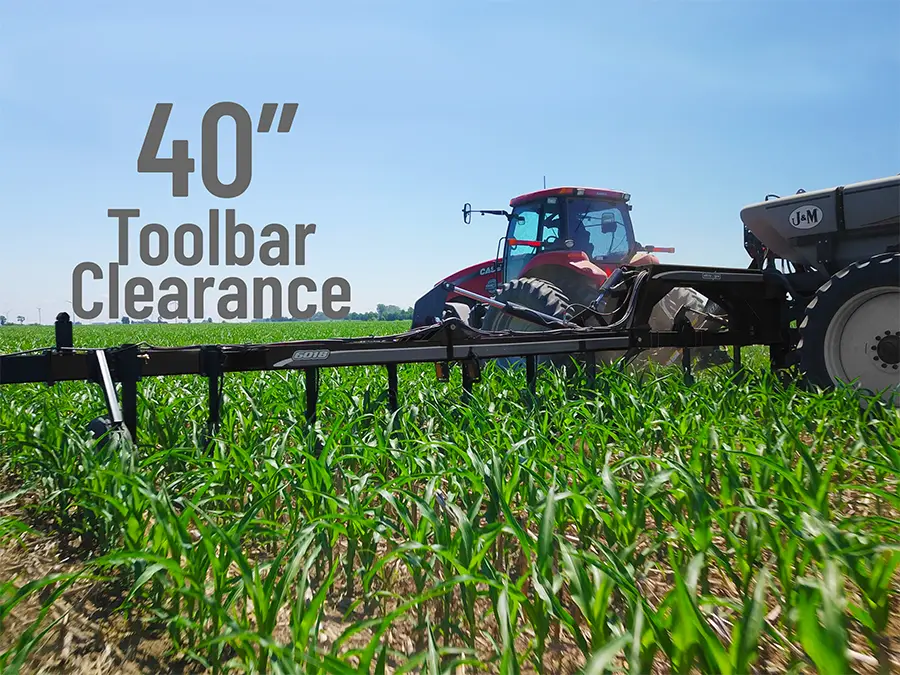

an image of an applicator in the field being pulled through tall young corn with the 40 inch toolbar clearance highlighted.

NitroGro 6000's industry best 40" toolbar clearance extends your application window and eases worry of getting into the field late.

An image highlighting the degree of wing movement up and down on a 6000 series nitrogen applicator.

Parallel linkage toolbar design keeps the coulters and knives in correct position to the ground at all times. Wing sections allow 15° upward and 10° downward movement for consistent application over uneven terrain.

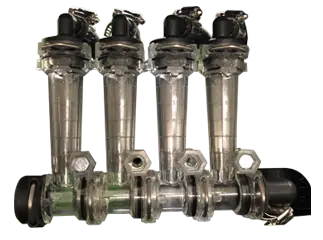

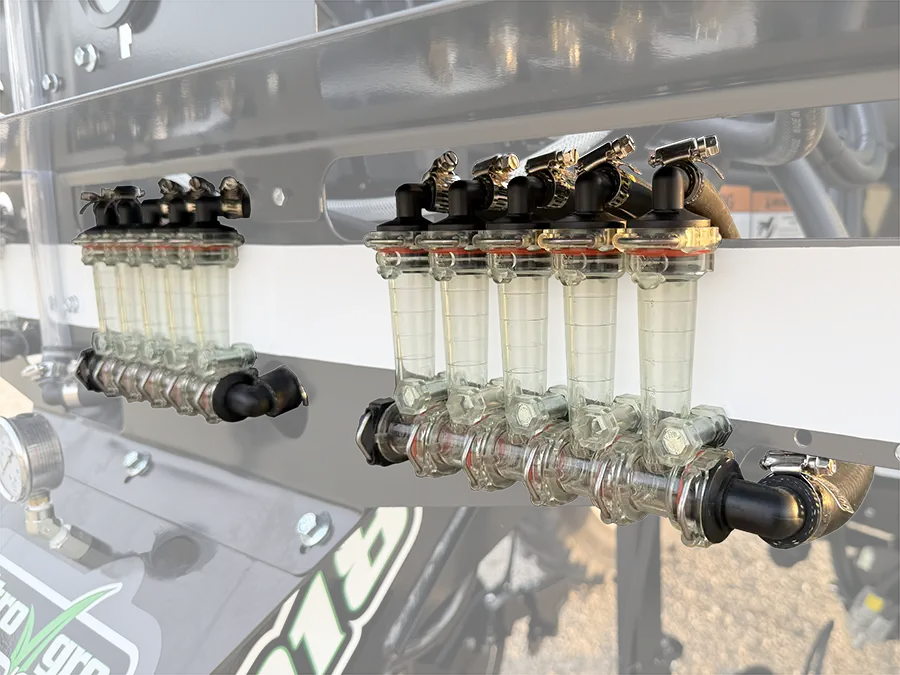

close up of the flow monitors on a 6000 series nitrogen applicator.

Standard flow monitors allow the operator to see the rate of flow to each coulter using a floating ball located inside the transparent inspection tube. Each coulter is connected to the flow monitors with a separate supply hose.

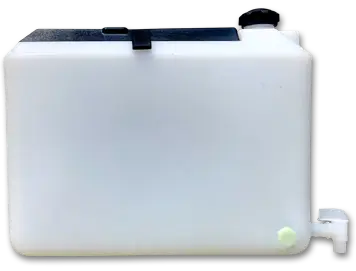

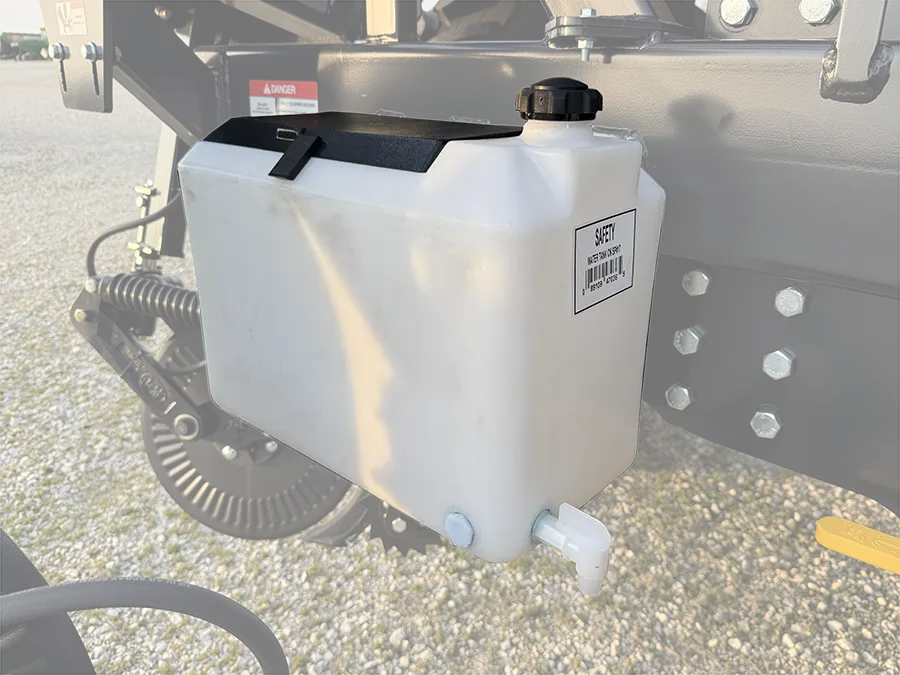

wash tank on a 6000 series nitrogen applicator.

Remove chemical residue from your hands with this 9 gallon wash tank, located at an easily accessible height.

Miscellaneous Features

Easily-accessible jack that pins away for storage
High-strength toolbar built with double 5"×7" tubing
Parallel linkage toolbar design keeps the coulters and knives in correct position to the ground at all times
Diaphragm shut-off valves at each coulter reduces fertilizer loss and crop "burn" damage on end rows
Choice of knife or injection delivery
Coulters feature heavy-duty square tube mounting pillars with high-strength ⅝" U-bolts and 8-bolt hubs on a 60° swivel for maximum performance
Choose from two coulter options: straight blade with ripple or ⅝" wavy
Tool-less gauge wheel height adjustment
Recommended horsepower: 275 hp to 410 hp
Greaseless toolbar bushings for reduced maintenance

NitroGro 6000 Series Nitrogen Applicator Options

Para-Linkage Coulters

J&M's Para-Linkage coulter design keeps the applicator knives consistently in the ground while going over rocks and hard soil. As the Para-Linkage coulter rises, the knives rise at the same rate as the disc to ensure consistent fertilizer application at the desired depth. On traditional coulters, as the disc moves over an obstacle the knives swing up at an arc. This causes the knife depth and the fertilizer application to be inconsistent.

Para-Linkage coulters feature greaseless poly-bushings at all pivot locations to reduce maintenance and fatigue.

Learn more about Para-Linkage Coulters

Row Closers

Adding row closers to your NitroGro seals the nitrogen in place, ensuring more is absorbed by the plant and less is wasted.

Learn more about row closers

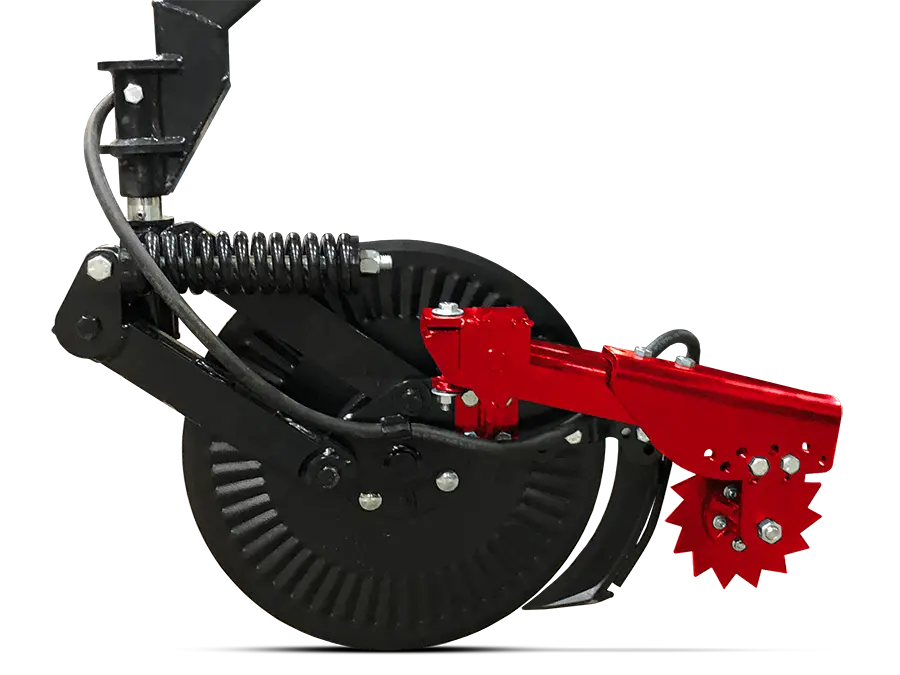

a cutout image of a coulter with the row closer attachment highlighted red.

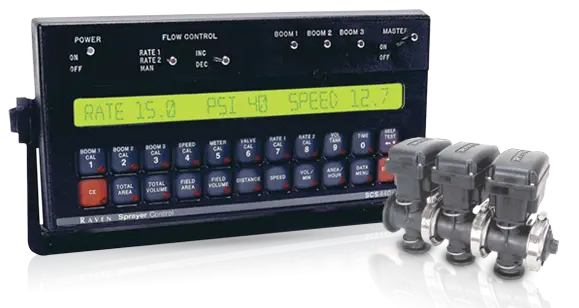

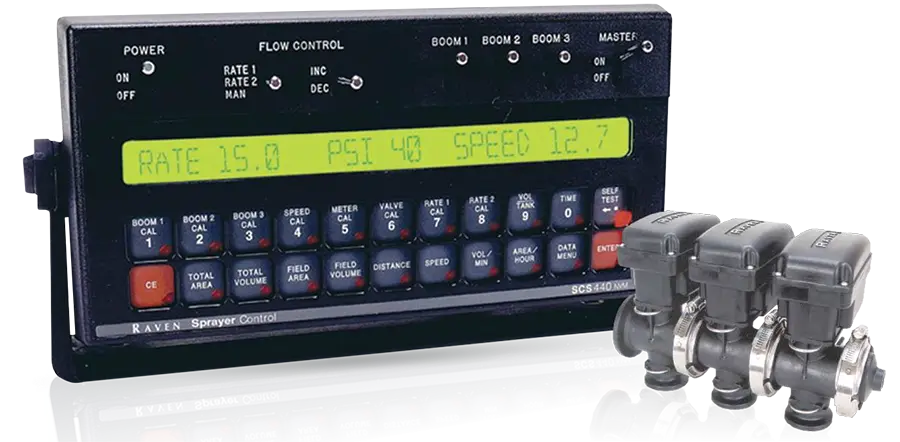

Raven Controller

The Raven SCS 450 automatically maintains the rate regardless of speed changes. The SCS 450 consoles include a 10-year non-volatile memory to maintain settings even with an extended loss of power.

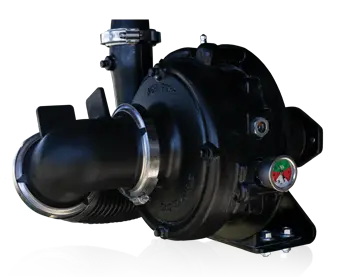

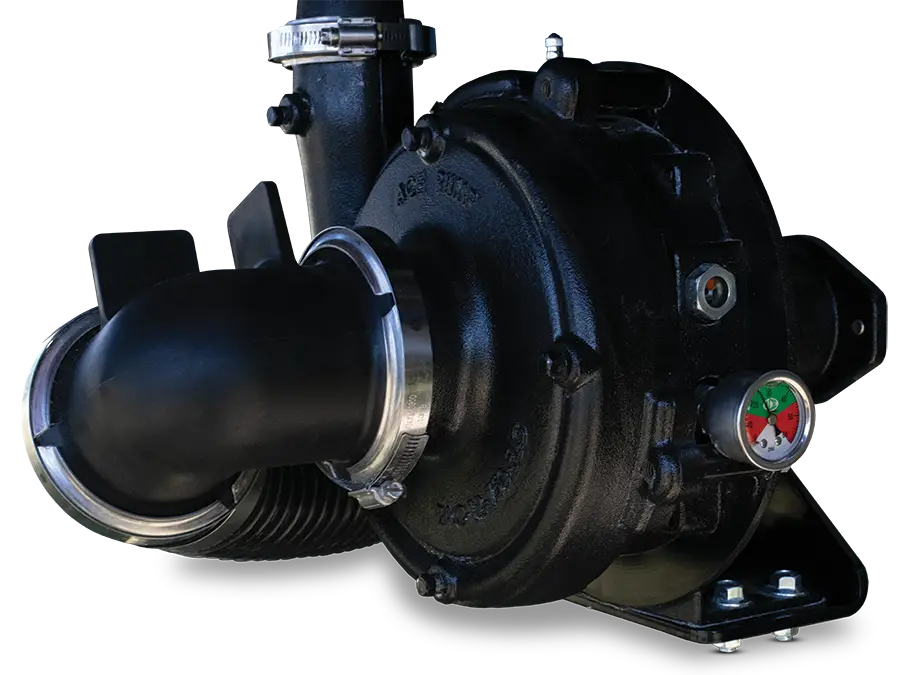

Powerful ACE 750 PWM Pump

Upgrade to an ACE 750-22M PWM pump in place of standard ACE 155-206F PWM pump. The ACE 750 pump accommodates a higher volume. The PWM solenoid gives you control with more precision.

a 750 pump cutout for a 6000 series nitrogen applicator.

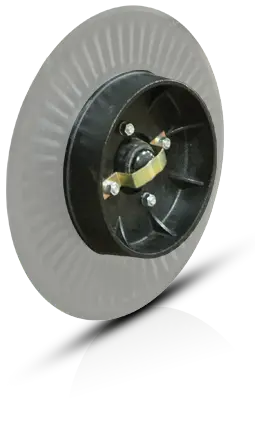

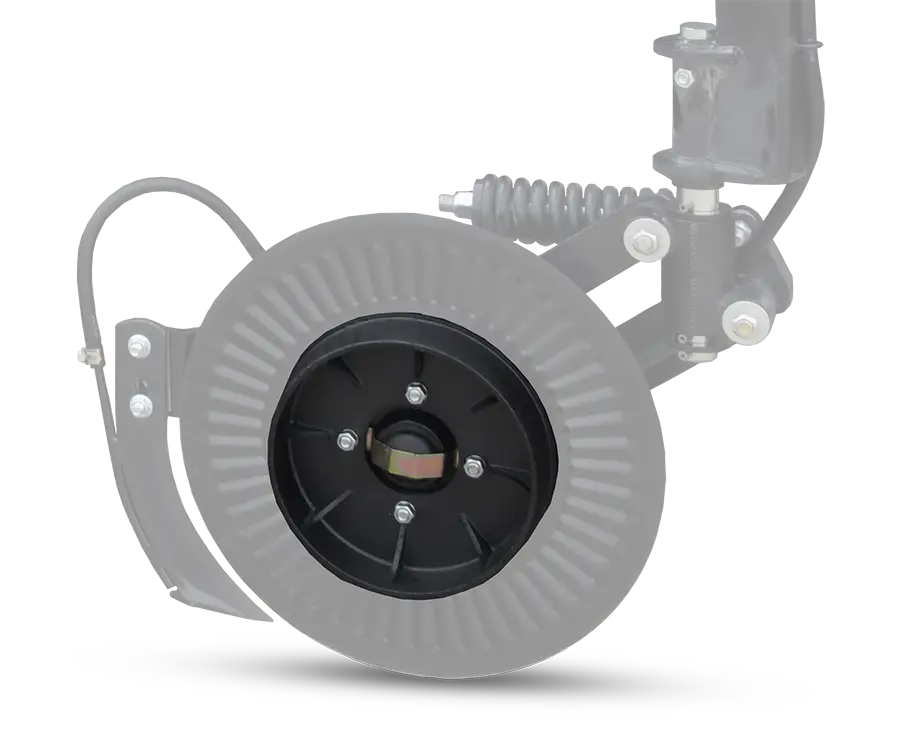

Depth Control Spool

Ensure a consistent coulter depth with these optional 4" depth control spools.

6000 Series NitroGro Specs

	Nitrogro 6018	NitroGro 6026
Capacity	1,850 Gallons	2,600 Gallons
Base Width	60'-0"	60'-0"
Transport Width	11'-9"	11'-9"
Transport Length	25'-0"	25'-0"
Transport Height	11"-10"	12"-10"
Height to Top of Tank	9"-1"	10"-8"
Empty Weight	18,500 lbs	19,000 lbs
Hitch to Axle	14'-0"	14'-0"
Toolbar Ground Clearance	40"	40"
*Other row spacings available upon request.
