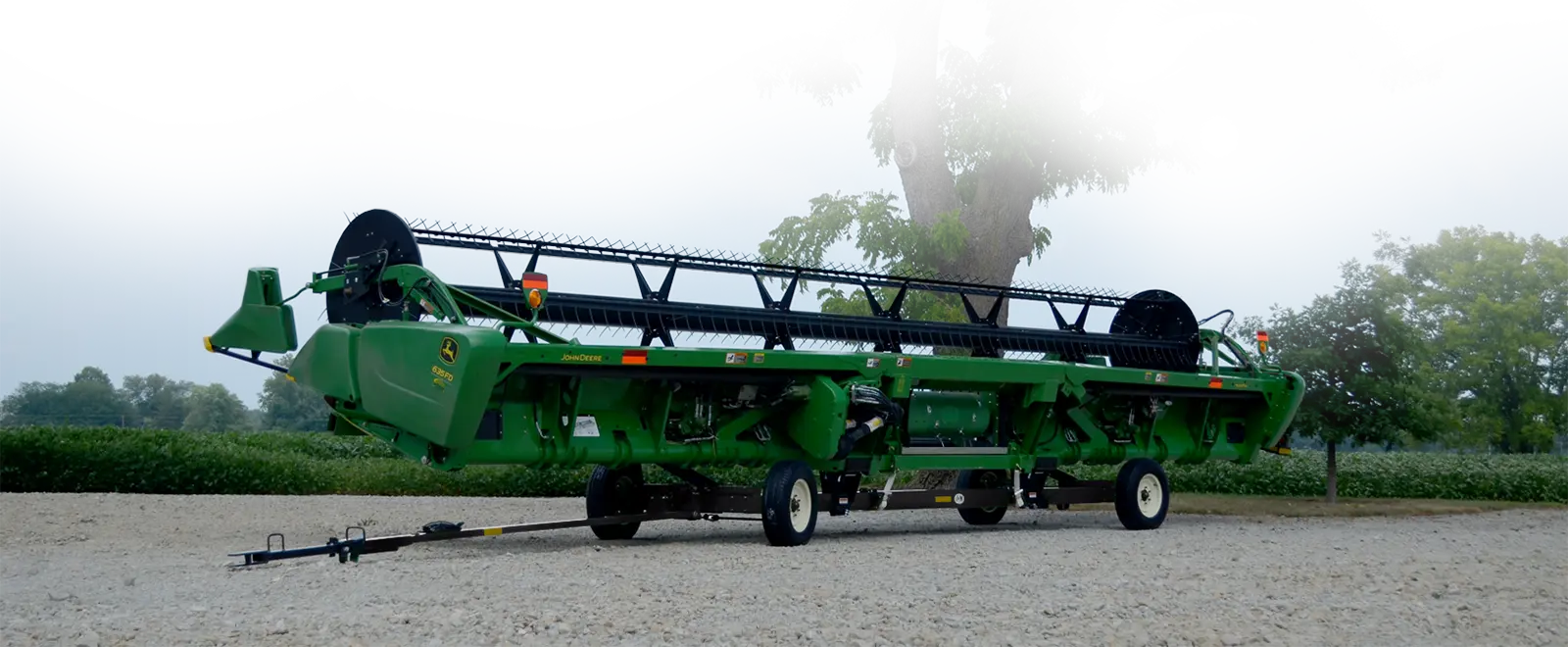

Low‑Profile Header Transports
Built for More Clearance
HT‑974 Series header transports feature an economical, low‑profile design with front steering for quick and easy towing. Now also available in Heavy‑Duty 20' transports for folding corn heads.
Standard Transport
25', 30', and 36' Transports

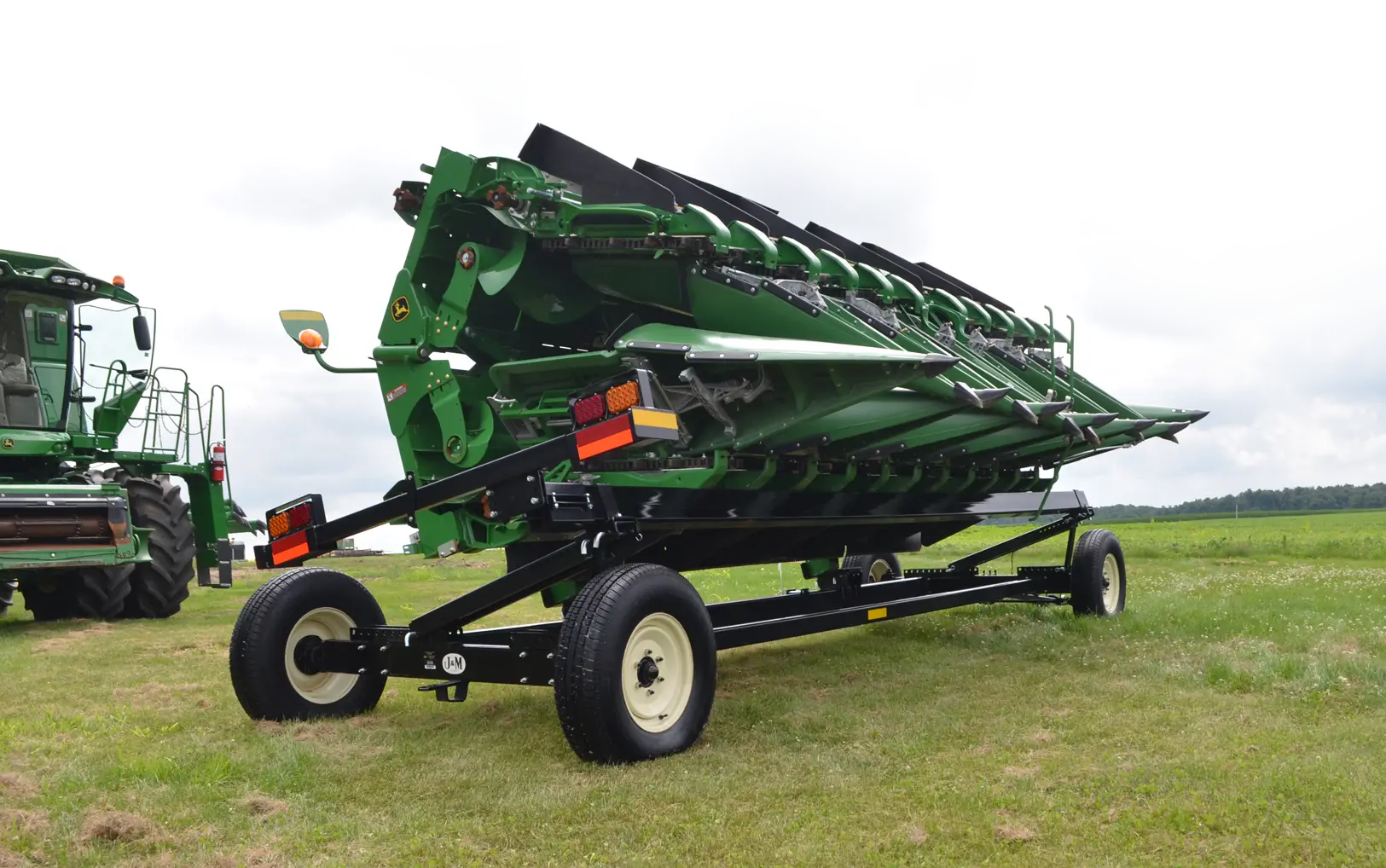

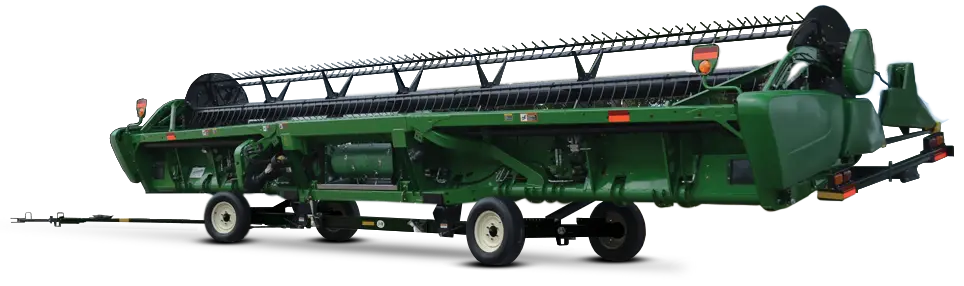

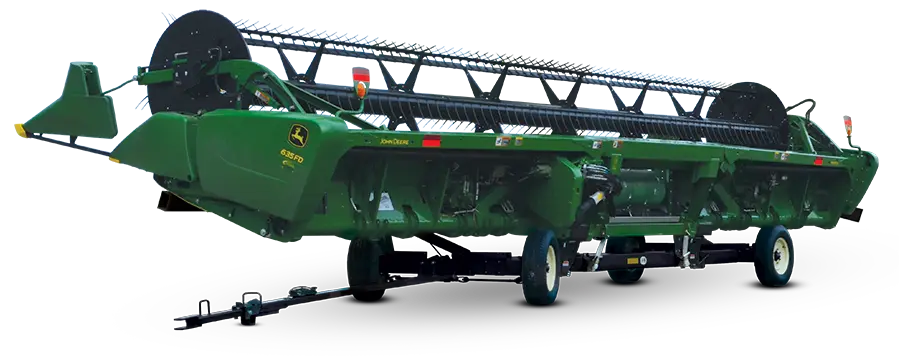

Designed for combines that have limited header travel, the standard duty low‑profile header transports come in 25', 30', or 36' long upper bar options. These strong, versatile transports have a 7,500‑11,000 lbs net carrying capacity.
Heavy-Duty Series for Folding Heads
20' Transports

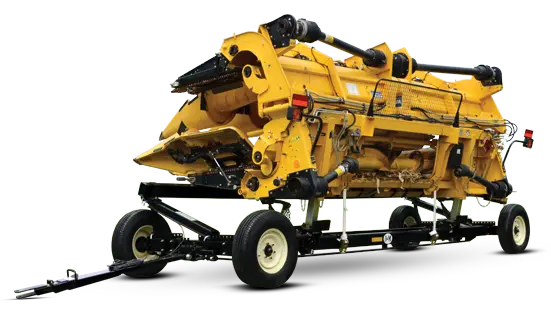

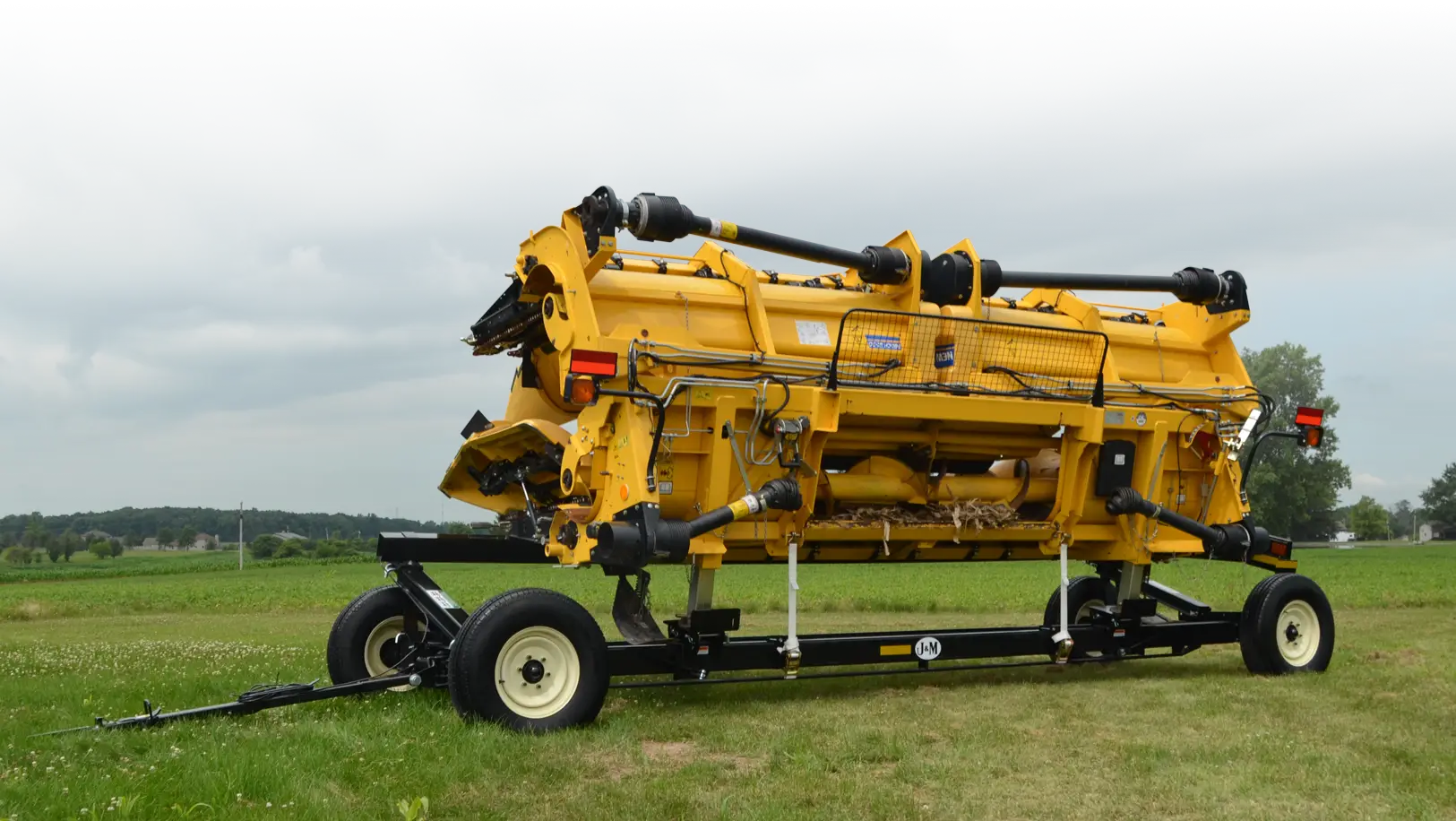

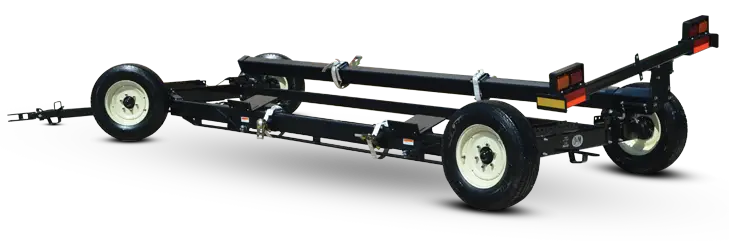

HT-974-20 transports are made for folding corn and forage harvester heads. The compact size and heavy duty construction features a thick wall upper bar and trussed lower bar to accommodate the extra weight of folding heads. The Heavy-Duty Series is available in a 20' upper bar. The low overall height allows the header to be placed on the transport with ease.

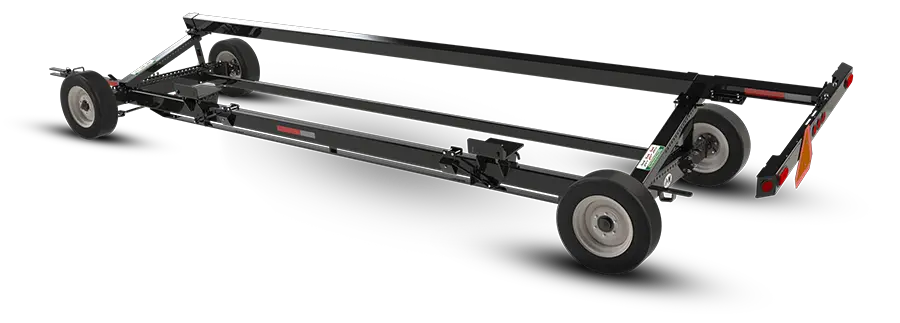

Model HT-974-20
- Transports folding corn heads (John Deere, Case IH, New Holland, Drago, and Geringhoff)
- Accommodates heads with and without stalk choppers
- Shorter tongue
- Truss under lower bar and thicker wall on upper bar for heavier capacity
- Lower light bar to clear corn heads

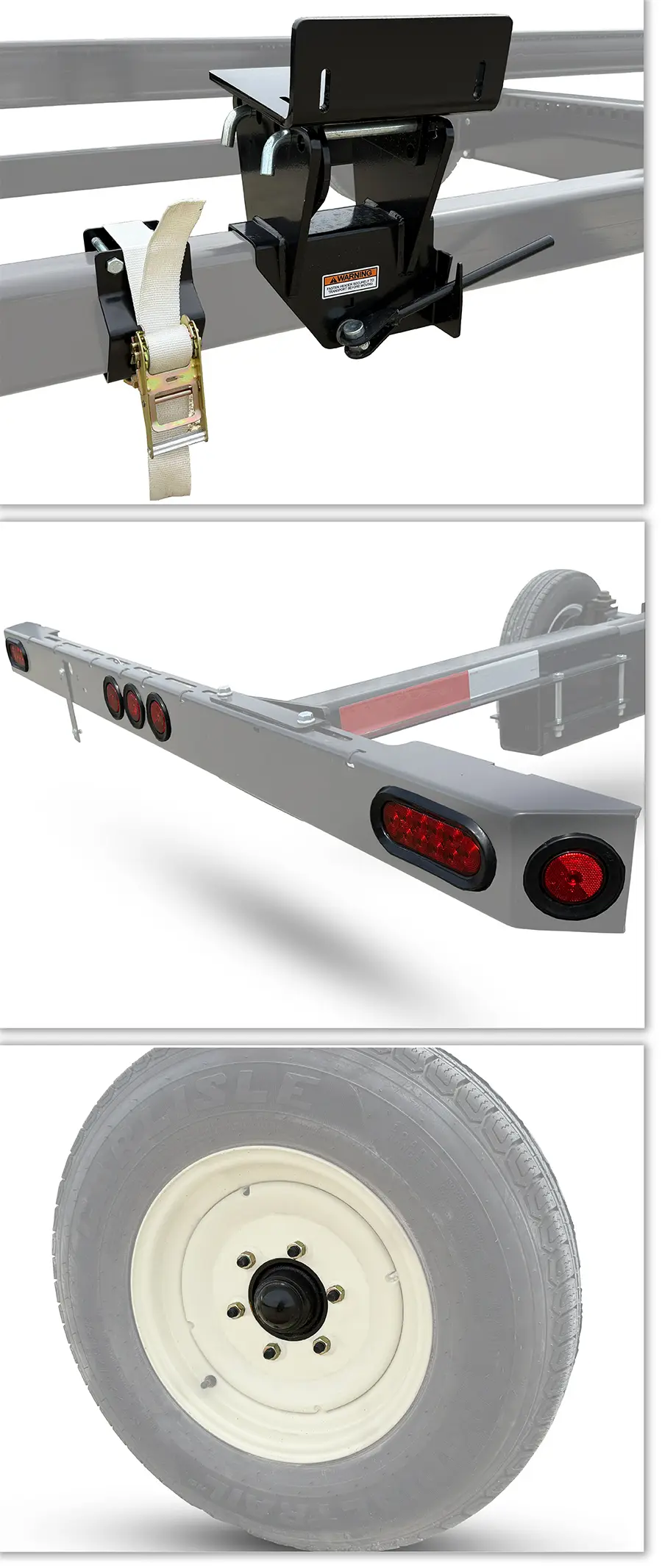

Standard Features
Standard Features
HT-974
- For heads up to 25'
- 74" Center tread width

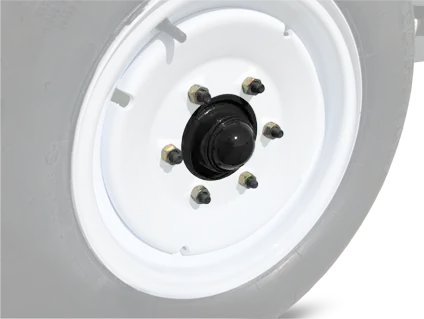

- 6 Hole hub
- 25' Steel upper bar
- Quick hitch tongue with spring assist
- Adjustable mounts

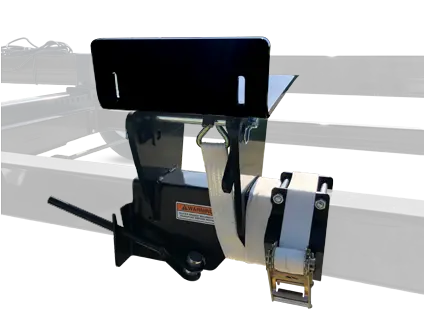

- Patented tie-down brackets with hook and strap assembly
- Light package
- 14"×6" wheels and 215/75R14D new tires
HT-974L-30
- For heads up to 30'
- 16' 6" Wheel base
- 74" Center tread width
- 6 Hole hub
- 30' Steel upper bar
- Quick hitch tongue with spring assist
- Adjustable mounts
- Patented tie-down brackets with hook and strap assembly
- Light package
- 15"×6" wheels and 225/75R15E new tires
HT-974XL-36
- For heads up to 36'
- 74" Center tread width
- 6 Hole hub
- 36' Steel upper bar
- Quick hitch tongue with spring assist
- Adjustable mounts
- Patented tie-down brackets with hook and strap assembly
- Light package
- 15"×6" wheels and 225/75R15E new tires
HT-974-20
- For John Deere, Case IH, New Holland, Drago, and Geringhoff folding corn heads
- Shorter tongue
- Heavier capacity
- Truss under lower bar
- Thicker wall on upper bar
- 15"×6" wheels and 225/75R15E new tires
Low Profile Transport Options

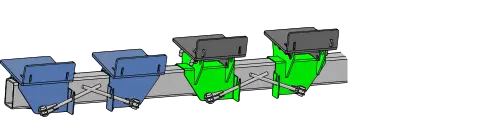

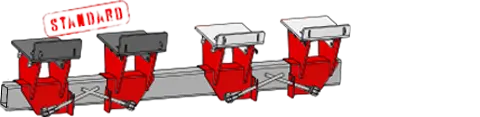

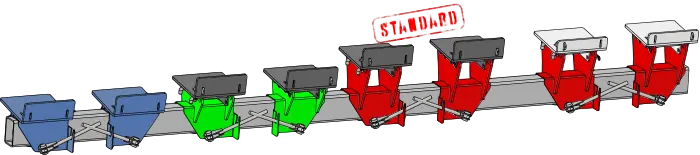

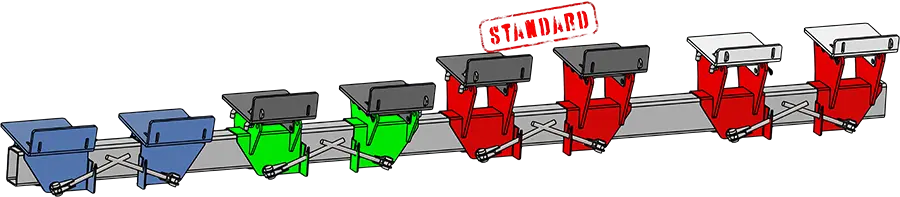

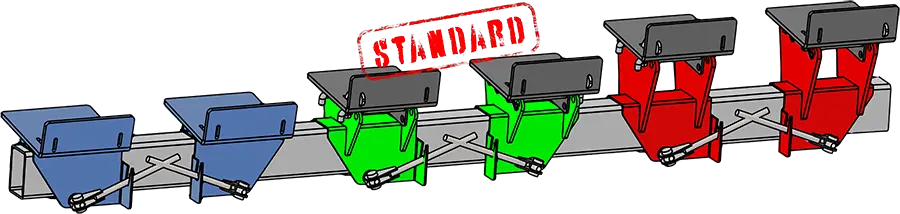

Header Mount Options
HT‑974‑25
HT‑974L‑30
HT‑974XL‑36
HT‑974‑25 | HT‑974L‑30 | HT‑974XL‑36
Extra low profile mounts
Low profile bottom mounts and upper mounts
High profile bottom mounts and upper mounts
High profile bottom mounts and low profile upper mounts
*Compatible with Yetter Devastator
HT-974-20
HT-974-20
Extra low profile mounts
Low profile bottom mounts and upper mounts
High profile bottom mounts and upper mounts
More Options
- Folding tongue in place of standard tongue
- Safety chain
Low Profile Header Transports Specs and Dimensions
SPECIFICATIONS
HT–974 |
HT–974L-30 | HT–974XL–36 | HT–974–20 |
|
|---|---|---|---|---|
| Weight | 1,540 lbs | 1,755 lbs | 1,830 lbs | 1,725 lbs |
| Capacity (Net) | 7,500 lbs | 10,700 lbs | 10,620 lbs | 11,000 lbs |
| Spindle Size | 1¾" Diameter | 1¾" Diameter | 1¾" Diameter | 1¾" Diameter |
| Wheel Size | 14"×6"– 6 Bolt | 15"×6"– 6 Bolt | 15"×6"– 6 Bolt | 15"×6"– 6 Bolt |
| Tire Size | 215/75R14–D | 225/75R15–E | 225/75R15–E | 225/75R15–E |
| Steel Upper Bar | 4"×6" | 4"×6" | 4"×6" | 4"×6" |
| Upper Bar Length | 25' | 30' | 36' | 20' |
| Box Channel Axle Frame | 6" | 6" | 6" | 6" |
DIMENSIONS
HT–974 |
HT–974L-30 | HT–974XL–36 | HT–974–20 |
|
|---|---|---|---|---|
| A | 12'–0" | 15'–0" | 17'–0" | 6'–2" |
| B | 27'–0" | 32'–0" | 38'–0" | 20'–5" |
| C | 6'–2" | 6'–2" | 6'–2" | 6'–2" |
| D | 33'–6" | 39'–9" | 44'–9" | 27'–1" |
| E | 13'–10" | 16'–6" | 16'–6" | 18'–4" |
