Front Fold Grain Unloaders
BP-30
Capacity: 30,8 m3 | Auger Diameter: 45,7 cm | Unload Rate: 11,9 t/min
BP-40
Capacity: 40,5 m3 | Auger Diameter: 40,7 cm | Unload Rate: 7,6 t/min
The unique auger design of J&M’s 24t and 31t grain Unloaders puts the unloading spout next to the tractor cab, making it easier for the operator to see what’s going on while unloading. The hydraulic Flow Control Spout makes topping off the trailer quick and easy for even the most novice operators. Because the auger stores along the front of the grain cart and not along the side, the operator can easily see the entire folding sequence. No upper auger indicators are required. No other grain cart offers this level of simplicity for the operator.
Harvest season rarely goes according to plan, but nothing is more dependable when it comes to getting the job done than the trusted line of J&M front-folding corner auger grain Unloaders. The single auger design, rugged tank and undercarriage construction has been helping farmers hold more, travel faster and unload quicker for four decades, keeping them on the go even in the most extreme conditions.

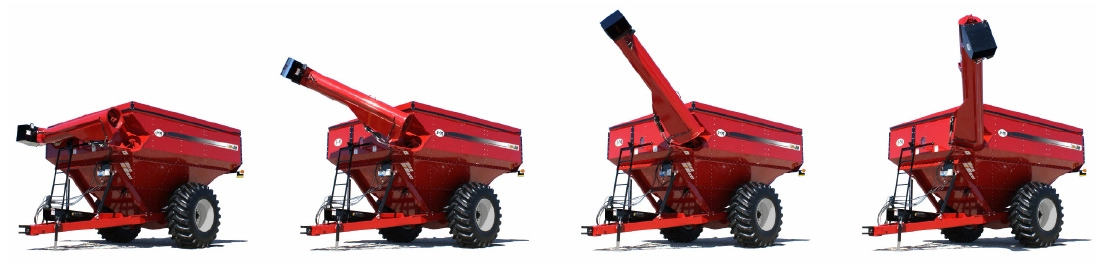

Front Folding Auger Design Offers Total Visibility
Designed with the operator in mind, the upper auger is positioned in the corner and extends toward the tractor cab, creating a closer, clearer view when unloading grain.
Excellent Cleanout
All J&M grain unloaders have built a solid reputation for excellent cleanout...even in high moisture grain. The secret is in the tank design, allowing the grain to enter the sump at different speeds. This creates a boiling effect that prevents bridging in high moisture grains.

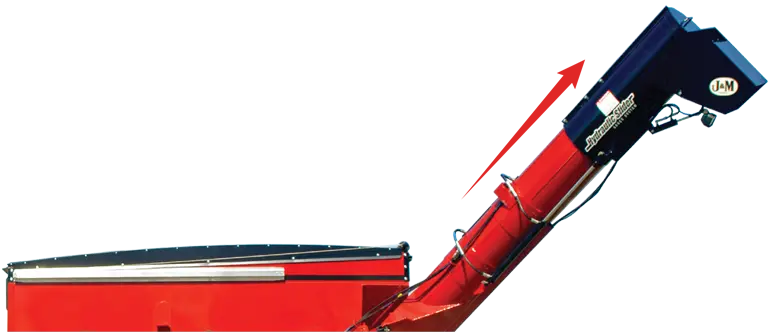

Hydraulic Sliding Upper Auger
A hydraulic sliding upper auger extends for added unloading height and side reach, then retracts to store within the width of the cart.
SuperEdge Flighting Balanced Within 28 Grams
All J&M chaser bins feature thick flighting with a patented SuperEdge that puts more material where it is needed, on the outer edge. In addition, we reinforce the flighting at critical wear points to increase life and durability. All augers are balanced to within 28 grams. Precision manufacturing ensures a quiet running system that extends overall auger life and performance by reducing vibration to the drive system.

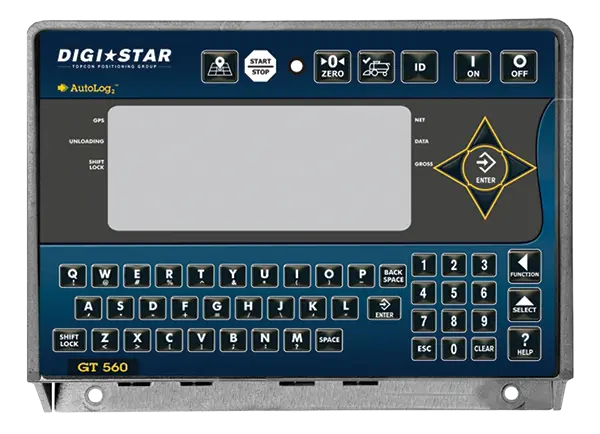

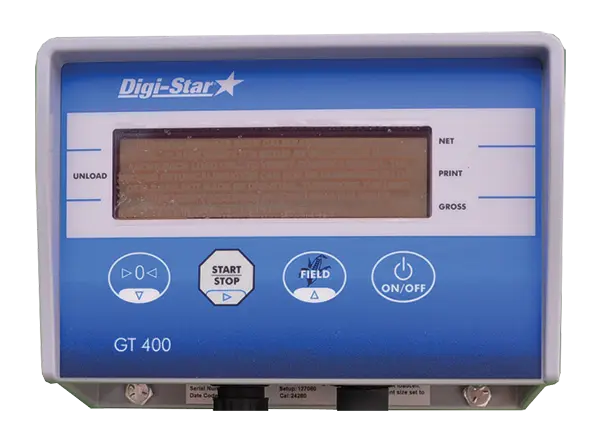

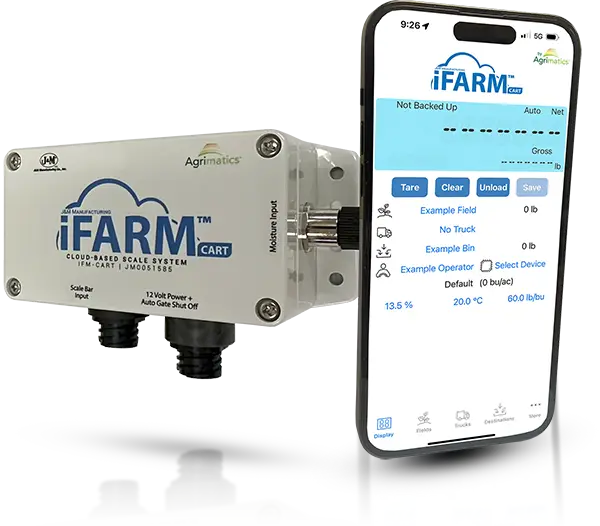

Scale Options
J&M scale systems allow you to accurately track your crops, safely load the semi within legal limits, and quickly document crop sharing and insurance records. A scale system can also help plan future soil preparations, plantings, and fertilizing needs, ensuring you spend only what you need. Used correctly, a scale system can quickly pay for itself.

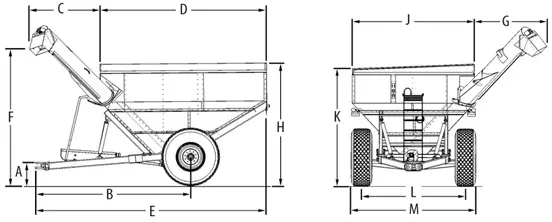

Dimensions
| Model BP-30 | Model BP-40 | |
|---|---|---|
| A | 48,2 cm | 45,7 cm |
| B | 446 cm | 574 cm |
| C | 193 cm (Standard) 221 cm (with HS-18) 235 cm (with HS-18XL) |
237 cm (Standard) 275 cm (with HS-18) 294 cm (with HS-18XL) |
| D | 487,7 cm | 670,6 cm |
| E | 670 cm | 901,7 cm |
| F | 379 cm (Standard) 412 cm (with HS-18) 429 cm (with HS-18XL) |
410 cm (Standard) 442 cm (with HS-18) 455 cm (with HS-18XL) |
| G | 221 cm (Standard) 259 cm (with HS-18) 256 cm (with HS-18XL) |
181 cm (Standard) 212 cm (with HS-18) 225 cm (with HS-18XL) |
| H | 350,5 cm | 370,8 cm |
| J | 358,1 cm | 358,1 cm |
| K | 337 cm | 353,1 cm |
| L | 304,8 cm | 289 cm-304cm |
| M | 381 cm | 380 cm-431 cm |
Specifications
| Model BP-30 | Model BP-40 | |
|---|---|---|
| Capacity | 23,8 t (30,8 m3) | 31,3 t (40,5 m3) |
| Auger Diameter | 45,7 cm | 45,7 cm |
| Unload Rate | 11,3 t/min | 11,3 t/min |
| Wheels (2) | 27×32 or 30×32 | 30×32 or 44×32 |
| Tires (2) | 30.5×32 or 900/60R32 | 900/60R32 or 76×50.00 |
| Spindles (2) | 11,4 cm Diameter | 11,4 cm Diameter |
| Tongue Weight Empty Loaded |
575 kg 1700 kg |
1,300 kg 1900 kg |
| Total Weight | 5,812 kg | 6,297 kg |
