LX SpeedTenders – Increased Efficiency
Video shows the capabilities of the LX SpeedTenders with the optional premium features
J&M’s new LX Series SpeedTenders™ have elevated the best seed tender on the market to a whole new level. When we set out to redesign our tender, we focused on the details to enhance the user experience and increase planting efficiency. No one change makes the LX Series the greatest, it is the culmination of small changes that make a big difference.
The advanced automated features make controlling and maneuvering the conveyor as simple as pressing a button, greatly reducing user fatigue. Get the best possible ride quality for your operation with the multiple chassis options, including the new dual wheel tandem axles. When it is time to roll or unroll the tarp, you will find the new torsion tensioned roll tarp is effortless to operate. With all these changes and many more, there really isn’t another tender on the market that is quite like the new LX Series SpeedTenders. Choose between the 390 and 425 models.
Improved Tank Design
- Larger capacity with the lowest center of gravity
- 390 models have a 10" shorter unload height than like competitor models

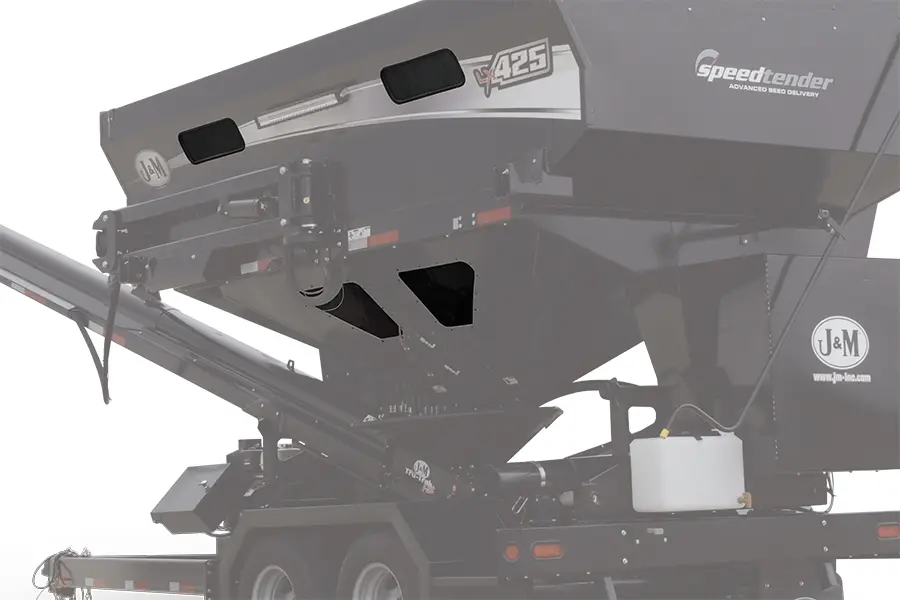

- Larger viewing windows
- Low tank clearance, making filling safer and easier

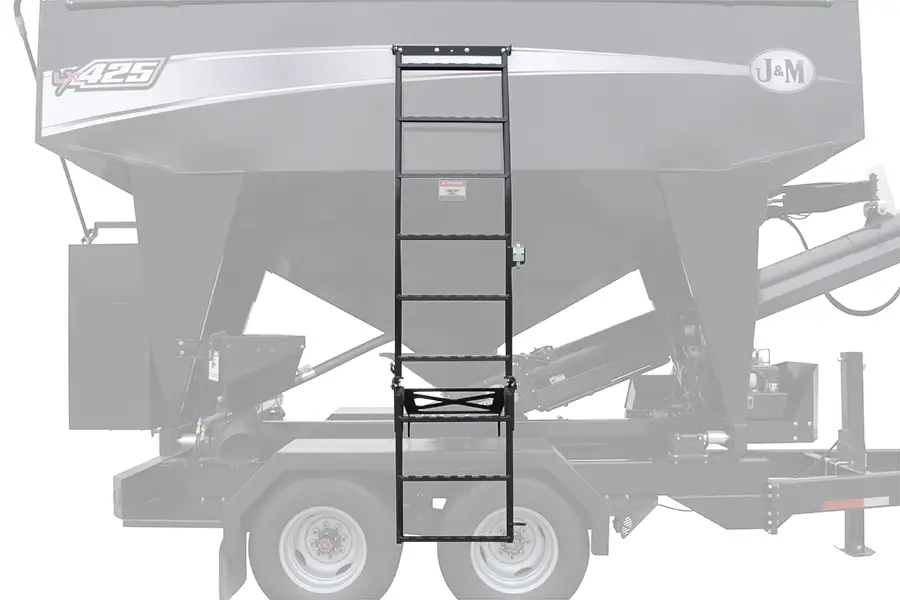

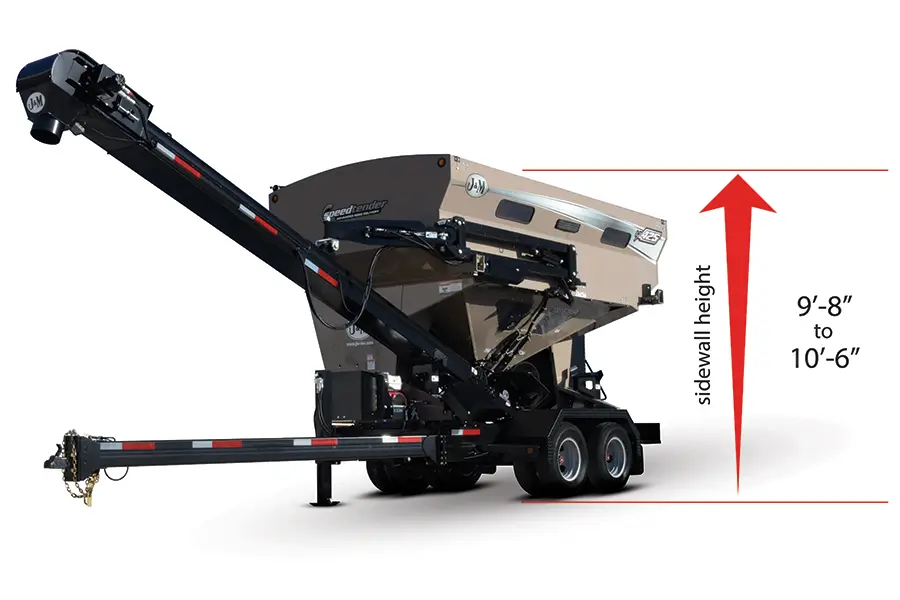

- New anti-slip ladder that deploys away from the tank and fender for greater toe clearance
- New steeper accelerated clean-out slopes near doors for better cleanout
- In-tank lighting
Standard Conveyor Advancements

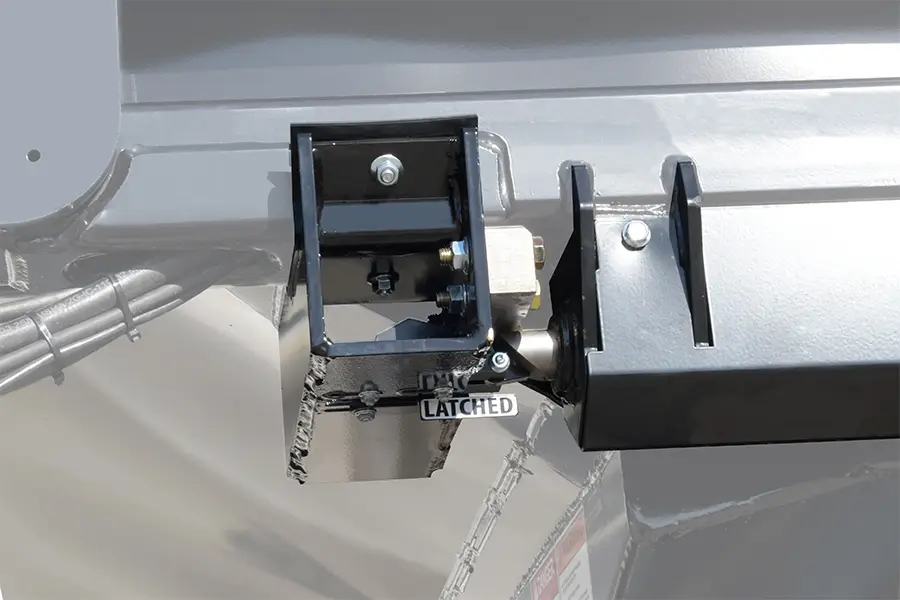

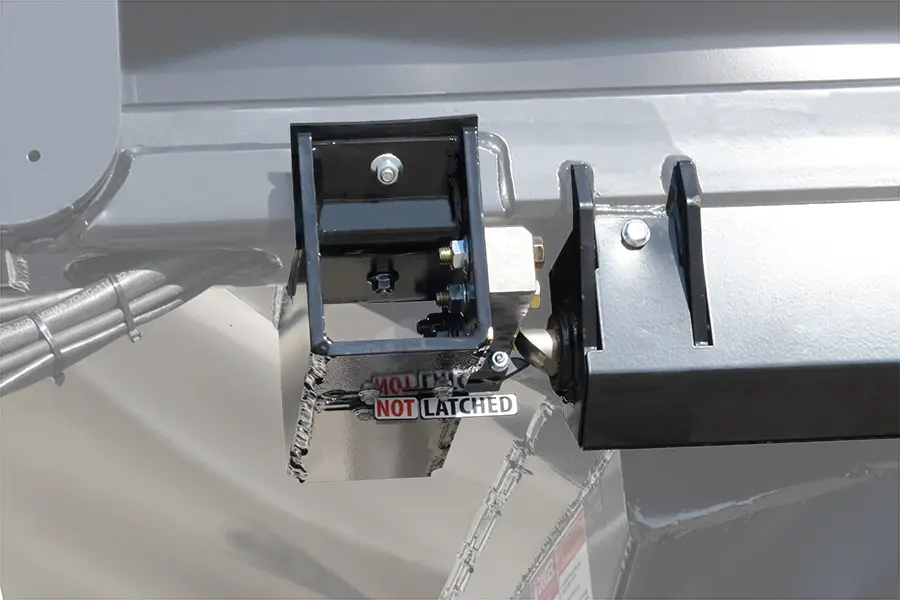

- Automatically latch and unlatch the conveyor
- Securely keeps the conveyor in place during transport

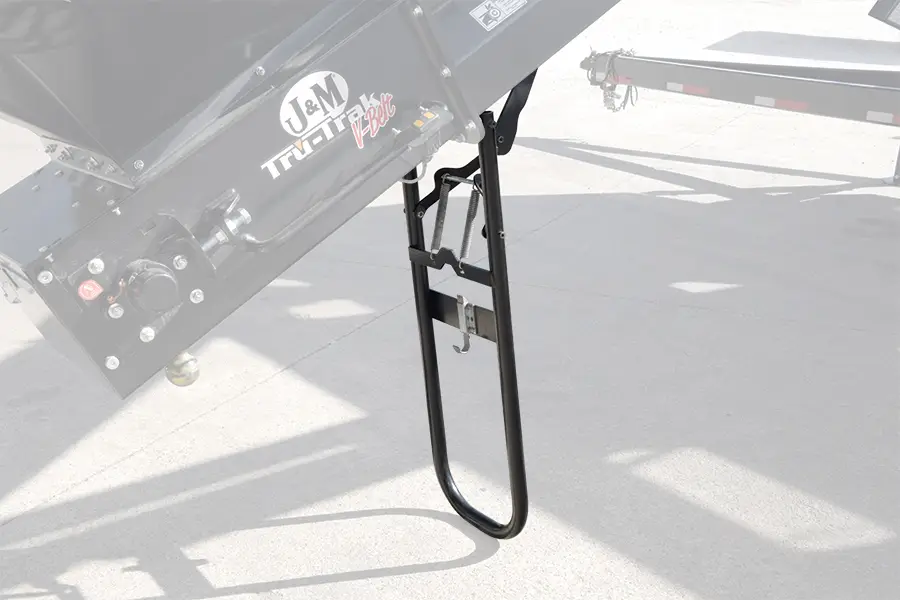

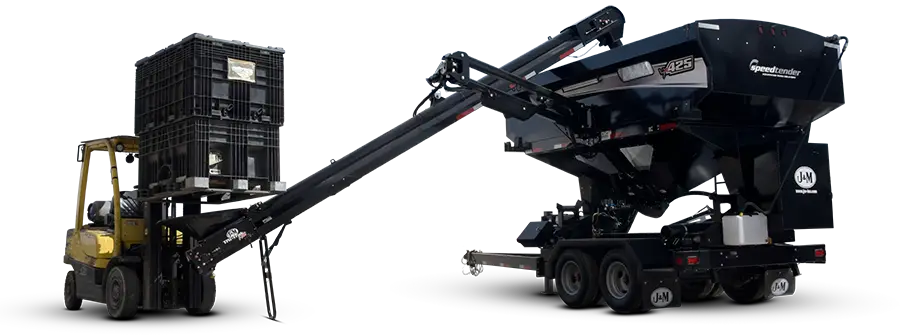

- Improved spring-loaded locking kick stand for easy self-filling
- Added side inlet brushes for improved seed protection
- Heavy duty rack and pinion with easy tensioning for conveyor swing
- Standard 8" diameter - 22' long conveyor
- Optional 10" diameter - 25' long conveyor

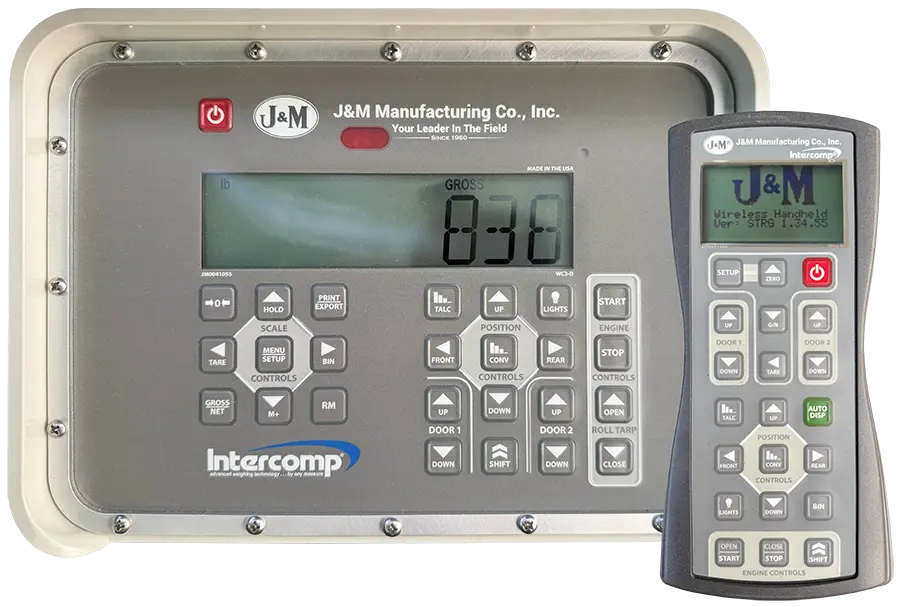

Premium Scale Package - Standard

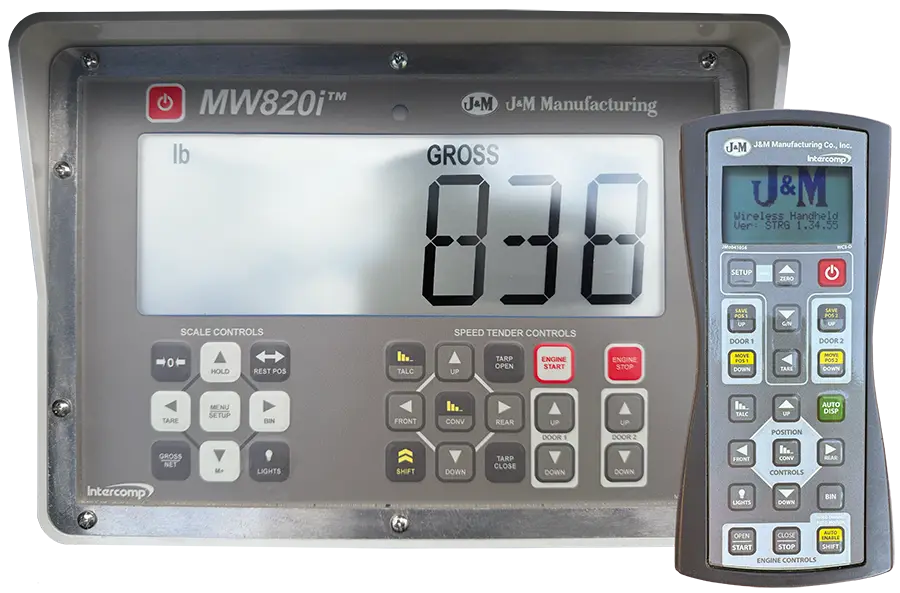

- Factory installed electronic scale package with premium Intercomp controls
- Deluxe wireless remote with LCD screen scale readout
- Auto Conveyor dispense
- Remote conveyor speed control
- Remote engine start/stop

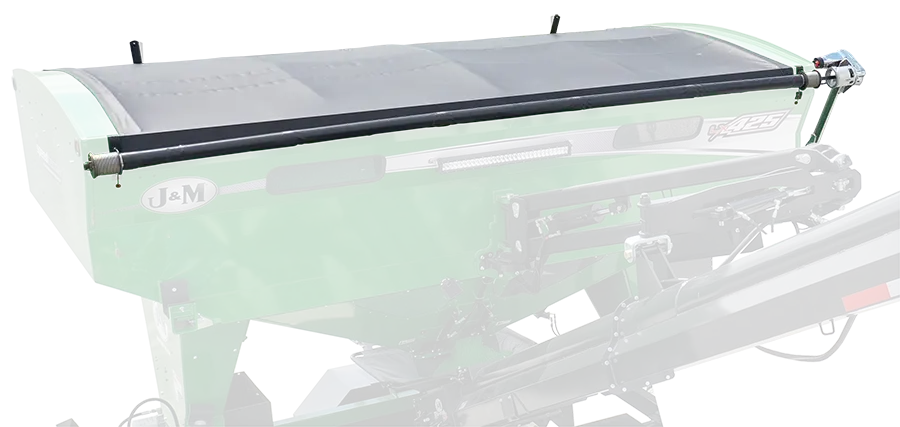

Redesigned Roll Tarp System
- Consistent and smooth rolls
- Self-contained tensioning system
- Streamlined design for a simple, clean look
- Keeps constant tension on the tarp
- Stays on track throughout the rolling process
- Stronger integrated square tubing tarp bows
Chassis
Options
To improve ride quality, the new LX Series Speedtenders have been designed with a stiffer chassis, multiple axle configurations and precise axle placement creating the best possible ride. Choose from a bumper pull or gooseneck frame to fit your operation’s needs.

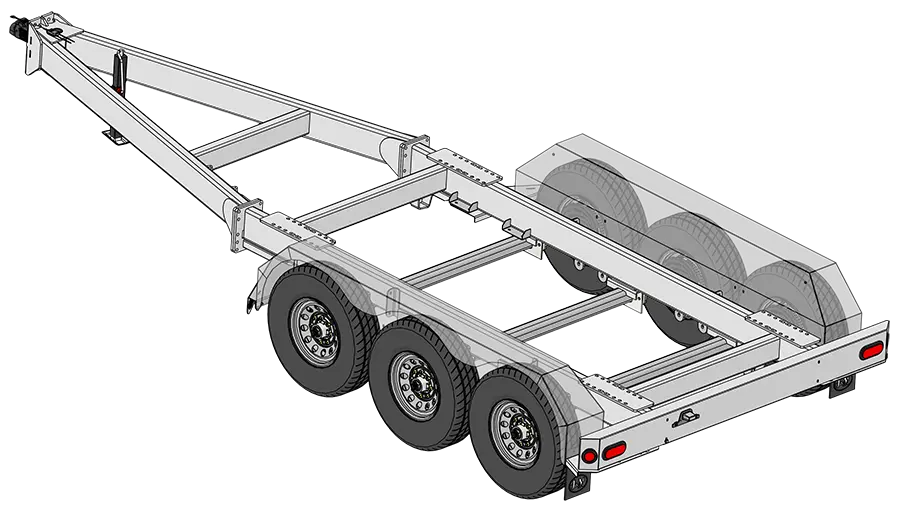

LX390 Standard
Triple 7K single wheel torsion axles

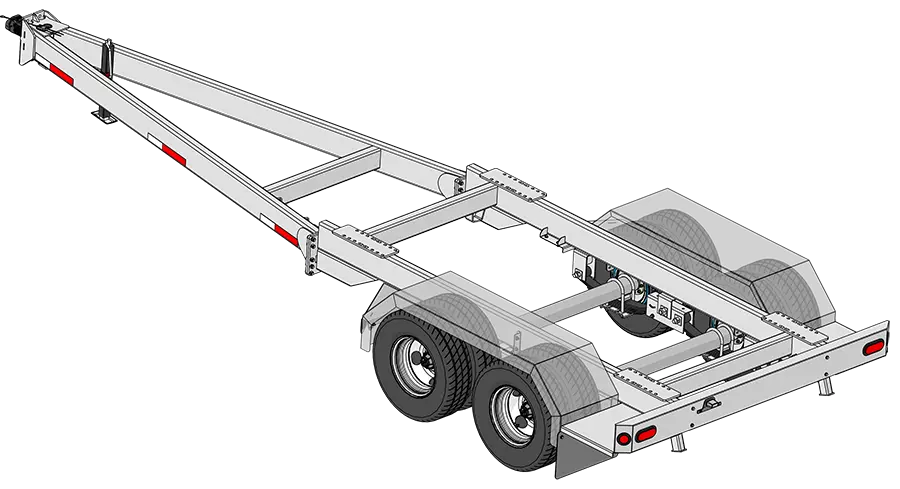

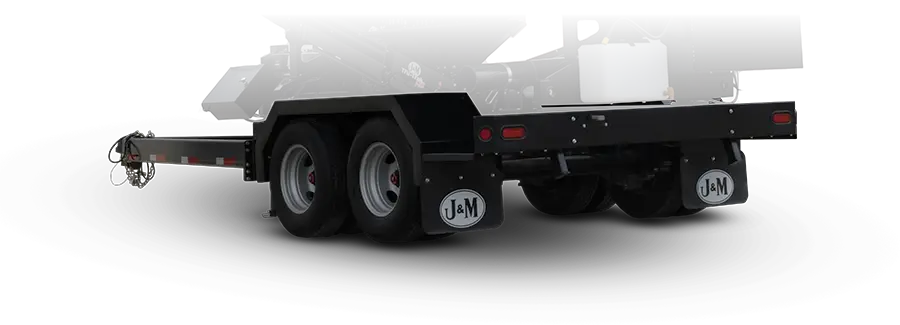

LX425 Standard (LX390 Optional)
12K leaf spring dual wheel tandem axles for improved ride quality
Options
Premium Optional Package
Choose the optional “Premium Package” to unlock some of the greatest features ever offered on any seed tender. A preset conveyor position and auger rest position automatically swings the conveyor with a press of a button from the remote. Save time and energy during the planting season. The battery management system ensures your tender will be ready when you are. The power on/off switch reduces battery drain when not using the tender. The system automatically powers off after not in use for 8 hours. During use, the engine automatically idles up when the battery needs to be charged and during operation to keep the battery charged.
Auto Conveyor Positioning
- Allows the user to save any pre-set conveyor unload position
- Can be returned to the transport position with the press of a button
Boundary Controls
- Factory programmed set of boundaries for the conveyor
- Keep the conveyor from contacting other seed tender components

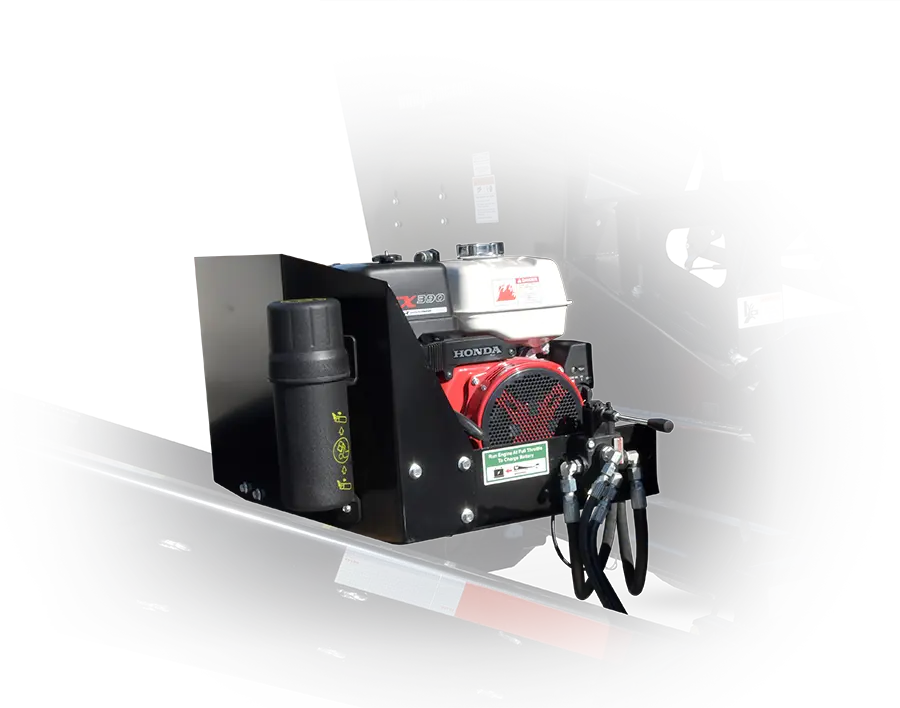

Upgraded Honda iGX Engine
- Automatic engine choke for easy remote starts
- Automatically idles down when not performing a function to save fuel and for quieter operations
- Higher battery charging capacity
Battery Management System
- Power button turns system on and off
- System automatically powers down after 8 hours to maintain battery life
- Surge protection module to save valuable components
Maximum LED Lighting Package
- 30” LED Light Bar Work Light
- Work light above the conveyor to give greater visibility in poor lighting situations
- LED in-tank light
Conveyor Options

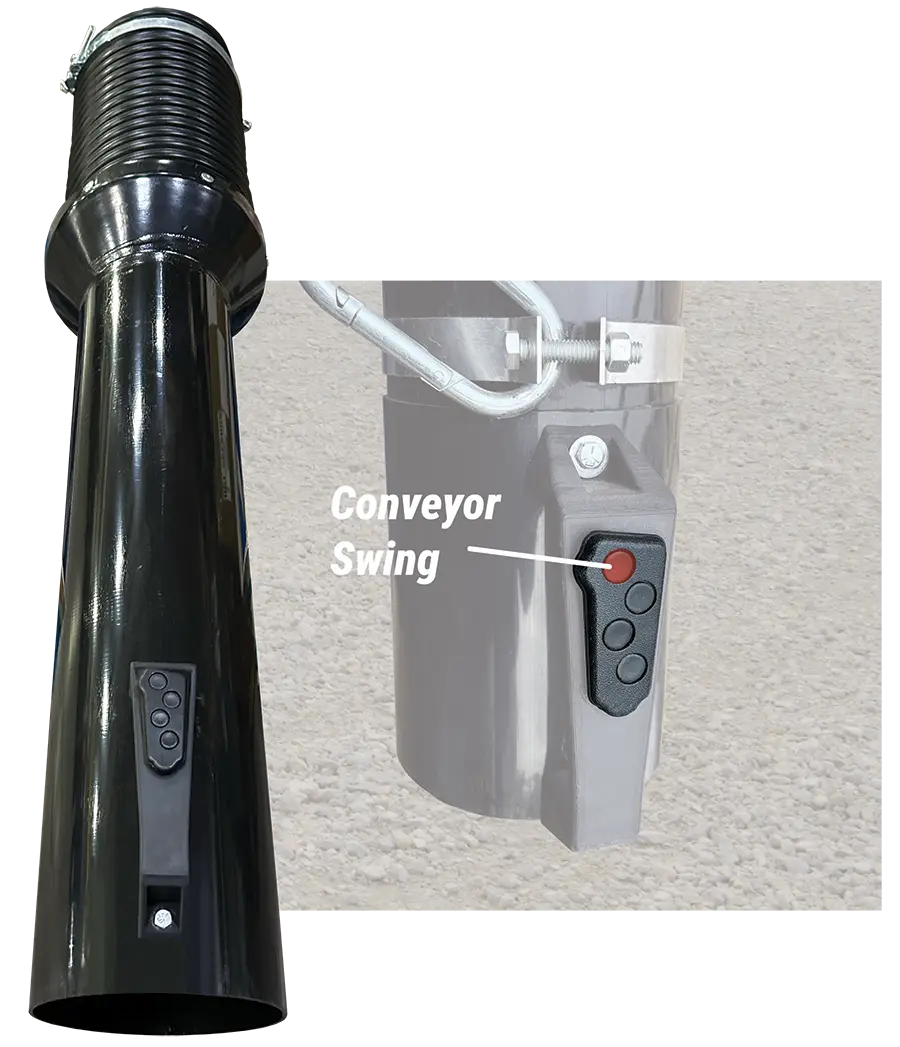

Shadow Spout
The conveyor arm automatically follows the spout's movements, making filling the planter easier than ever.
- When enabled, the conveyor swings to follow the operator for easy filling and conveyor control
- Spout intuitively follows you as you progress from one side of the planter to the other
- No need to manually press buttons to swing the conveyor from side to side
- Spout remote: Press button 1 to swing the conveyor

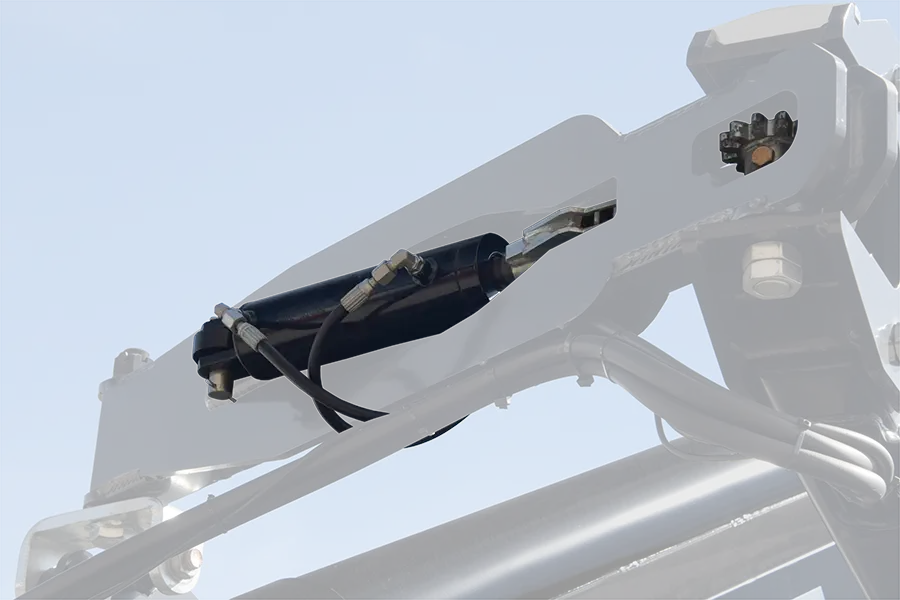

Powered Swivel Arm
Take ultimate control of the conveyor when putting the tender in self-fill mode.
- Hydraulic swivel arm cylinder assists when moving the conveyor in/out of self-fill mode
- The swivel arm cylinder acts as a brake to keep the swivel arm in place

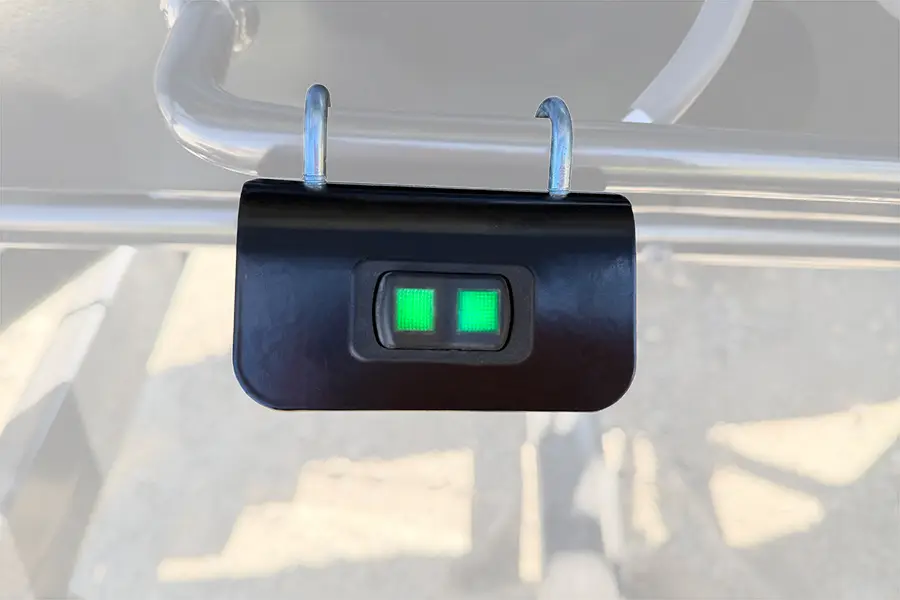

- Buttons conveniently located on the conveyor move the swivel arm cylinder in and out
More Options

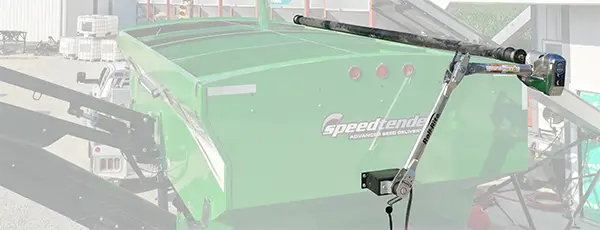

Electric Roll Tarp
Upgrade your Roll Tarp System with an electric control that can be operated manually at the base of the tender. Units with an Intercomp scale and wireless remote can control the electric roll tarp through the Intercomp handheld remote.

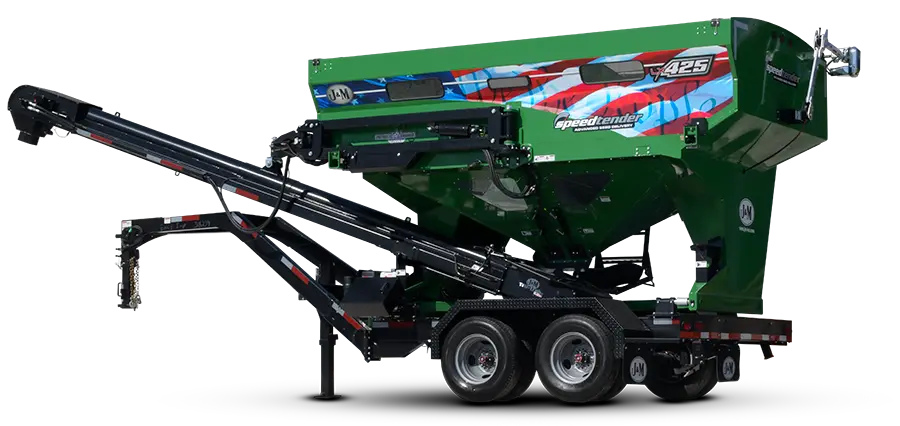

Patriotic Farmer Edition
To honor the patriotism of the American farmer, upgrade to the Patriotic Farmer Edition with an American flag stripe. A portion of the proceeds generated from the American flag decal will be donated to national nonprofit organizations that provide assistance to farm families who have experienced a major injury, illness or disaster, or mobilize veterans to transition them from military service to farming.
Miscellaneous Options
- Choose from A-frame, gooseneck, or trailer mount options to fit your towing vehicle
- Semi-hitch gooseneck mount with platform in place of standard gooseneck
- Hydraulic jack
- 11' telescoping spout
- Vinyl sock for end of telescoping spout
LX Series SpeedTender Specs and Dimensions
| Capacity (total) | Weight (empty) | Weight (loaded) | Tongue Wt. (loaded) | Conveyor | Unload Rate | Conveyor Reach | Axles w/ Electric Brakes | Engine w/ Electric Start | |
|---|---|---|---|---|---|---|---|---|---|
| LX390 | 390 ft3 | 7,470 lbs | 22,567 lbs | 1,567 lbs | 22' Long 8" | 30 Bushels/Min | 49' (front to rear swing) | Three (3), 7,000 lb Torsion-Flex | 13 hp Motor |
| (Gooseneck) | 390 ft3 | 7,850 lbs | 22,947 lbs | 1,867 lbs | 22' Long 8" | 30 Bushels/Min | 49' (front to rear swing) | Three (3), 7,000 lb Torsion-Flex | 13 hp Motor |
| LX390 Duals | 390 ft3 | 7,470 lbs | 22,567 lbs | 1,567 lbs | 22' Long 8" | 30 Bushels/Min | 49' (front to rear swing) | Two (2), 12,000 lb Leaf Springs | 13 hp Motor |
| (Gooseneck) | 390 ft3 | 7,850 lbs | 22,947 lbs | 1,867 lbs | 22' Long 8" | 30 Bushels/Min | 49' (front to rear swing) | Two (2), 12,000 lb Leaf Springs | 13 hp Motor |
| LX425 | 425 ft3 | 8,280 lbs | 25,700 lbs | 1,700 lbs | 22' Long 8" | 30 Bushels/Min | 49' (front to rear swing) | Two (2), 12,000 lb Leaf Springs | 13 hp Motor |
| (Gooseneck) | 425 ft3 | 8,660 lbs | 26,080 lbs | 2,000 lbs | 22' Long 8" | 30 Bushels/Min | 49' (front to rear swing) | Two (2), 12,000 lb Leaf Springs | 13 hp Motor | Measured with soybeans at 140,000 seeds per unit weighing 45 lbs. |

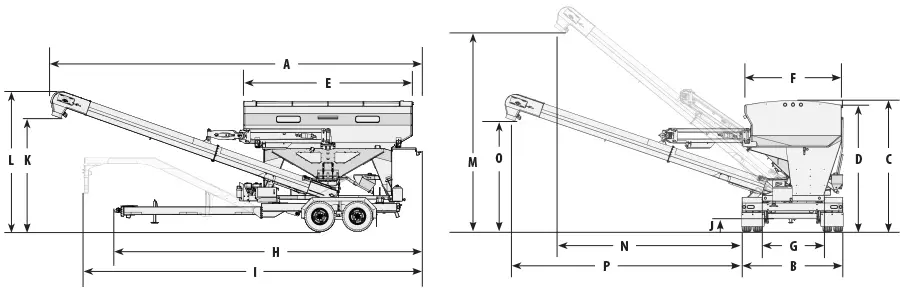

Dimensions
| 22' Conveyor | 25' Conveyor | ||||
|---|---|---|---|---|---|
| Description | Torsion* | Tandems** | Torsion* | Tandems** | |
| A | Overall Length | 339.5" | 339.5" | 376" | 376" |
| B | Overall Width | 102" | 102" | 102" | 102" |
| C | 425 Box Height | N/A | 132" | N/A | 132" |
| C | 390 Box Height | 122" | 127" | 122" | 127" |
| D | 425 Box Sidewall Height | N/A | 126" | N/A | 126" |
| D | 390 Box Sidewall Height | 116" | 121" | 116" | 121" |
| E | Box Length | 170" | 170" | 170" | 170" |
| F | Box Width | 99" | 99" | 99" | 99" |
| G | Box Base Width | 63.5" | 63.5" | 63.5" | 63.5" |
| H | Hitch to Rear (A-Frame) | 282" | 322" | 322" | 322" |
| I | Hitch to Rear (Gooseneck) | 314" | 314" | 346" | 346" |
| J | Undercarriage ground clearance | 9" | 11" | 9" | 11" |
| K | Conveyor in Rest Bottom Height | 97" | 102" | 103" | 108" |
| L | Conveyor in Rest Top Height | 121" | 126" | 130" | 135" |
| M | Max Conveyor Height | 177" | 182" | 197" | 202" |
| N | Max Conveyor Height Reach | 156" | 156" | 186" | 186" |
| O | Max Conveyor Reach Height | 94" | 99" | 102" | 107" |
| P | Max Conveyor Reach | 200" | 200" | 235" | 235" |
| Max Overall Height | 122" | 126" | 130" | 135" | |
| Heights are recorded as loaded. Add 2" in height for unloaded heights | |||||
| *Triple axles with single tires - ** Dual axles with dual tires | |||||
