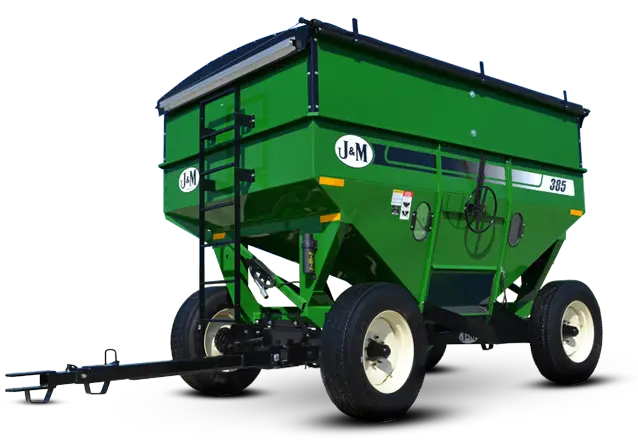

Small Capacity Gravity Wagons • Model 385
Small Capacity Gravity Wagons

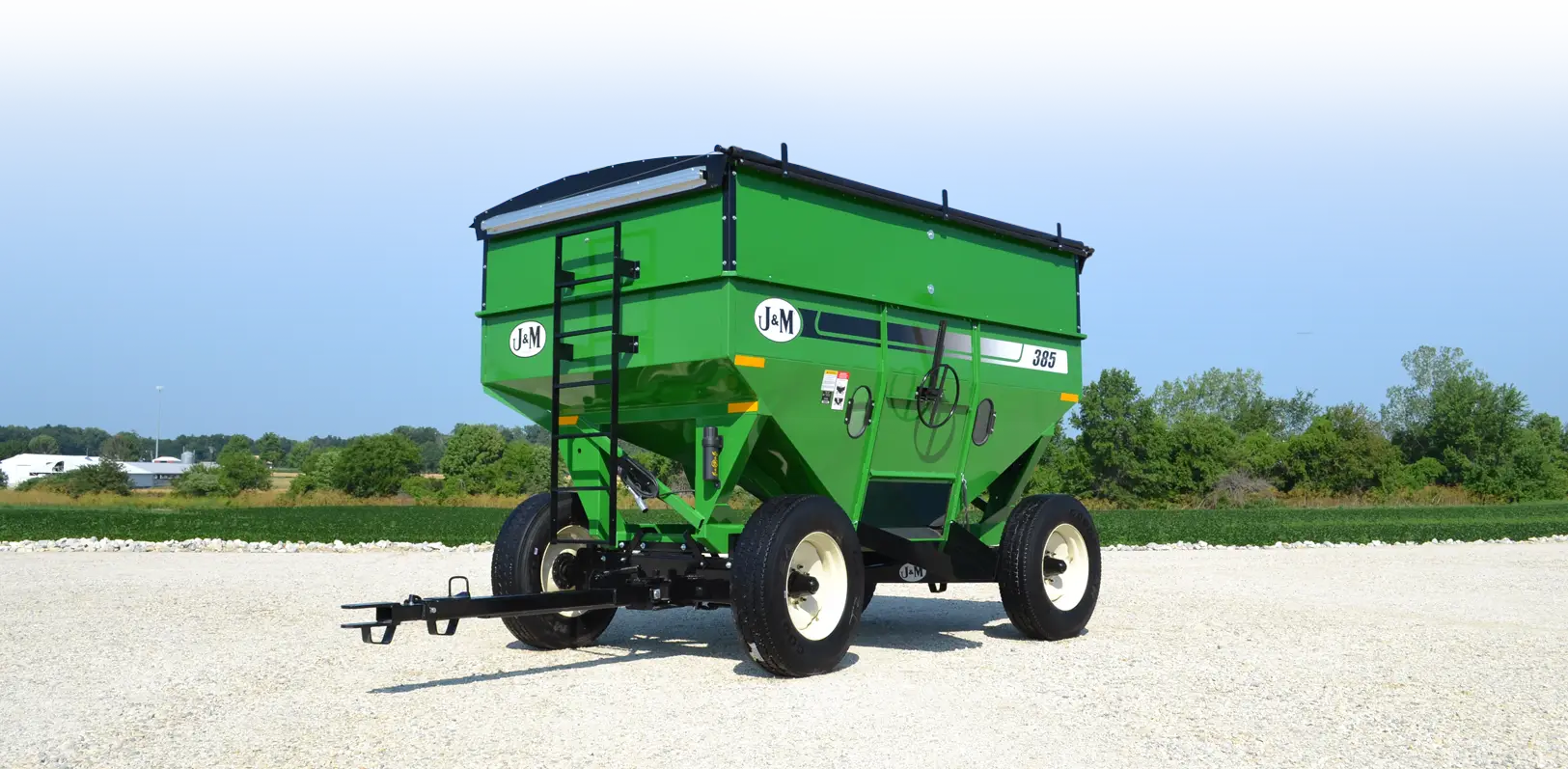

Model 385
Proven Tough for 60 Years
For over six decades and with more than 50,000 wagons sold to date, J&M's small capacity gravity wagons have proven to be well-constructed, reliable and economical wagons.
Sleeved Spindles
-

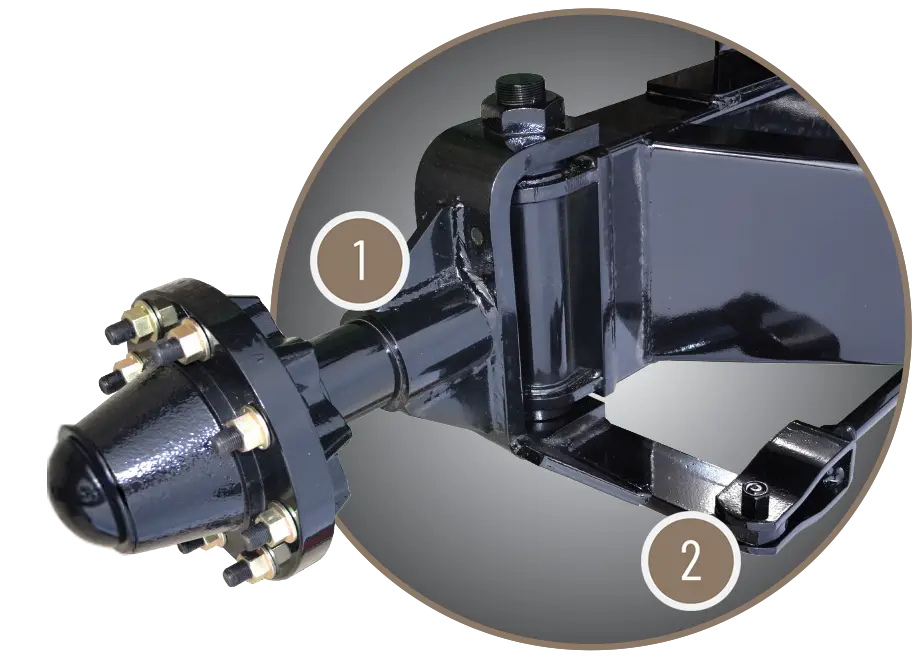

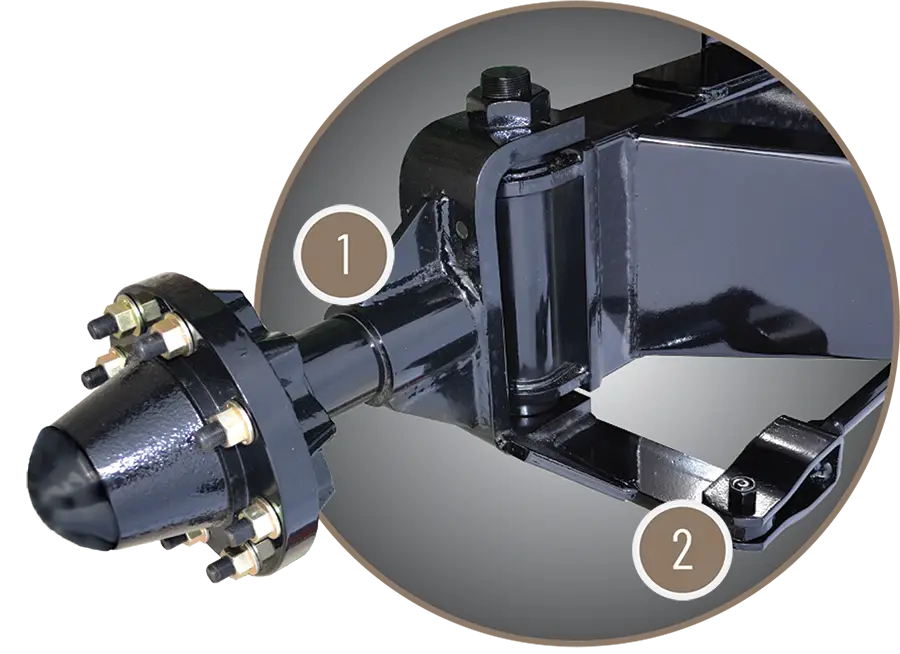

1Sleeved Spindles
For maximum strength, spindles are inserted into heat-shrunk sleeves for welding.
-
2Tie-Rods
Tie-Rods with clevis ends and replaceable bronze bushings make for easy maintenance.
-
1Sleeved Spindles
For maximum strength, spindles are inserted into heat-shrunk sleeves for welding.
-
2Tie-Rods
Tie-Rods with clevis ends and replaceable bronze bushings make for easy maintenance.

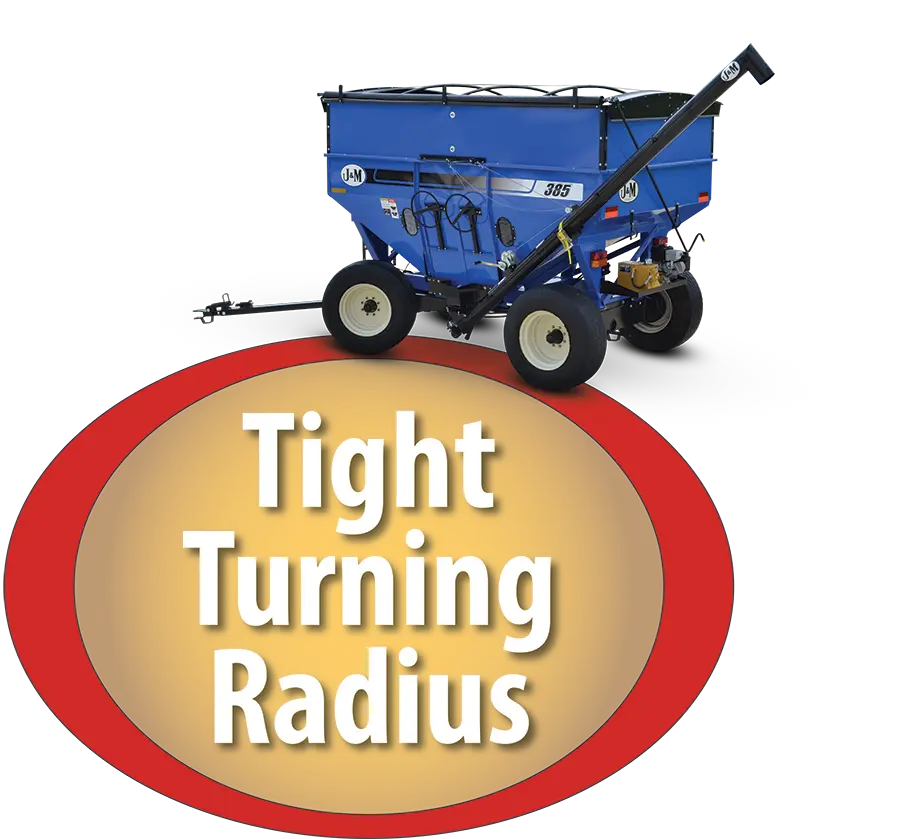

Tight Turning Radius

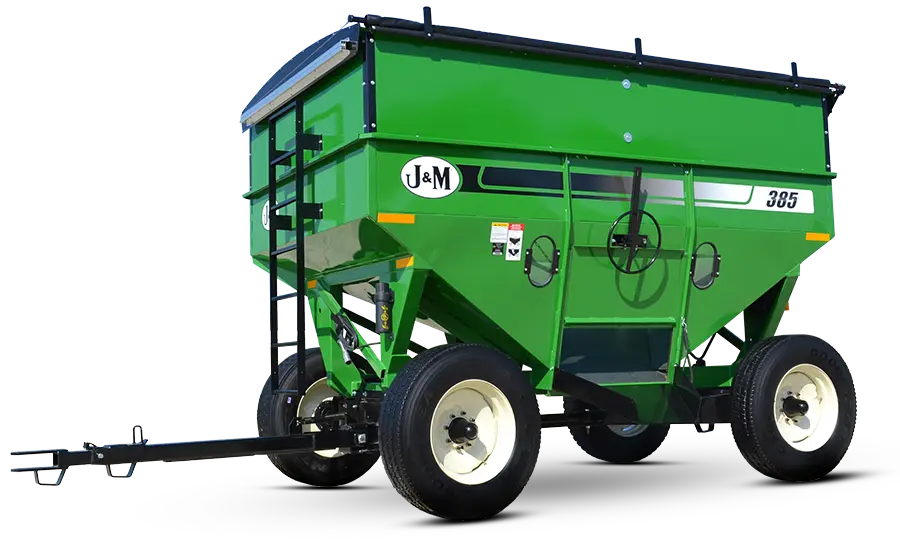

Designed for maximum maneuverability, J&M's model 385 gravity wagons feature a tight turning radius.

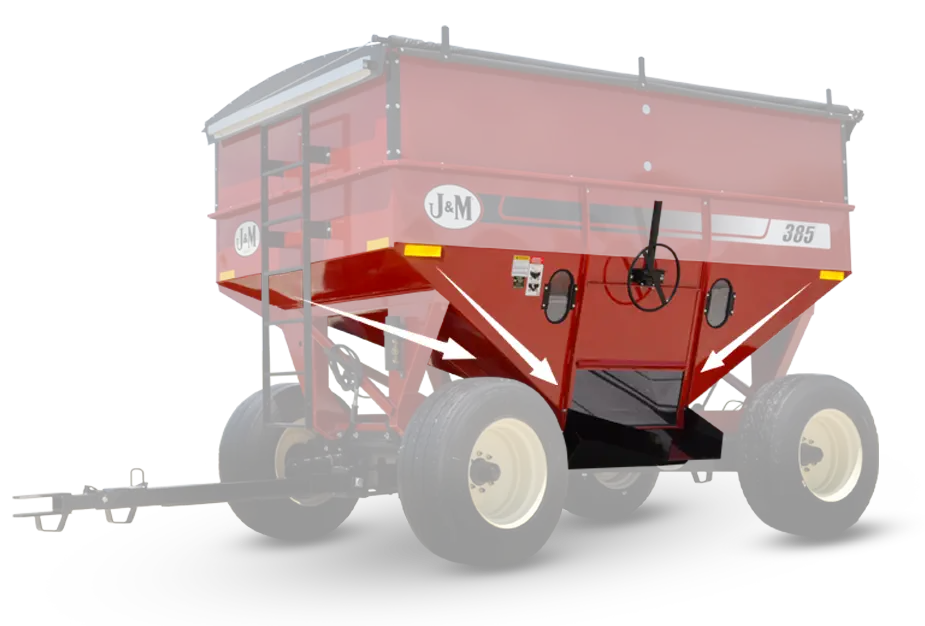

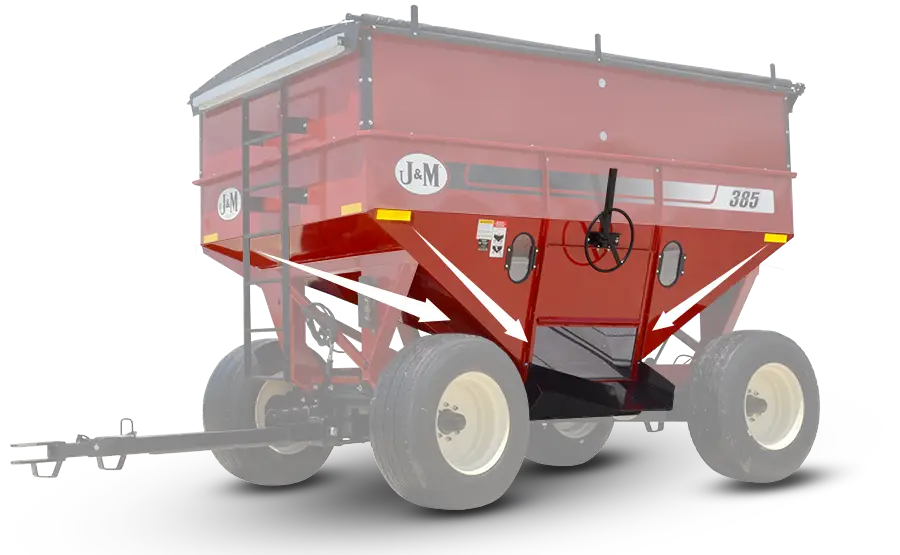

Steeper Slopes
Excellent Cleanout
The 385 gravity wagon has a steep back 27° slope and 35° end slopes to ensure excellent cleanout even in high moisture grain.

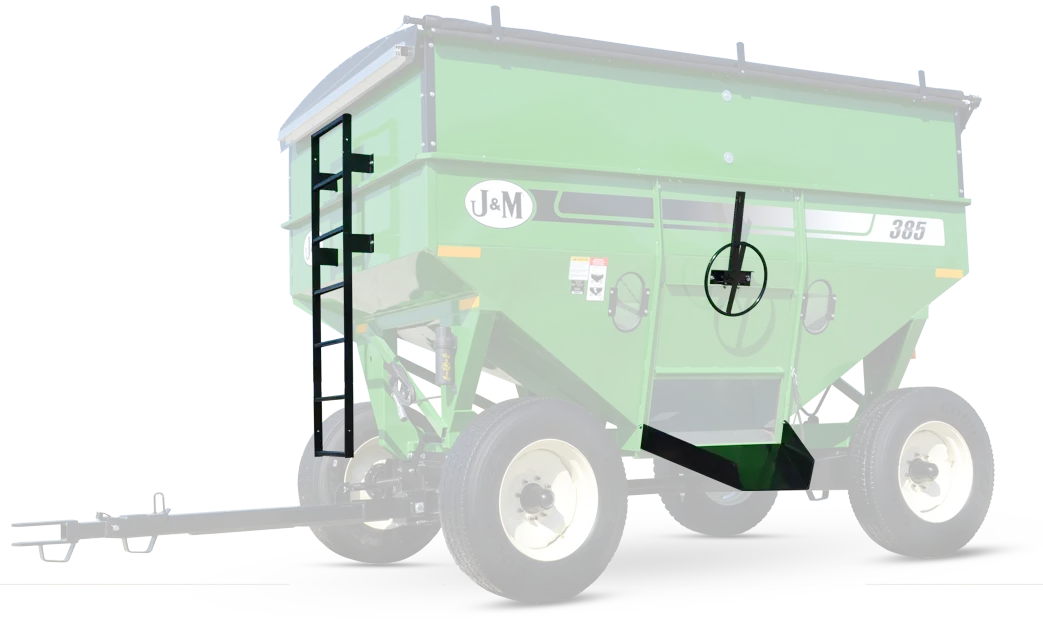

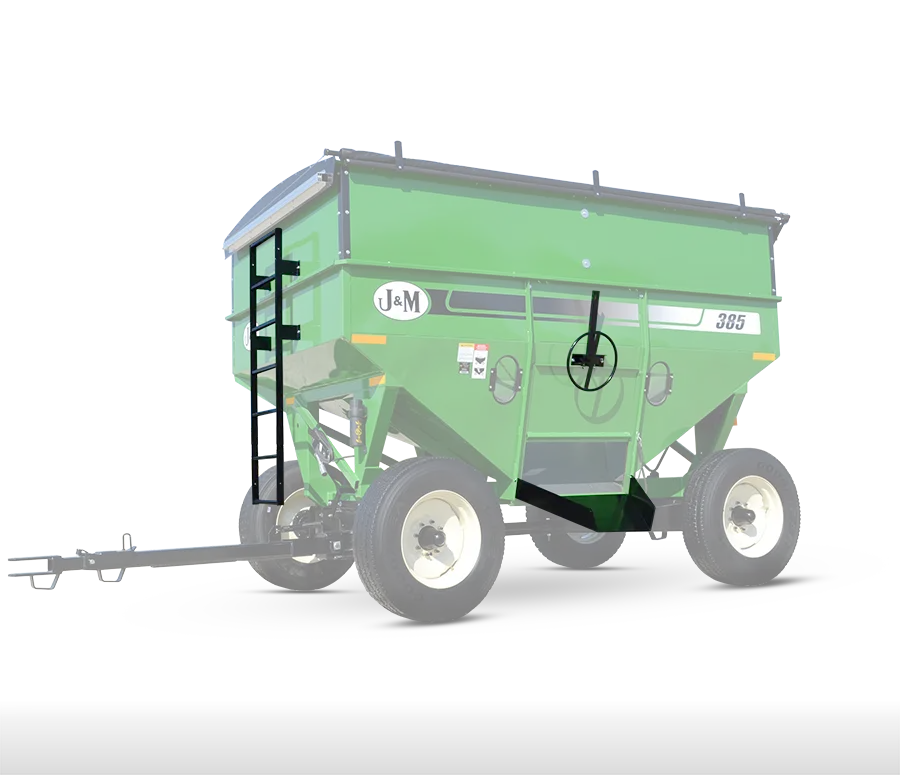

Standard Features
Miscellaneous Features
- Inspection windows
- Light kit with flood light for door
- Ladder
- Side discharge chute
- Rocking bolster assembly

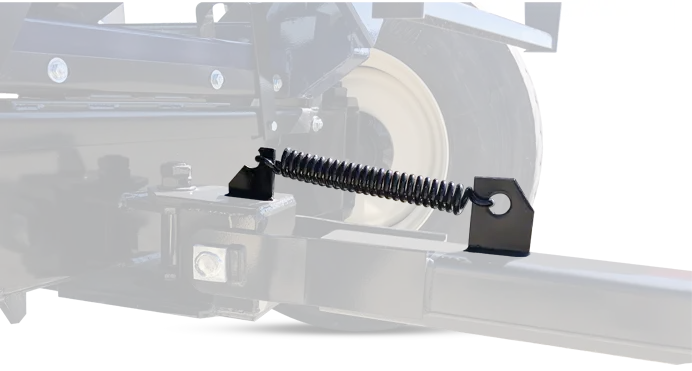

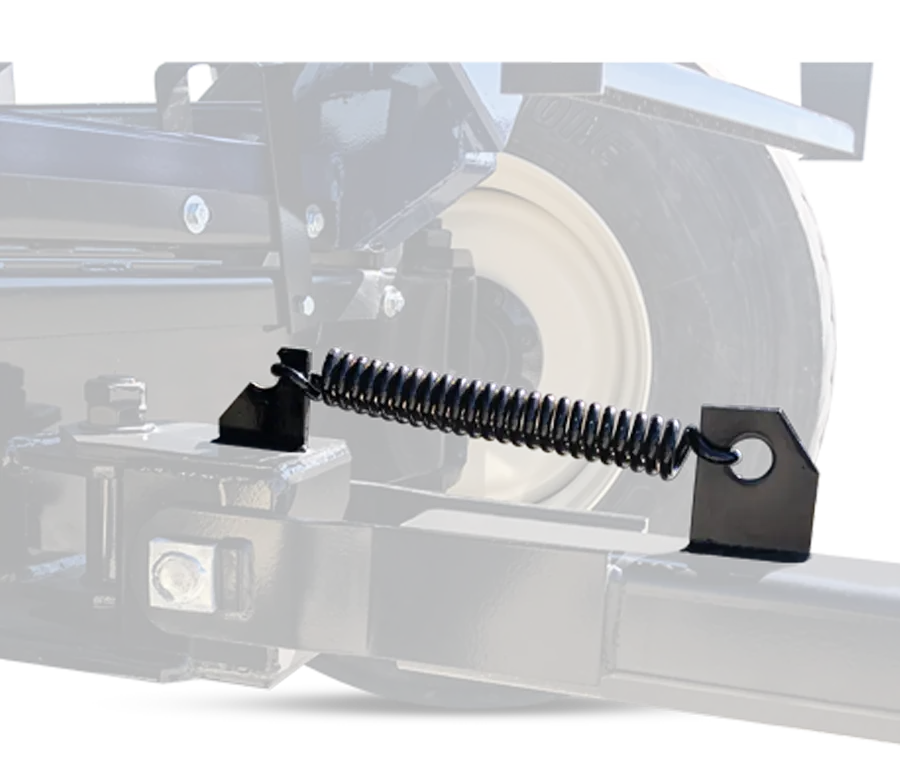

- Spring assist tongue
Miscellaneous Features

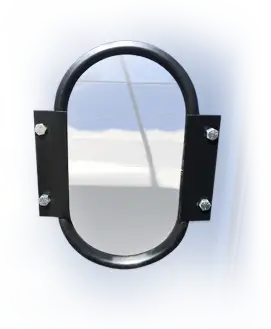

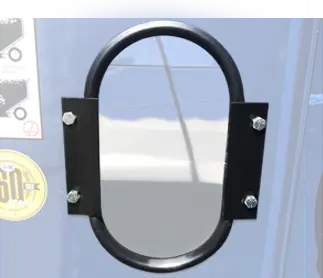

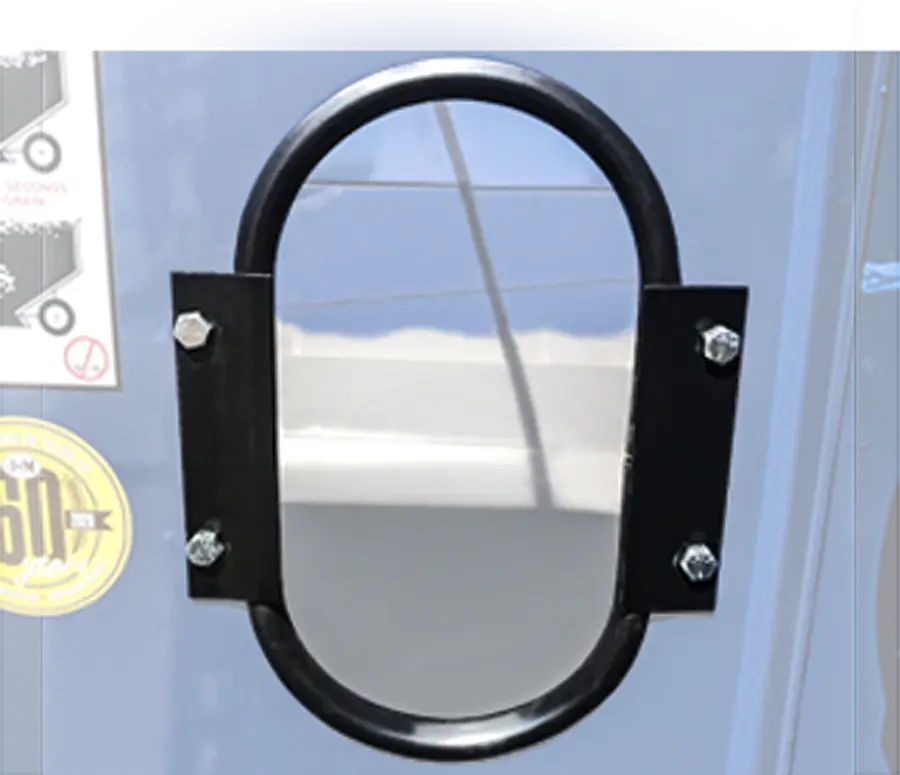

Inspection Windows

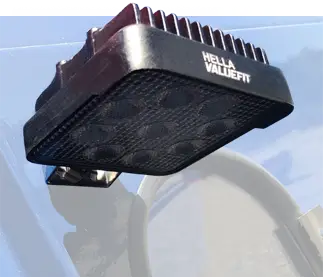

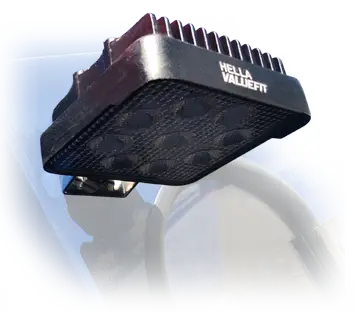

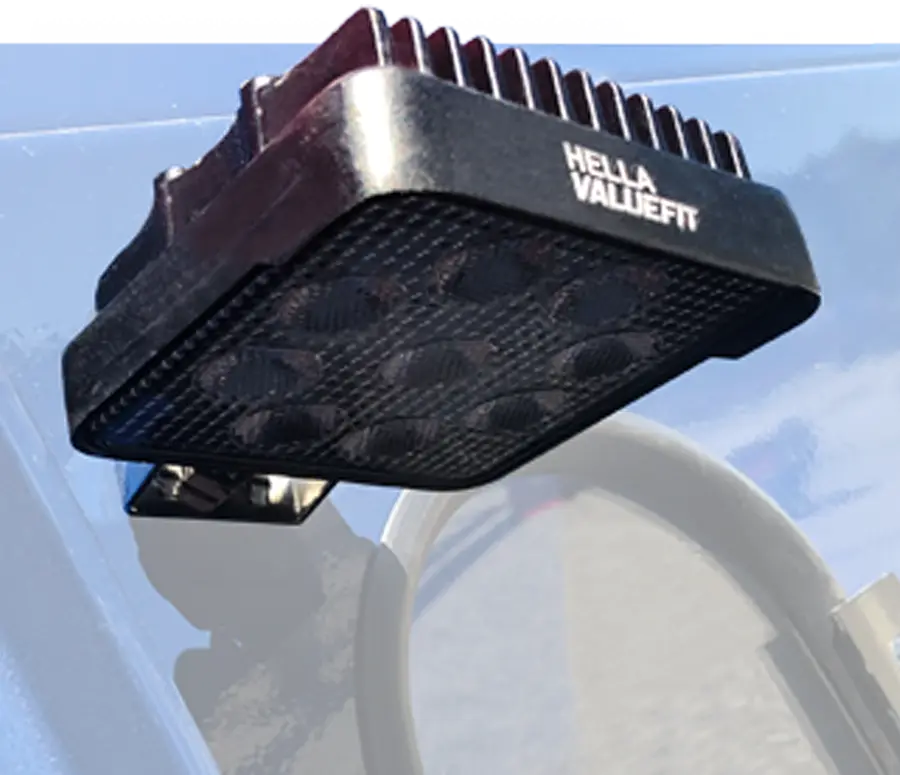

Light Kit with Flood Light for Door

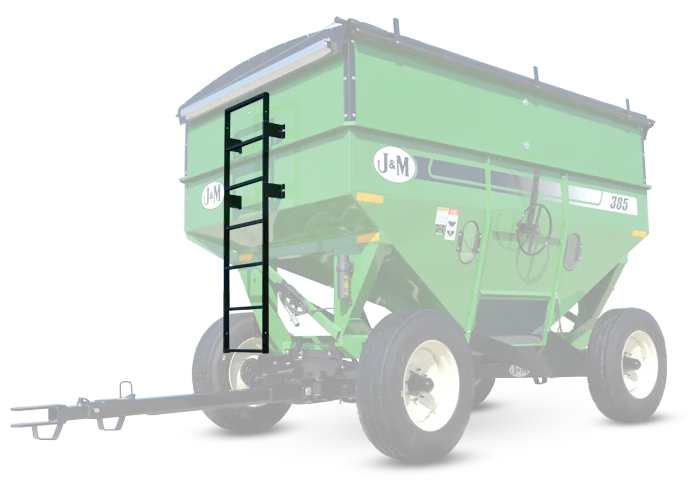

Ladder

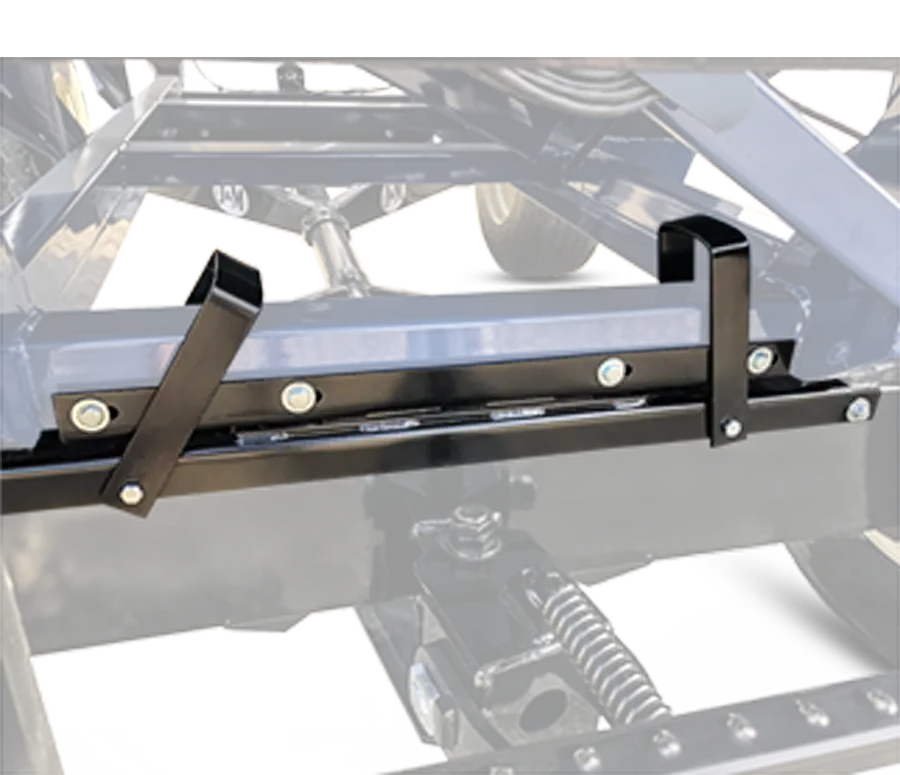

Standard Rocking Bolster
Model 385 Gravity Wagons Options

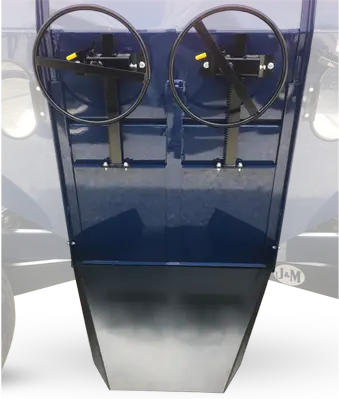

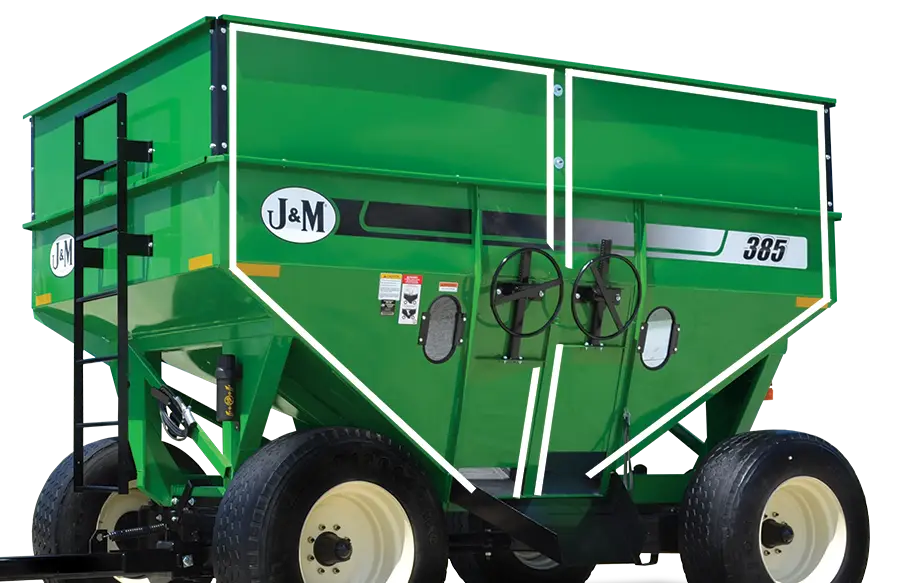

Dual Compartments
Dual compartments and separate positive lock doors for independent operation allow you to keep seed and grain separate.
Hydraulic Drum Brakes
Add optional 2-wheel factory-installed hydraulic drum brakes on the 13-ton running gear.
Patriotic Farmer Edition
To honor the patriotism of the American farmer, upgrade to the Patriotic Farmer Edition with an American flag decal. A portion of the proceeds generated from the American flag decal will be donated to national nonprofit organizations that provide assistance to farm families who have experienced a major injury, illness or disaster, or mobilize veterans to transition them from military service to farming.
Learn more about the Patriotic Farmer Edition

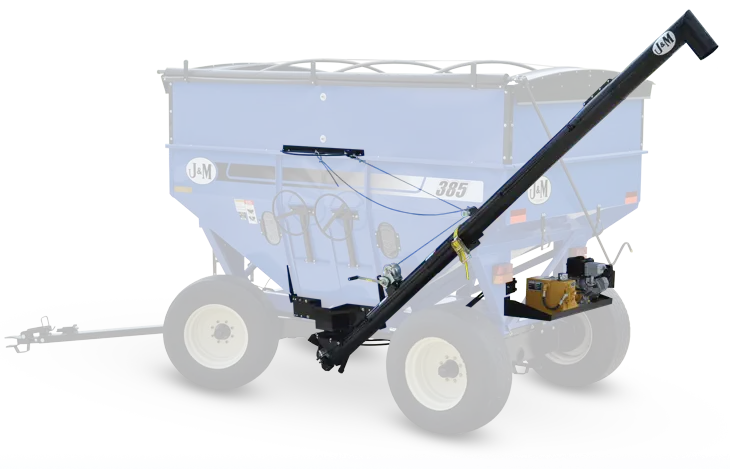

Uni-Swivel Hydraulic Auger
The patented Uni-Swivel hydraulic auger design allows the auger to swivel to any working position while maintaining a downwardly positioned discharge spout. The adjustable hopper can fit virtually any door size. Unique pulley and track stabilizer design allows the auger to stay in position and not pull to center.
More Options
- Choice of durable red, green, black, and blue urethane exterior finish
- Metering door in place of regular door
- Heavy duty roll tarp
- Right hand dump

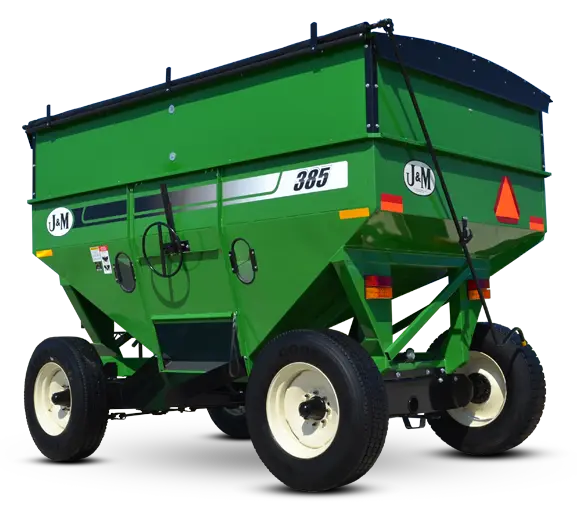

SpeedTender™ Pro Series Specs and Dimensions
SPECIFICATIONS
| 385 Gravity Wagon | |
|---|---|
| Tank Capacity | 385 Bushels |
| Door Width | 36" |
| Chute Height | 17" |
| Hopper Steel | 14 Gauge |
| Understructure Runners | 3" x 6" |

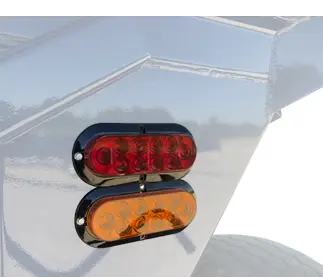

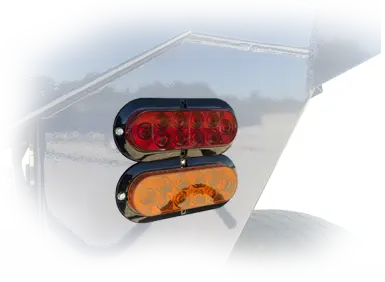

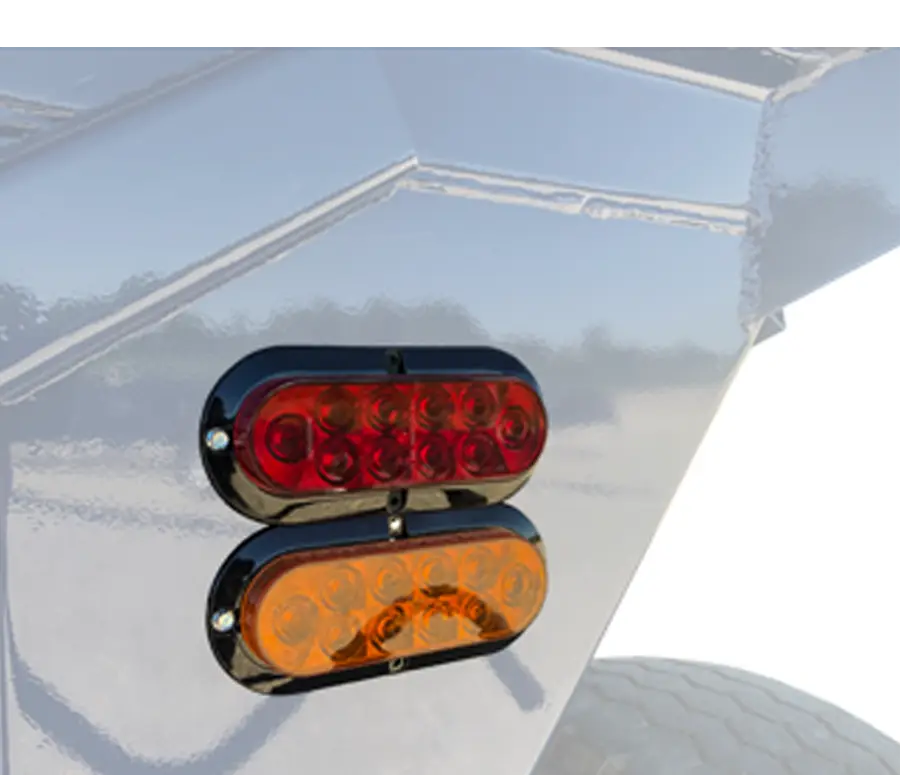

| LED Taillights | Standard |
| Front Ladder | Standard |
| Center Dump Deflector | Optional |
| Running Gear Capacity | 13 Ton |
| Spindles Diameter | 2½" |
| Wheels | 22.5 × 8.25–8 Bolt or 22.5 × 13.5–8 Bolt |
| Tires | 11–22.5 or 15–22.5 |
| Optional Hydraulic Brakes | 2-Wheel Drum |
| Weight | 3,640 lbs |
DIMENSIONS
| 385 Gravity Wagon | |
|---|---|
| A | 12'-4" |
| B | 7'-2" |
| C | 9'-2" |
| D | 6'-10" |
| E | 8'-7" |
| F | 7'-10" |
| G | 17'-11" |
| H | 1'-3" |
